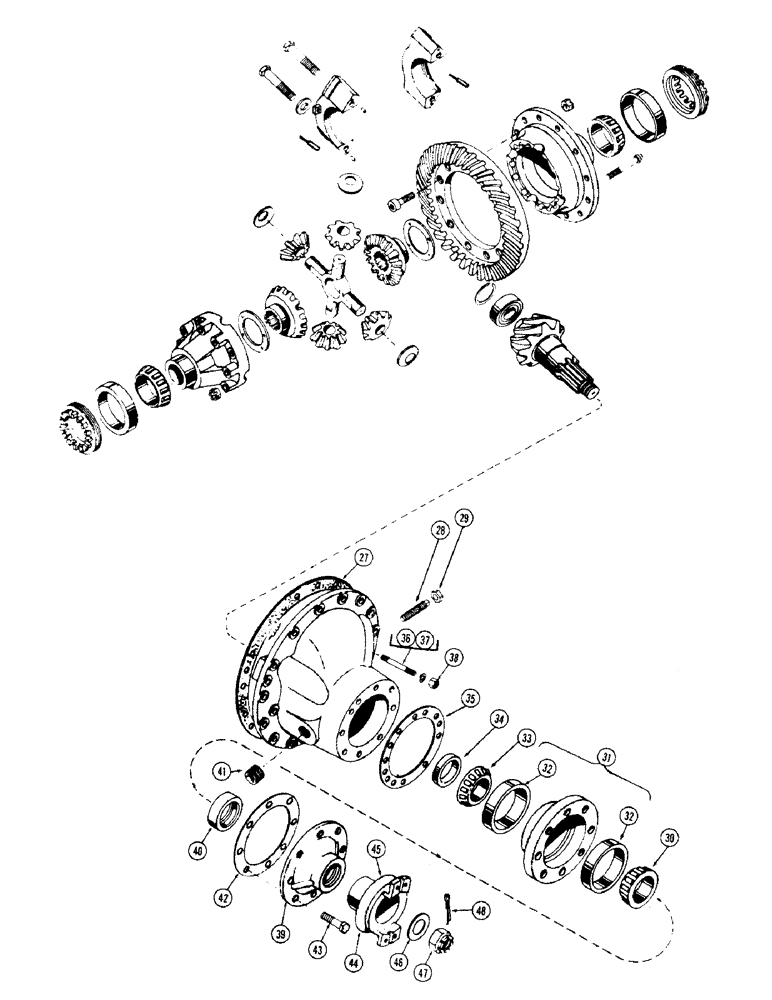

Запчасти Case IH 1470 (105A) - T38963 FRONT AXLE DIFFERENTIAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
T39439
DIFFERENTIAL ASSY. - front axle, Includes: Ref. 27 - 48
1шт.
27
A15460
GASKET
- carrier to axle housing
1шт.
28
L31659
BOLT,7/8" x 3 5/8"
SCREW - drive gear thrust
1шт.
29
A15428
NUT
- drive screw
1шт.
30
A15435
ROLLER BEARING,2.125" ID x 1.3085"
BEARING - cone, inner
1шт.
31
A15468
CAGE
ASSY. - pinion bearing, Includes: Ref. 32
1шт.
32
A15437
BEARING, CUP,63.525 mm ID x 140.055 mm OD x 23.52, 36.71 mm
CUP - cone brg., inner & outer
2шт.
33
A15436
ROLLER BEARING,2.25" ID x 1.3085"
BEARING - cone, pinion inner
1шт.
34
A15448
SPACER
- pinion bearing (.220)
1шт.
34
A15449
SPACER
- pinion bearing (.221)
1шт.
34
A15450
SPACER
- pinion bearing (.222)
1шт.
34
A15451
SPACER
- pinion bearing (.223)
1шт.
34
A15452
SPACER
- pinion bearing (.224)
1шт.
34
A15453
SPACER
- pinion bearing (.225)
1шт.
34
A15454
SPACER
- pinion bearing (.231)
1шт.
34
A15455
SPACER
- pinion bearing (.237)
1шт.
34
A15456
SPACER
- pinion bearing (.243)
1шт.
34
A15457
SPACER
- pinion bearing (.249)
1шт.
34
A15458
SPACER - pinion bearing
1шт.
35
A15445
SHIM
- pinion bearing cage (.005)
1шт.
35
A15446
SHIM
- pinion bearing cage (.010)
1шт.
35
A15459
SHIM
- pinion bearing cage (.003)
1шт.
36
L30676
STUD
- carrier to axle housing (Short)
10шт.
37
L30677
STUD
- carrier to axle housing (Long)
4шт.
38
131-60
LOCK NUT,5/8"-18
NUT - hex., 5/8" N.F.
14шт.
39
A15470
COVER
ASSY. - pinion bearing, Includes: Ref. 40
1шт.
40
T39338
OIL SEAL
- oil pinion bearing cover
1шт.
41
221-25
PLUG,Sq Soc, 3/4"-14 NPTF
- pipe, 3/4" sq. hd.
1шт.
42
A15461
GASKET
- pinion bearing cover
1шт.
43
113-404
CAPSCREW
BOLT - hex. hd. 1/2 x 1-1/2" N.C. (Gr. 8)
8шт.
44
L31606
JAW
YOKE - companion assy., Includes: Ref. 45
1шт.
45
A15464
SLINGER
- oil, companion yoke
1шт.
46
A15441
WASHER
- companion yoke nut
1шт.
47
D46765
LOCK NUT
NUT - companion yoke
1шт.
48
132-58
COTTER PIN
PIN - cotter, 1/8" x 2-1/4"
1шт.
Выбрано товаров: 35
