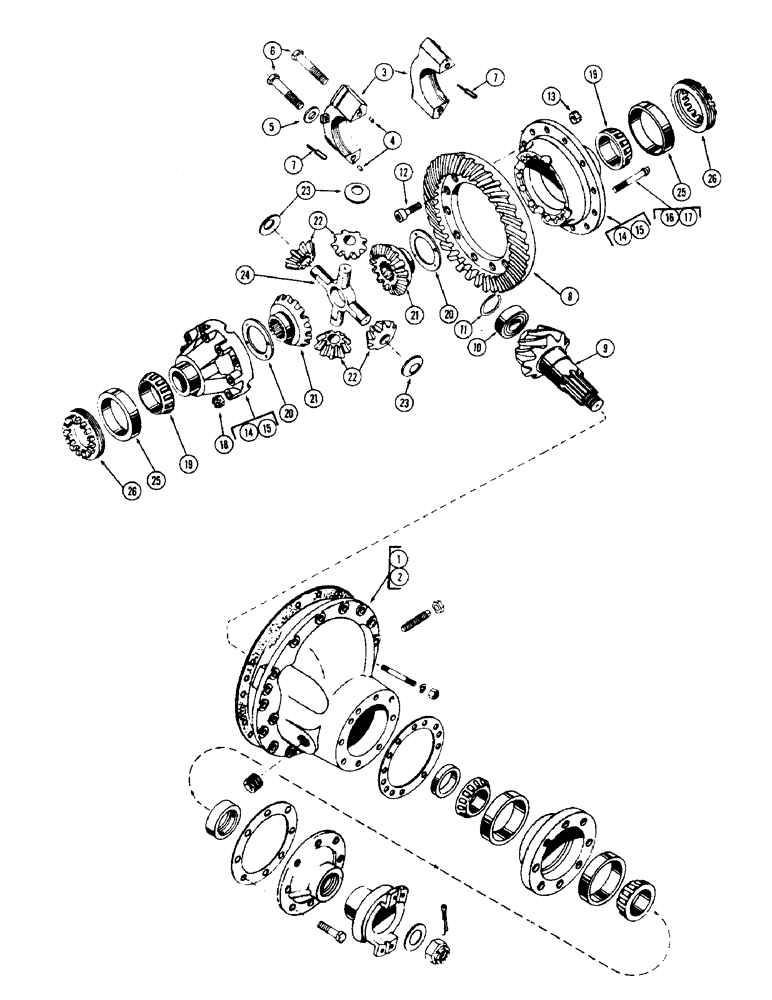

Запчасти Case IH 1470 (104) - T38963 FRONT AXLE DIFFERENTIAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
T39439
DIFFERENTIAL ASSY. - front axle, Includes: Ref. 1 - 26
1шт.
1
L31600
CARRIER
ASSY. - differential
1шт.
2
NSS
NOT SOLD SEPARAT
CARRIER - differential (Order Ref. 1), Includes: Ref. 3 - 7
1шт.
3
NSS
NOT SOLD SEPARAT
CAP ASSY. - brg. differential (Order Ref. 1), Includes: Ref. 4
2шт.
4
A15443
DOWEL
- bearing cap locating
2шт.
5
A16782
WASHER
- differential cap bolt
4шт.
6
A16781
SCREW,7/8" - 9 x 5 1/2", Gr 8
BOLT -, Serial Range: cap-carrier
4шт.
7
A18196
HARDWARE
PIN - cotter, diff brg. adj. ring lock
2шт.
8
T39438
RING GEAR
GEAR & PINION ASSY. - notched diff., Includes: Ref. 8 - 13
1шт.
8
NSS
NOT SOLD SEPARAT
GEAR - ring (Order T39438)
1шт.
9
NSS
NOT SOLD SEPARAT
PINION & BEARING ASSY. - (Order T39438), Includes: Ref. 9 - 13
1шт.
9
NSS
NOT SOLD SEPARAT
PINION - (Order T39438)
1шт.
10
A15438
BALL BEARING,1.378" ID x 3.1436" OD x 0.8868"
BEARING - rear, drive pinion
1шт.
11
A15442
LOCK
RING - lock
1шт.
12
L34059
BOLT
- case to gear (1st used '73 prod.)
12шт.
12
A16438
BOLT
- case to gear (Used prior to '73 prod.)
12шт.
13
131-1137
NUT,5/8"-11, GC
- case to gear (1st used '73 prod.)
12шт.
13
129-283
NUT
- case to gear (Used prior to '73 prod.)
12шт.
14
A15469
DIFFERENTIAL ASSY
CASE ASSY. - differential (Order L32865), Includes: Ref. 15 - 24
1шт.
15
L31604
CASE SET - matched, differential
1шт.
16
A15429
BOLT
- diff. case halves (1/2" N.F. long)
8шт.
17
A15430
BOLT
- diff. case halves (1/2" N.F. short)
4шт.
18
129-282
SLOTTED NUT
- high hex. slotted, 1/2" N.F.
12шт.
19
A27024
ROLLER BEARING,3.25" ID x 1.3125"
CONE - bearing, differential case
2шт.
20
A15439
WASHER
- thrust, side gear
2шт.
21
A15463
GEAR
- differential, side
2шт.
22
A15462
GEAR
PINION - differential
4шт.
23
A15440
WASHER
- thrust, pinion
4шт.
24
A15471
U-JOINT SPIDER
SPIDER - ring gear pinion
1шт.
25
A15434
CUP
- bearing, differential
2шт.
26
A15465
RING
- adj., case bearing
2шт.
Выбрано товаров: 31
