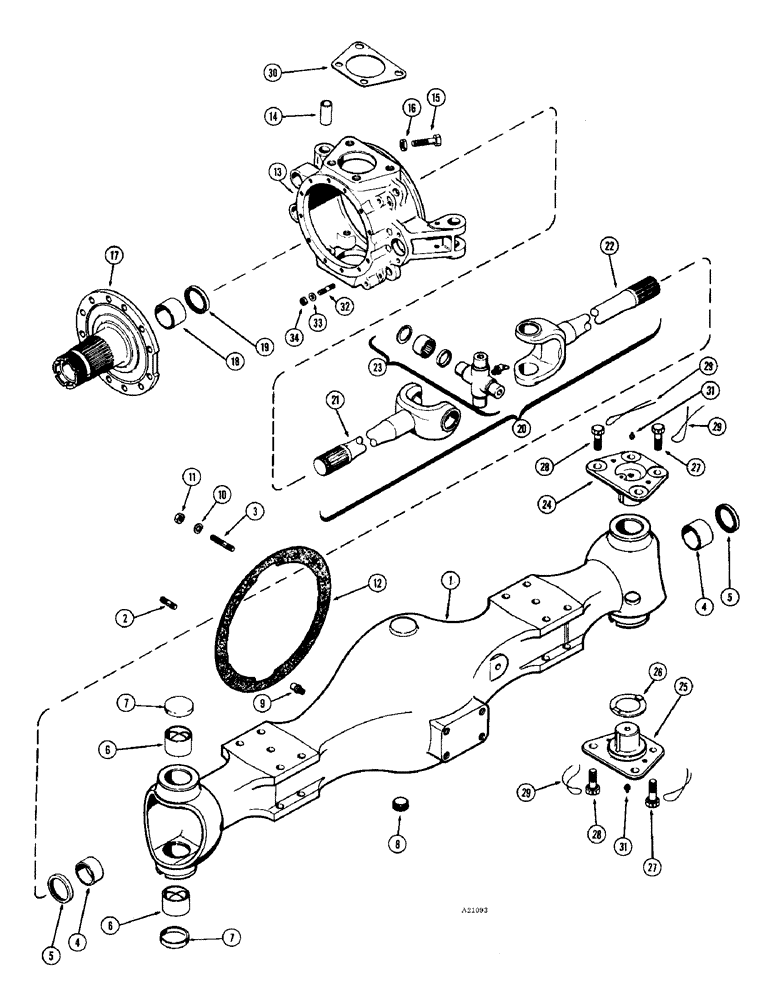

Запчасти Case IH 1470 (102) - T38963 FRONT AXLE HOUSING AND KNUCKLE (06) - POWER TRAIN

1

T39340

HOUSING ASSY. - front axle, Includes: Ref. 2 - 8

1шт.

2

L30676

STUD

- short, Serial Range: carrier-housing

10шт.

3

L30677

STUD

- long, Serial Range: carrier-housing

4шт.

4

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- universal joint & shaft support

2шт.

5

L30578

OIL SEAL

- oil, universal joint & shaft

2шт.

6

L30579

BUSHING,62.94mm ID x 69.32mm OD x 46.74mm L

- steering bearing

4шт.

7

L34009

PLUG

- steering bearing

4шт.

8

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- drain hole, housing

1шт.

9

A12928

BREATHER

- oil, axle housing

1шт.

10

L30678

WASHER

- carrier to housing stud

14шт.

11

131-60

LOCK NUT,5/8"-18

NUT - carrier to housing stud

14шт.

12

A15460

GASKET

-, Serial Range: carrier-housing

1шт.

13

T39333

KNUCKLE - steering

2шт.

14

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod yoke bolt

1шт.

15

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- stop, 5/8" x 2-3/4" hex. hd. gr. 5

2шт.

16

L30570

NUT

- jam, steering stop screw

2шт.

17

L30605

SPINDLE

ASSY. - steering knuckle, Includes: Ref. 17 and 18

2шт.

17

NSS

NOT SOLD SEPARAT

SPINDLE - steering knuckle

1шт.

18

L30581

BUSHING,57.73mm ID x 65.2mm OD x 44.45mm L

- spindle & joint

1шт.

19

L30578

OIL SEAL

- oil, spindle & joint

1шт.

20

T39334

UNIVERSAL JOINT

SHAFT ASSY. - universal joint, Includes: Ref. 21 - 23

2шт.

21

A25149

YOKE

SHAFT - outer, universal joint

1шт.

22

T39342

JOINT

SHAFT - inner, universal joint

1шт.

23

A25151

KIT

- universal spider

1шт.

24

L34050

CAP

- upper, steering knuckle (Replaces L30600)

2шт.

25

L34051

CAP

- lower, steering knuckle (Replaces L30601)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

4шт.

26

L30583

WASHER,63.5mm ID x 85.72mm OD x 5.21mm Thk

- thrust, knuckle bearing

2шт.

27

L30576

BOLT (SPREADER)

BOLT - knuckle cap, outer (3/4 x 2-1/8" N.C. spec.)

8шт.

28

L30571

BOLT (SPREADER)

BOLT - knuckle cap, inner

8шт.

29

NSS

NOT SOLD SEPARAT

WIRE - tie lock

1шт.

30

L30590

SHIM

- knuckle cap (.003")

1шт.

30

L30591

SHIM

- knuckle cap (.005")

1шт.

30

L30592

SHIM

- knuckle cap (.020")

1шт.

31

A50096

VALVE

FITTING - relief, knuckle cap

4шт.

32

L30575

STUD - spindle to steering knuckle

24шт.

33

A15036

WASHER

- spindle to steering knuckle

24шт.

34

A15033

LOCK NUT

- spindle to steering knuckle

24шт.
