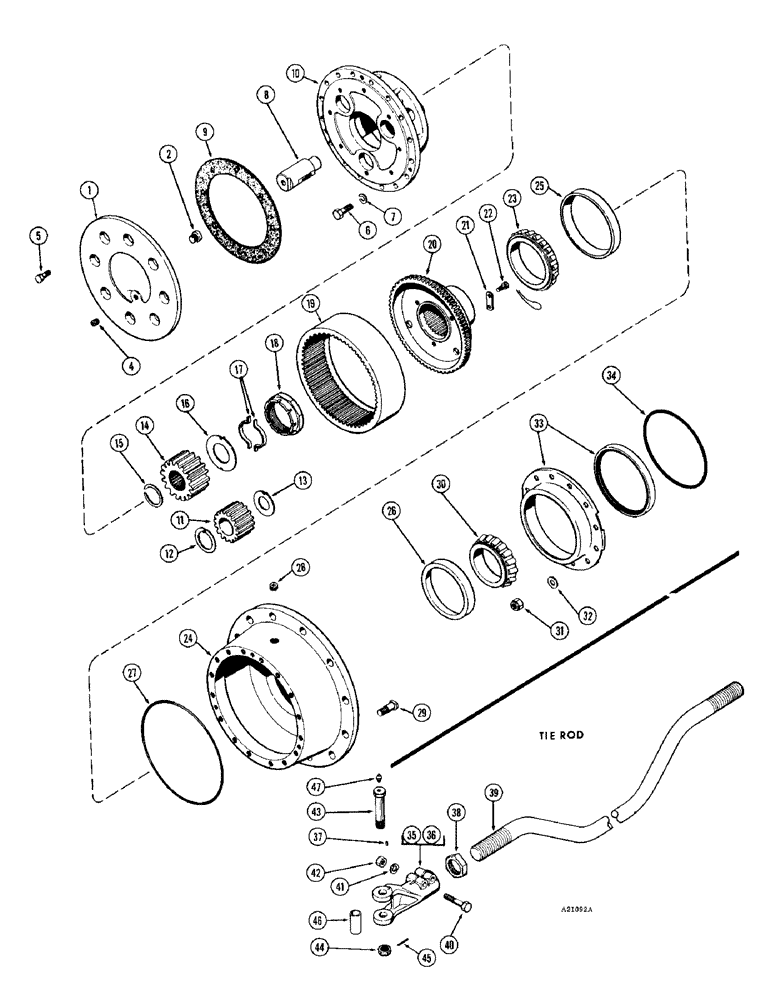

Запчасти Case IH 1470 (100) - T38963 FRONT AXLE PLANETARY (06) - POWER TRAIN

T38963

AXLE ASSY. - frt. steering (Incl. Figures 100-105A), Includes: Ref. 1 - 47

1шт.

1

L34025

COVER ASSY

COVER - planetary spider gear

2шт.

2

A12980

BUTTON

- thrust, drive joint & shaft

2шт.

4

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - oil level, 1/4" P.T. sq. sckt. hd.

2шт.

5

L30675

SCREW

BOLT - planetary cover mounting

16шт.

6

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- spider mtg., 1/2 x 1-5/8" N.C. hex. gr. 8

32шт.

7

92-8

LOCK WASHER,1/2"

32шт.

8

A19885

SHAFT

- planetary pinion

6шт.

9

A14971

GASKET

- planetary, Serial Range: cover-spider

2шт.

10

A14979

U-JOINT SPIDER

SPIDER - planetary gear

2шт.

11

A14977

GEAR

PINION - planetary (16 T)

6шт.

12

A14967

WASHER

- thrust, pinion outer

6шт.

13

A19886

WASHER

- thrust, pinion inner

6шт.

14

A14976

GEAR

- sun, planetary (20 T)

2шт.

15

A14969

RING, SNAP

RING - snap, sun gear

2шт.

16

A14966

WASHER

- thrust, sun gear

2шт.

17

A14970

LOCK ASSY

LOCK - hub bearing nut

4шт.

18

A14965

NUT

- hub bearing

2шт.

19

A14975

GEAR

- ring, planetary (52 T)

2шт.

20

A14978

HUB

- planetary ring gear (w/sleeve)

2шт.

21

A14964

LOCK ASSY

LOCK - ring gear

8шт.

22

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

CAPSCREW - planetary gear lock

16шт.

23

A14960

BEARING

CONE - bearing, hub outer

2шт.

24

L30610

HUB ASSY. - axle planetary

2шт.

24

NSS

NOT SOLD SEPARAT

HUB - axle planetary, Includes: Ref. 25 and 26

2шт.

25

A14961

BEARING CUP

CUP - bearing, outer bearing

1шт.

26

A14985

BEARING CUP

CUP - bearing, inner bearing

1шт.

27

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

"O" RING - spider to hub seal

2шт.

28

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic drain (3/4" P.T. ctsk)

2шт.

29

A13112

STUD

STUD BOLT - wheel hub

24шт.

30

A15020

ROLLER BEARING,4" ID x 1.4219"

CONE - bearing, hub inner

2шт.

31

A15033

LOCK NUT

- oil seal retainer &, Serial Range: spindle-flange

24шт.

32

A15036

WASHER

- retaining nut

24шт.

33

L30577

RETAINER

ASSY. - hub bearing, w/oil seal

2шт.

34

A15025

O-RING,8 3" ID x 9" OD x 1/8"

"O" RING - hub seal retainer

2шт.

NSS

NOT SOLD SEPARAT

ROD ASSY. - tie front axle, Includes: Ref. 35 - 42

1шт.

35

T39331

FORK

YOKE - tie rod (12 thread)

1шт.

36

T39332

FORK

YOKE - tie rod (16 thread)

1шт.

37

A13111

AXLE PIN

PIN - lock, yoke bolt, tie rod

2шт.

38

A13115

LOCK NUT

NUT - tie rod lock R.H.

1шт.

39

L34043

TIE-ROD

ROD - tie (Replaces T39330)

1шт.

40

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- yoke clamp, 1/2" x 2" N.F. hex. hd., tie rod

4шт.

41

92-8

LOCK WASHER,1/2"

tie rod 1/2"

4шт.

42

129-545

NUT,1/2"-20, G8

Yoke bolt, tie rod 1/2"-20, G8

4шт.

43

A13107

BOLT

- tie rod yoke

2шт.

44

A13110

NUT

- tie rod yoke bolt

2шт.

45

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Tie rod 1/8" x 1 1/2"

2шт.

46

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- yoke bolt, tie rod

2шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8", tie rod

2шт.
