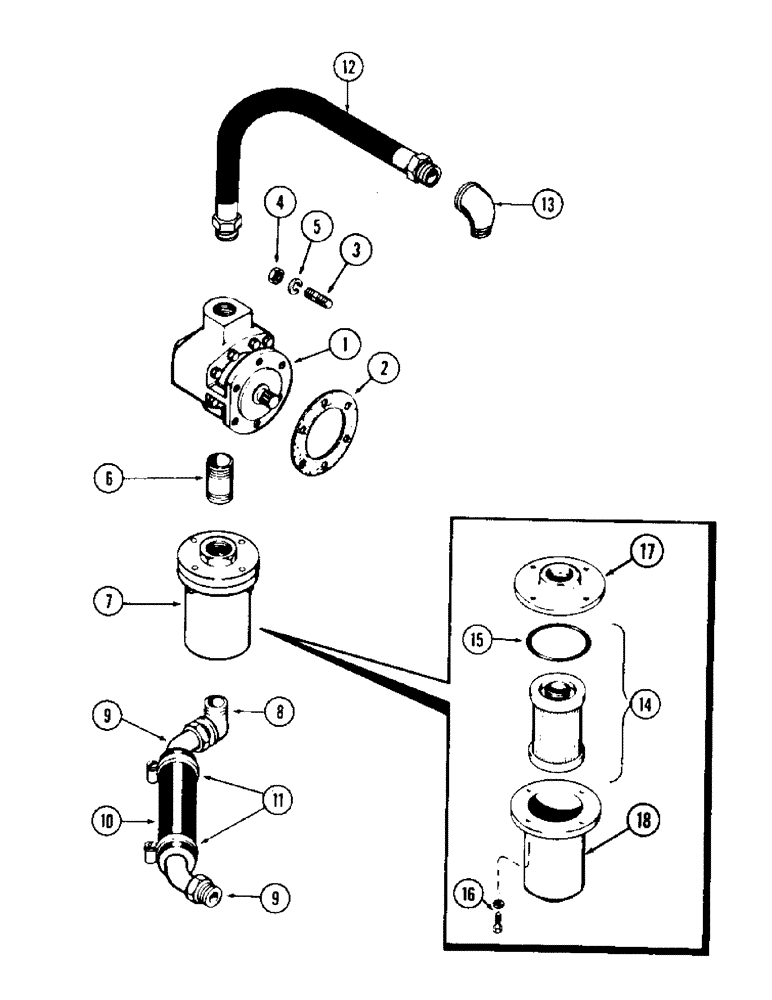

Запчасти Case IH 1470 (094) - TRANSMISSION OIL PUMP AND FILTER SYSTEM (06) - POWER TRAIN

1

L30054

PUMP

ASSY. - oil charging (Repairs Figure 096)

1шт.

2

A18019

GASKET

-, Serial Range: pump-transmission

1шт.

3

A18018

STUD - pump mounting

6шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - filter to pump, 1" x 1-1/2" pipe

1шт.

7

L10123

FILTER ASSY. - transmission oil, outlet

1шт.

8

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- filter inlet 1" pipe x 90 degrees black

1шт.

9

A19630

ELBOW - filter inlet hose, 45 degrees

2шт.

10

L10093

HOSE -, Serial Range: transmission-filter

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose 1-3/16" to 1-3/4"

2шт.

12

T38471

HOSE

-, Serial Range: pump-transmission

1шт.

13

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - street, 1/2" - 90 degrees

1шт.

L10123

FILTER ASSY. - transmission oil, outlet, Includes: Ref. 14 - 18

1шт.

14

L30036

ELEMENT

KIT - filter, outlet oil, Includes: Ref. 15

1шт.

15

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

"O" RING - filter head, outlet oil

1шт.

16

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW - head mtg., 1/4" x 7/8" N.C. flat hd., outlet oil filter

4шт.

17

L30034

HEAD - filter, outlet oil

1шт.

18

L30033

HOUSING - filter, outlet oil

1шт.
