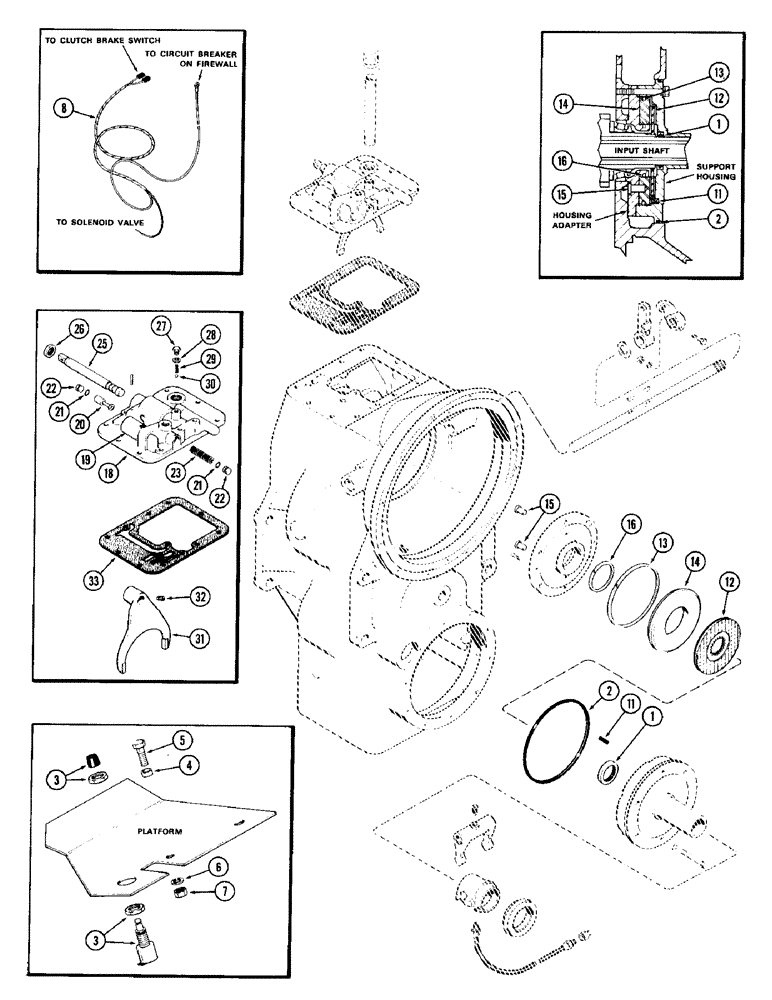

Запчасти Case IH 1470 (085A) - CLUTCH BRAKE KIT (06) - POWER TRAIN

A75081

KIT

ATTACHMENT - clutch brake kit (Mach. item), Includes: Ref. 1 - 33

1шт.

1

A55832

OIL SEAL

SEAL - support housing oil

1шт.

2

A55840

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

"O" RING - support housing

1шт.

3

A75084

SWITCH - clutch brake

1шт.

4

A56472

SPACER

- pedal stop

1шт.

5

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

A75085

HARNESS - clutch brake wire

1шт.

A75082

BRACKET

KIT - clutch brake, Includes: Ref. 11 - 33

1шт.

11

A55833

SPRING

- brake release

4шт.

12

A55834

DISC

- brake

1шт.

13

A55835

RING

- piston outer

1шт.

14

A55836

PISTON

- clutch brake

1шт.

15

A55838

PIN

- piston guide

2шт.

16

A55839

SEALING RING

RING - brake piston inner

1шт.

A75083

COVER

ASSY. - control, Includes: Ref. 18 - 33

1шт.

18

A75087

COVER - control, forward-reverse

1шт.

19

A55872

SOLENOID - valve

1шт.

20

A75089

SPOOL - regulator valve

1шт.

21

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - valve spool plug

2шт.

22

A18038

STOP

PLUG - valve spool

2шт.

23

A75088

SPRING - valve spool

1шт.

24

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

25

A55850

RAIL - speed control

1шт.

26

A55855

OIL SEAL

- oil, control rail

1шт.

27

A55852

PLUG - mesh lock spring

1шт.

28

A33260

WASHER - plug

1шт.

29

A55853

SPRING - mesh lock

1шт.

30

211-12

BALL,7/16 Dia

- mesh, 7/16" dia.

1шт.

31

A55851

FORK - speed control, forward & reverse

1шт.

32

23095

HYDRAULIC HOSE

SCREW - speed control fork lock

1шт.

33

A55875

GASKET

- cover

1шт.
