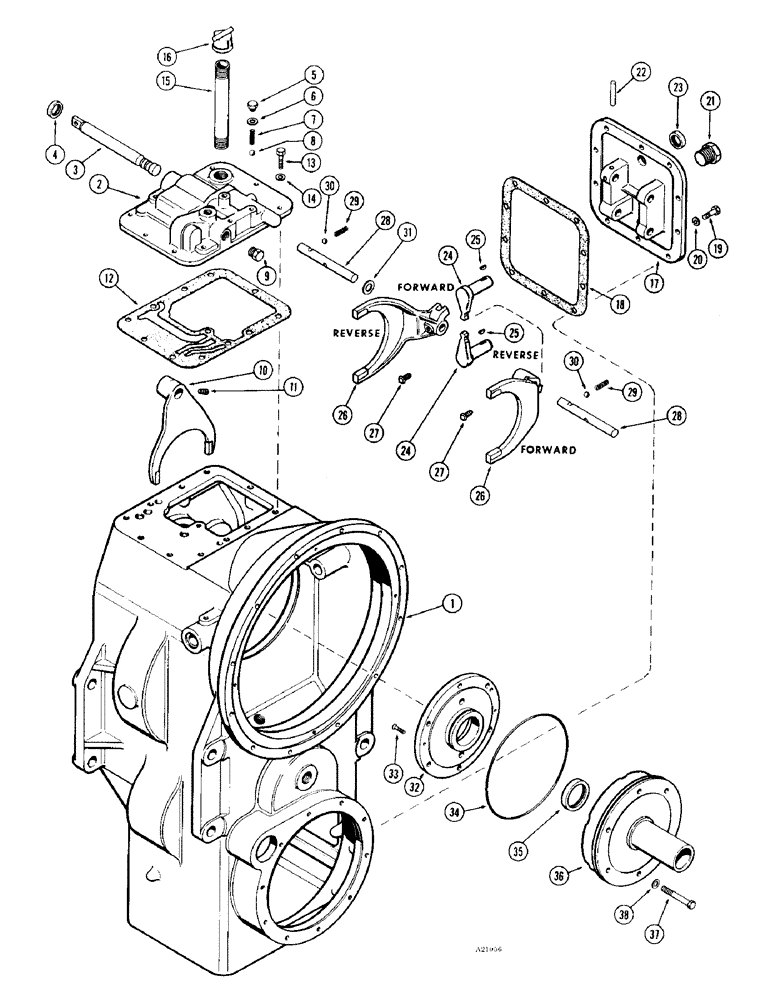

Запчасти Case IH 1470 (084) - TRANSMISSION SHIFT COVERS AND SEAL RETAINERS (06) - POWER TRAIN

1

L30702

CASE ASSY. - transmission (See Figure 082)

1шт.

2

L30023

COVER - forward-reverse speed control

1шт.

3

A55850

RAIL - speed control

1шт.

4

A55855

OIL SEAL

- oil, control rail

1шт.

5

A55852

PLUG - mesh lock spring

1шт.

6

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

- mesh plug

1шт.

7

A55853

SPRING - mesh lock

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

BALL - mesh, 7/16" dia. stud

1шт.

9

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, 1/2" hex. hd.

1шт.

10

A55851

FORK - forward & reverse speed control

1шт.

11

23095

HYDRAULIC HOSE

LOCKSCREW - speed control fork

1шт.

12

A55875

GASKET

- speed control cover mtg.

1шт.

13

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Cover Hex, 7/16"-14 x 1 1/4", G5, Full Thd

7шт.

13

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

- cover, 7/16" x 1-1/2" N.C. hex

2шт.

13

13-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- cover, 7/16" x 3" N.C. hex.

3шт.

14

92-7

LOCK WASHER,7/16"

12шт.

15

221-1252

NIPPLE - oil filler, 1" x 8-1/2" pipe

1шт.

16

A19631

CAP - oil filler

1шт.

17

L30251

VALVE SPRING

COVER - forward & reverse range control

1шт.

18

A55885

GASKET

- range control cover mtg.

1шт.

19

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Cover mounting Hex, 7/16"-14 x 1 1/4", G5, Full Thd

10шт.

20

92-7

LOCK WASHER,7/16"

10шт.

21

221-1837

PLUG

- pipe, 1-1/4" hex. hd.

1шт.

22

A55879

PIN - range selector interlock

1шт.

23

A55855

OIL SEAL

- oil, range shift arm

2шт.

24

L30217

ARM - forward & reverse range shift

2шт.

25

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Shift arm #9, 3/16" x 3/4"

2шт.

26

L30216

FORK - range selector shift

2шт.

27

23095

HYDRAULIC HOSE

LOCKSCREW - shift fork

2шт.

28

A55880

RAIL - forward & reverse range control

2шт.

29

A55853

SPRING - range control mesh lock

2шт.

30

211-12

BALL,7/16 Dia

- mesh lock, 7/16" dia. steel

2шт.

31

L30405

WASHER - overshift

1шт.

32

A55837

ADAPTER - seal housing

1шт.

33

171-209

SCREW - adapter, 1/4" x 1" N.C. flat hd. Phillips

2шт.

34

A55840

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

"O" RING - support housing

1шт.

35

A55832

OIL SEAL

SEAL - oil, support housing

1шт.

36

A55831

HOUSING

- support

1шт.

37

A55841

SCREW - cap, support housing

1шт.

38

A43621

WASHER

- housing bolt (Replaces A55842)

6шт.
