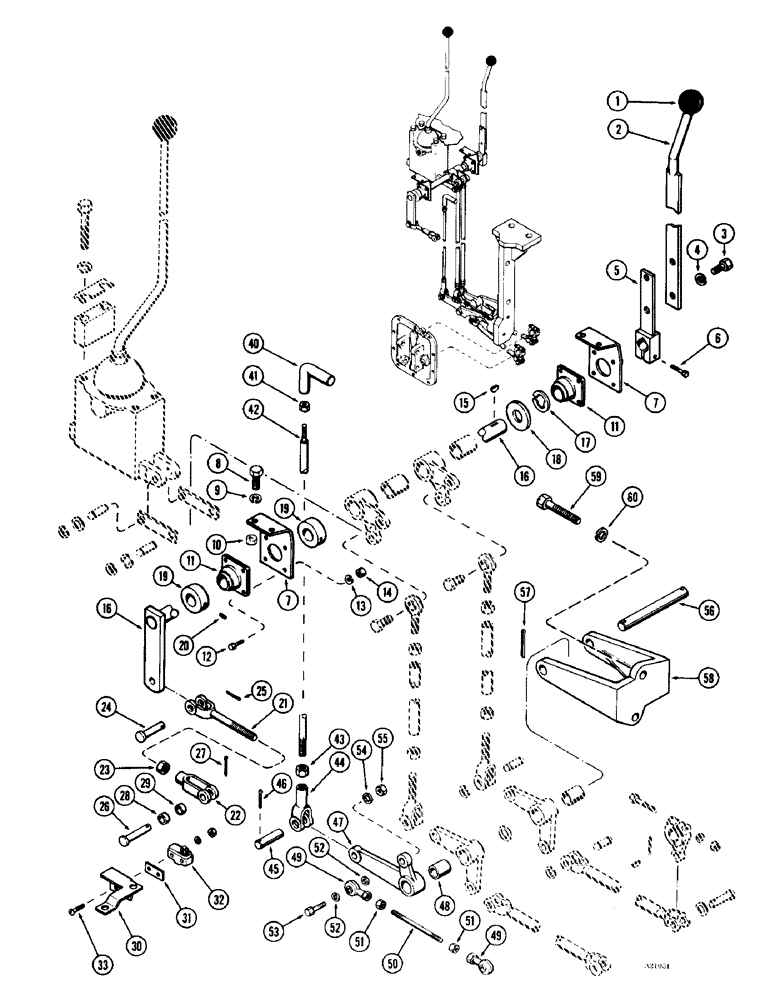

Запчасти Case IH 1470 (074) - FORWARD AND REVERSE SHIFT LINKAGE (06) - POWER TRAIN

1

A18852

KNOB

- hand lever

1шт.

2

L10531

LEVER - hand, forward & reverse upper

1шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Lever mounting Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

L10065

LEVER - forward & reverse lower

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Lever Hex, 3/8"-16 x 1 1/2", G5

1шт.

7

L10536

BRACKET - forward & reverse shaft (R.H. side)

1шт.

7

L10536

BRACKET - (L.H. side) (Used prior to S/N 8674405)

1шт.

7

A75030

BRACKET - (L.H. side) (1st used trac. S/N 8674405)

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket mtg. Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

A55553

BEARING - forward and reverse shaft

2шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Bearing mounting Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

15

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - shaft, #7 Woodruff

1шт.

16

L10533

SHAFT - forward and reverse

1шт.

17

D21476

"E" RING - bellcrank retaining

2шт.

18

195-111

WASHER,1"

- 1-1/16" x 2-1/2" x 11/64"

2шт.

19

L10654

COLLAR ASSEMBLY - forward & reverse shaft, Includes: Ref. 20

2шт.

20

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. hex. sckt. hd. cup pt.

1шт.

21

L10537

LINK - forward & reverse connecting

1шт.

22

A56444

YOKE - connecting, Serial Range: link-spool

1шт.

23

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

24

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" diameter

1шт.

25

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

26

A56471

PIN - link, Serial Range: yoke-spool

1шт.

27

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

28

A56473

ROLLER - forward & reverse shifting pin

1шт.

29

A56472

SPACER

- shifting pin roller

1шт.

30

A56470

BRACKET - neutral safety switch

1шт.

31

A56474

SPACER - safety switch

1шт.

32

A19513

SWITCH

ASSEMBLY - neutral safety

1шт.

33

173-267

SCREW - switch mtg., #6 x 1-1/4" N.C. rd. hd.

2шт.

195-506

WASHER,#6

- 5/32 x 5/16 x 1/32"

2шт.

40

A55557

HANDLE - hi-low range shift rod

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

Hi-low shift linkage Jam, 3/8"-16, G5

1шт.

42

L10538

ROD - hi-low range shift, linkage

1шт.

43

129-165

JAM NUT,Jam, 1/2"-20, G5

Hi-low shift linkage Jam, 1/2"-20, G5

1шт.

44

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - shift rod, 1/2" diameter, hi-low shift linkage

1шт.

45

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" diameter, hi-low shift linkage

1шт.

46

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Hi-low shift linkage 1/8" x 3/4"

1шт.

47

L10539

BELLCRANK ASSEMBLY - hi-low shift, linkage, Includes: Ref. 48

1шт.

48

A55533

BUSHING

- bellcrank, hi-low shift linkage

1шт.

49

A32398

BALL JOINT

END ASSEMBLY - shift link rod, hi-low shift linkage

2шт.

50

A55661

ROD - hi-low shift link

1шт.

51

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" N.F., hi-low shift linkage

2шт.

52

A32395

WASHER

SPACER - rod end bolt, hi-low shift linkage

4шт.

53

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

End mtg., Hi-low shift linkage Hex, 3/8"-16 x 1 3/4", G5

2шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Hi-low shift linkage 3/8"

2шт.

55

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Hi-low shift linkage 3/8"-16, G5

2шт.

56

L10559

SHAFT

- bellcrank mounting, hi-low shift linkage

1шт.

57

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , Hi-low shift linkage 3/16" x 1 1/4"

2шт.

58

A55598

BRACKET - bellcrank shaft mtg., hi-low shift linkage

1шт.

59

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket mtg., hi-low shift linkage Hex, 3/8"-16 x 1 1/2", G5

2шт.

60

92-6

LOCK WASHER,3/8"

hi-low shift linkage 3/8"

2шт.
