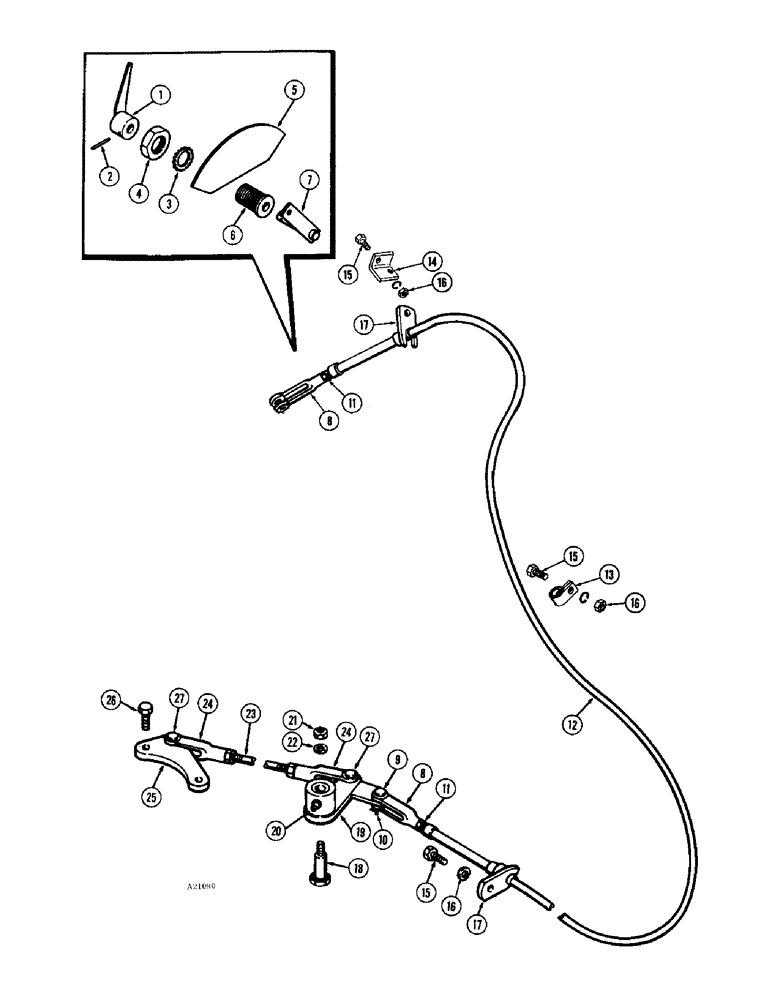

Запчасти Case IH 1470 (136) - REAR STEERING INDICATOR (05) - STEERING

1

A55478

POINTER - indicator dial

1шт.

2

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, 3/32" x 3/4", Slotted

1шт.

3

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

4

129-168

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.F. hex. Z.P.

1шт.

5

321-1283

DECAL - dial, rear steering indicator

1шт.

6

L10641

SUPPORT - indicator pointer

1шт.

7

L10643

ARM - indicator pointer

1шт.

8

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - clevis, indicator arm

2шт.

9

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis yoke

2шт.

10

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

11

129-27

NUT,Hex, #10 - 32

- hex., #10

2шт.

12

A55490

CONTROL

CABLE - indicator control

1шт.

13

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- indicator cable (Replaced A27814)

1шт.

14

T38851

BRACKET - cable support

1шт.

15

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Cable clamp & support Hex, 1/4"-20 x 5/8", G5, Full Thd

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

17

A55491

CLIP - cable retaining

2шт.

18

A13541

PIN - rear control pivot

1шт.

19

A55484

LEVER - rear axle indicator

1шт.

20

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 1/8"

1шт.

21

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

1шт.

22

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

23

A55488

ROD - lever to axle arm

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

24

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis, rod to lever and arm

2шт.

25

L11784

ARM - rear axle indicator

1шт.

26

L30572

BOLT (SPREADER)

BOLT - arm

2шт.

27

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Steering rod yoke 3/8" x 1.060"

2шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.
