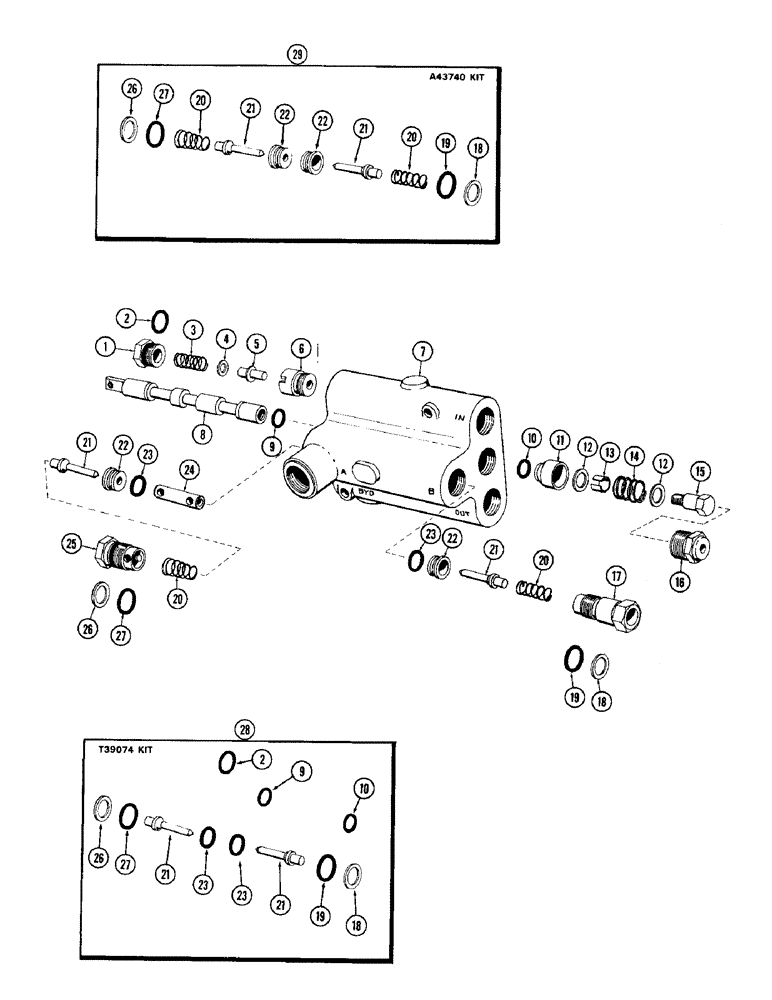

Запчасти Case IH 1470 (133A) - T38947 REAR STEERING VALVE (05) - STEERING

T38947

VALVE

ASSY. - hyd. rear steering, Includes: Ref. 1 - 29

1шт.

1

A43483

PLUG

ASSEMBLY

1шт.

2

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - plug (3/32" x 3/4" I.D.)

1шт.

Part of major seal Kit P/N T39074

1шт.

3

F37883

SPRING

- valve (Replaced FH730853)

1шт.

4

F12267

WASHER

SHIM - valve

1шт.

5

A43484

POPPET - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - relief valve (Order T38947)

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve (Order T38947)

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order T38947)

1шт.

9

F37887

O-RING

"O" RING - 1/8" x 5/8" I.D. (Replaced FH731513)

1шт.

Part of major seal Kit P/N T39074

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - 3/32" x 5/8" I.D.

1шт.

Part of major seal Kit P/N T39074

1шт.

11

T39069

BUSHING

1шт.

12

F8235

WASHER

- steel (.915 dia.)

2шт.

13

F37885

SPACER

- spool (Replaced FH732420)

1шт.

14

F14091

VALVE SPRING

SPRING - center, spool

1шт.

15

F37886

SCREW

- spool (Replaced FH734020)

1шт.

16

F35196

CAP

ASSEMBLY

1шт.

17

T39096

PLUG ASSEMBLY - port adapter, Includes: Ref. 18 and 19

1шт.

18

A35698

BACK-UP RING

WASHER - backup

1шт.

Part of major seal Kit P/N T39074

1шт.

Part of repair poppet Kit P/N A43740

1шт.

19

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - 3/32" x 3/4" I.D.

1шт.

Part of major seal Kit P/N T39074

1шт.

Part of repair poppet Kit P/N A43740

1шт.

20

F35198

VALVE SPRING

SPRING - lockout

2шт.

Part of repair poppet Kit P/N A43740

1шт.

21

F88777

PLUNGER

POPPET ASSEMBLY

2шт.

Part of major seal Kit P/N T39074

1шт.

Part of repair poppet Kit P/N A43740

1шт.

22

F37884

SEAT

ASSEMBLY - lockout (Replaced FH731729), Includes: Ref. 23

2шт.

Part of repair poppet Kit P/N A43740

1шт.

23

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - 3/32" x 9/16" I.D.

1шт.

Part of major seal Kit P/N T39074

1шт.

24

F8229

PLUNGER

- lockout

1шт.

25

F35197

PLUG

ASSEMBLY - seat retainer, Includes: Ref. 26 and 27

1шт.

26

A35698

BACK-UP RING

WASHER - backup

1шт.

Part of repair poppet Kit P/N A43740

1шт.

27

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - 3/32" x 3/4" I.D.

1шт.

Part of repair poppet Kit P/N A43740

1шт.

28

T39074

SEAL KIT

KIT - major seal (Consists of Refs. 2, 9, 10, 18, 19, 21 and 23)

1шт.

29

A43740

KIT

- repair poppet (Includes: Refs. 18, 19, 20, 21, 22, 26 and 27)

1шт.
