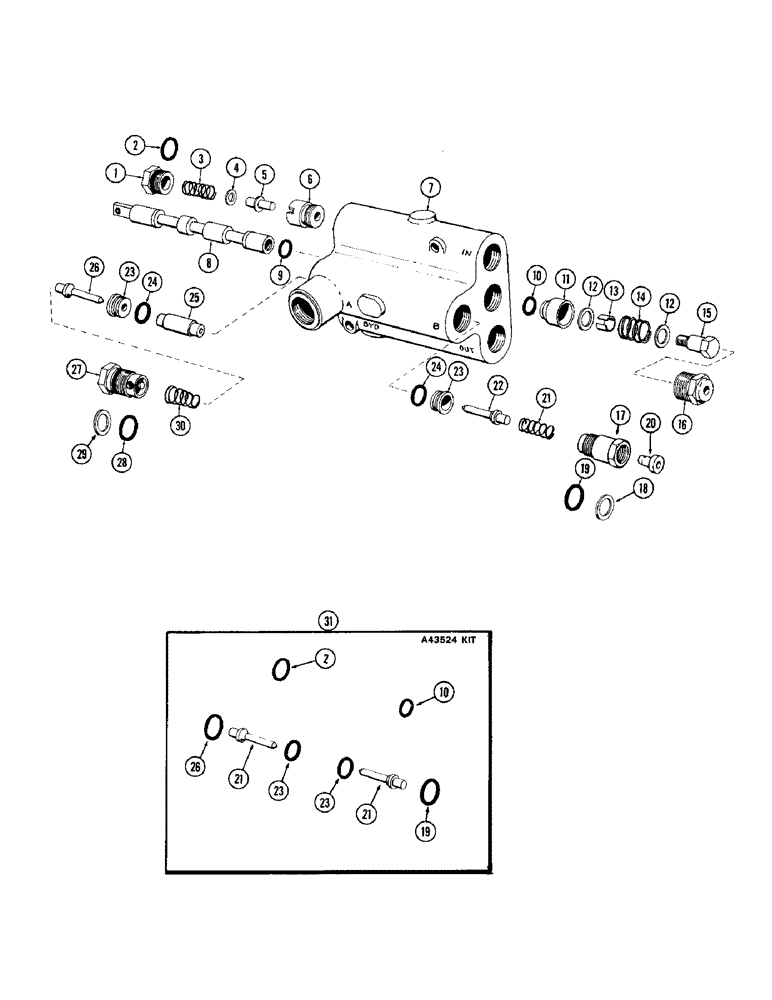

Запчасти Case IH 1470 (132) - A62873 REAR STEERING VALVE (05) - STEERING

A44487

VALVE

ASSY. - rear steering (Replaces A62873) (Use kit A44488 to convert A62873 valve to A44487), Includes: Ref. 1 - 31

1шт.

1

A43483

PLUG

- poppet spring

1шт.

2

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - seal, poppet spring plug

1шт.

Part of valve Kit P/N A43524

1шт.

3

F37883

SPRING

- valve (Dark blue)

1шт.

4

F12267

WASHER

SHIM - poppet spring

1шт.

5

A43484

POPPET - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT ASSY. - relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

9

F37887

O-RING

"O" RING - (1/8 x 5/8" I.D.)

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - (3/32 x 5/8" I.D.)

1шт.

Part of valve Kit P/N A43524

1шт.

11

T39069

BUSHING

- spool

1шт.

12

F8235

WASHER

- retaining, spool spring

2шт.

13

F37885

SPACER

- spool

1шт.

14

F14091

VALVE SPRING

SPRING - spool centering

1шт.

15

F37886

SCREW

- spool

1шт.

16

F35196

CAP

- spool end

1шт.

17

A44497

ADAPTER

PLUG - poppet

1шт.

Part of Valve Conversion Kit P/N A44488

1шт.

18

A35698

BACK-UP RING

WASHER - "O" ring back-up

1шт.

19

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - plug

1шт.

Part of valve Kit P/N A43524

1шт.

20

A44496

STOP

- poppet

1шт.

Part of Valve Conversion Kit P/N A44488

1шт.

21

F35198

VALVE SPRING

SPRING - port lock-out

1шт.

Part of Valve Conversion Kit P/N A44488

1шт.

Part of valve Kit P/N A43524

1шт.

22

F88777

PLUNGER

POPPET ASSY. - lock-out

1шт.

Part of Valve Conversion Kit P/N A44488

1шт.

23

F37884

SEAT

- poppet

2шт.

Part of Valve Conversion Kit P/N A44488

1шт.

Part of valve Kit P/N A43524

1шт.

24

A43532

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING - poppet

2шт.

25

NSS

NOT SOLD SEPARAT

PLUNGER - lock-out

1шт.

26

A43526

SPOOL

POPPET ASSY. - lock-out

1шт.

Part of valve Kit P/N A43524

1шт.

NSS

NOT SOLD SEPARAT

PLUG ASSY. - seat retainer, Includes: Ref. 27 - 29

1шт.

27

A43535

PLUG - spring & seat retaining

1шт.

28

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

"O" RING - plug

1шт.

29

A35698

BACK-UP RING

WASHER - "O" ring back-up

1шт.

30

A43528

VALVE SPRING

SPRING - poppet lock-out

1шт.

31

A43524

KIT

- repair, valve poppet (Consists of Ref. 2, 10, 19, 21, 23 and 26)

1шт.

A44488

KIT

- valve conversion, Includes: Ref. 17, 20, 21, 22 and 23

1шт.
