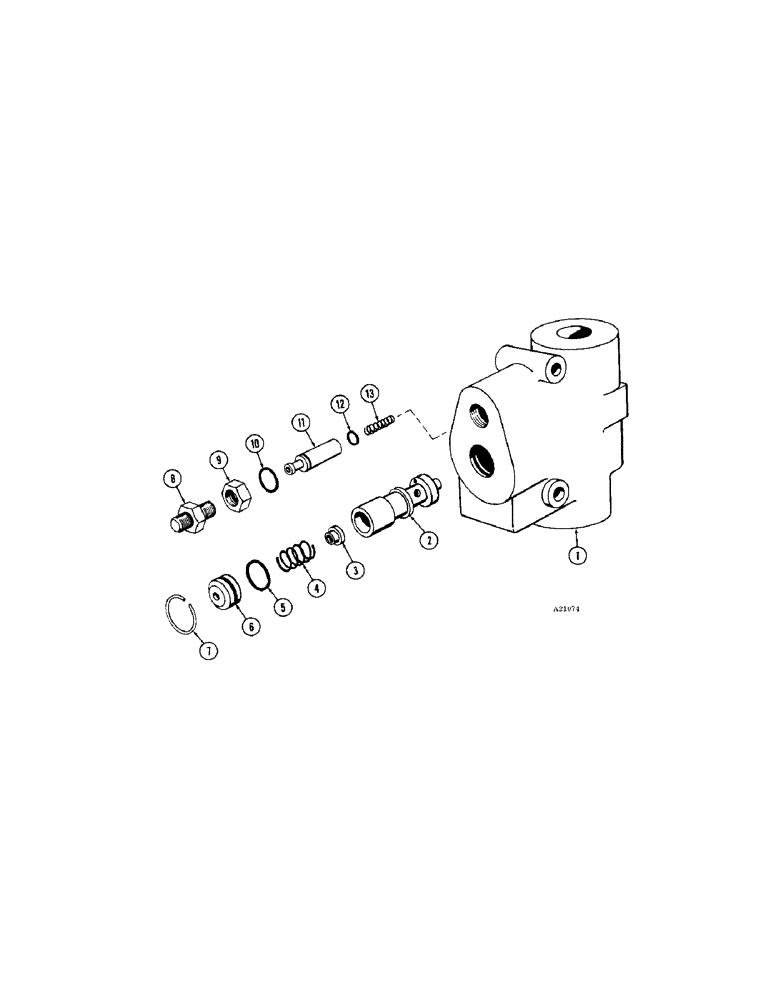

Запчасти Case IH 1470 (128) - FLOW DIVIDER VALVE (05) - STEERING

T38937

VALVE - flow divider, steering, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - flow divider valve

1шт.

2

T39182

PISTON - valve

1шт.

3

T39181

PLUG

ORIFICE - valve

1шт.

4

T39183

SPRING - piston, valve

1шт.

5

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

"O" RING - valve

1шт.

Part of repair Kit P/N T39186

1шт.

6

T39184

CAP - end, valve

1шт.

7

T39185

ASSEMBLY

RING - retainer, valve

1шт.

Part of repair Kit P/N T39186

1шт.

8

T39180

FITTING - valve

1шт.

9

218-1277

BHD LOCK NUT,Blkhd, 9/16"-18

LOCKNUT - valve

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve

1шт.

Part of repair Kit P/N T39186

1шт.

11

T39178

VALVE - relief, valve

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - valve

1шт.

Part of repair Kit P/N T39186

1шт.

13

T39177

SPRING - relief, valve

1шт.

T39186

SEAL ASSY.

KIT - repair, flow divider valve (Consists of Refs. 5, 7, 10, 12, and cap puller screw)

1шт.
