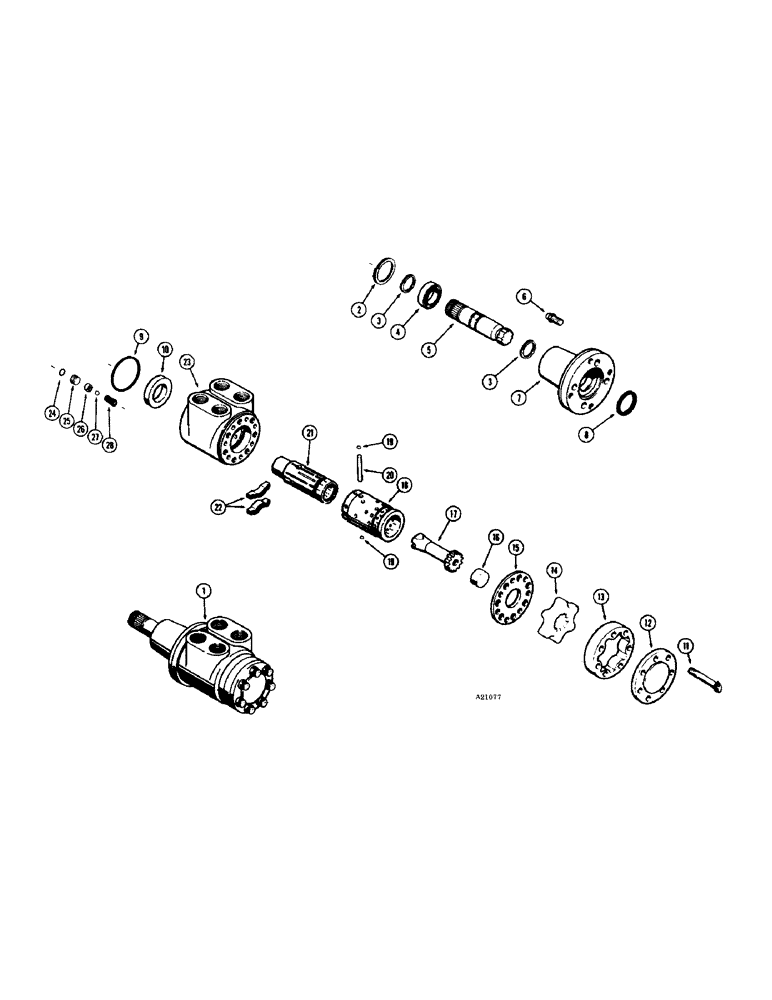

Запчасти Case IH 1470 (128[1]) - MANUAL STEERING PUMP (05) - STEERING

1

L13405

PUMP, HYDRAULIC

VALVE ASSEMBLY - manual steering, Includes: Ref. 1 - 28

1шт.

2

L30882

SNAP RING,#137, 1.461", Int, Spiral

RETAINER - bearing, outer

1шт.

3

F53335

RING, SNAP

RETAINER - bearing, inner

2шт.

4

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- control column

1шт.

5

L30880

SHAFT

- control

1шт.

6

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - ferry cap (5/16" - 18 N.C. x 5/8")

4шт.

7

L30879

STEERING COLUMN

COLUMN - control

1шт.

8

A72029

RING

QUAD RING - control column

1шт.

9

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - "O" ring, bushing

1шт.

10

A72030

SPACER

BUSHING - cap locating (Replaced L30883)

1шт.

11

166-530

SCREW - ferry cap (5/16"-24 N.F. x 2-1/4")

7шт.

12

A72024

CAP

- end

1шт.

L30874

GEAR WHEEL

GEAR SET - control, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - gear

1шт.

14

NSS

NOT SOLD SEPARAT

STAR - gear

1шт.

15

A72026

PLATE

- spacer

1шт.

16

L30877

SPACER

- control

1шт.

17

L30878

DRIVE SHAFT

DRIVE - control end

1шт.

L30884

CONTROL

ASSY. - pump, Includes: Ref. 18 - 28

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

19

L30894

PIN

DISC - centering pin

2шт.

20

L30888

PIN

- centering

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

22

L30889

SPRING

- centering

6шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - plug, 7/16 x 5/16 x 1/16 in

1шт.

25

L30892

PLUG

- seal, housing

1шт.

26

L30891

SEAT

- check

1шт.

27

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

28

L30890

VALVE SPRING

SPRING - check

1шт.
