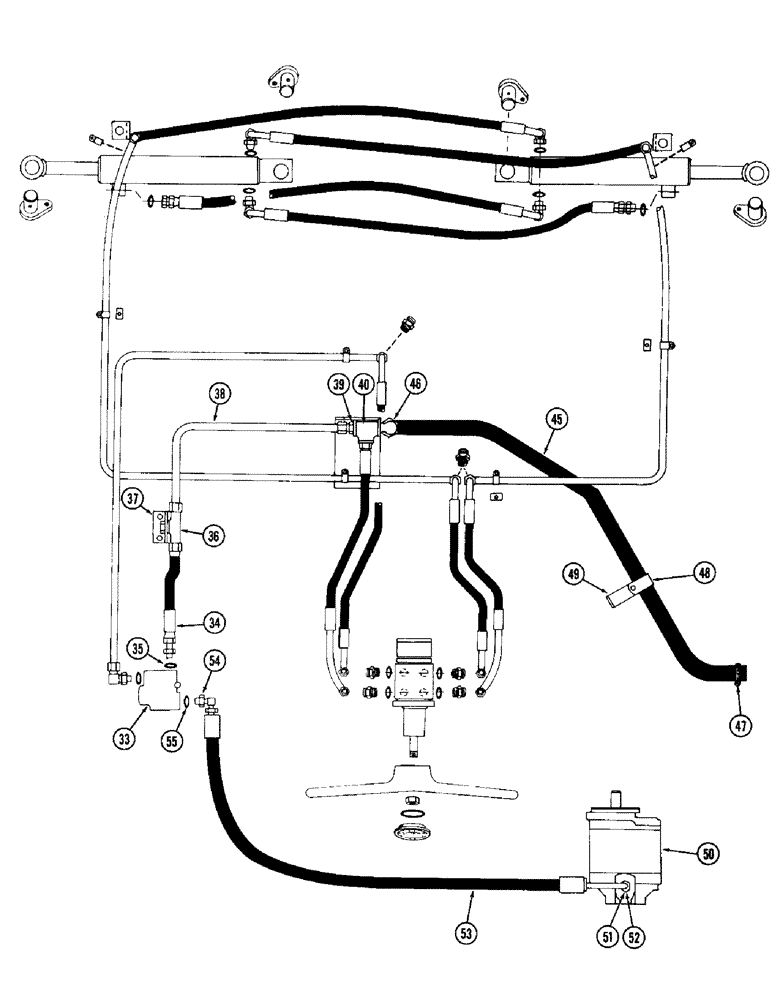

Запчасти Case IH 1470 (127A) - FRONT STEERING CONTROL ASSEMBLY (05) - STEERING

33

T38937

VALVE - flow divider (Repairs Figure 128)

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

34

T38942

HOSE - flow divider relief

1шт.

35

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8" OD

1шт.

36

218-806

TEE,7/8"-14, 37 Degree, Blkhd

Return line, 5/8" tube 7/8"-14, 37º, Blkhd

1шт.

37

T38934

BRACKET - return line tee

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

38

T38955

TUBE - rear steering return front

1шт.

39

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 5/8" tube x 1/2" P.T.

1шт.

40

T38936

TEE ASSY. - return line, 1/2" P.T. (Includes bracket)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

45

T38477

HOSE - steering return

1шт.

46

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - steet, 1/2" black pipe

1шт.

47

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

1шт.

48

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

49

T38478

BRACKET - hose support

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

50

T38912

PUMP, HYDRAULIC

PUMP - hydraulic (Repairs Figure 142)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

51

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - pump outlet, 3/4" tube x 1-1/16"-12, Incl. Ref. 52

2шт.

52

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4" O.D.

2шт.

53

T38948

HOSE - pump to flow divider

1шт.

54

D25566

ELBOW

ADAPTER - inlet port, Includes: Ref. 55

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8" O.D.

1шт.
