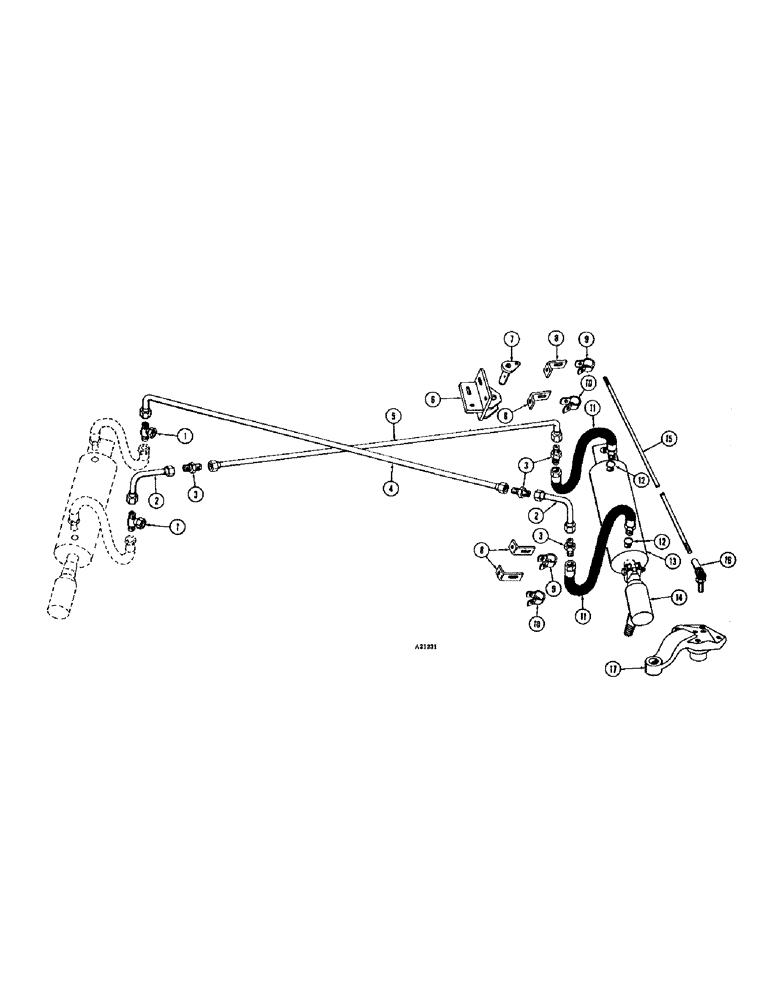

Запчасти Case IH 1470 (125A) - RIGHT HAND REAR STEERING ASSEMBLY (05) - STEERING

1

T39592

TEE

- swivel

2шт.

2

T39585

TUBE - 1/2" O.D. x .049 wall 0.5" OD x 5.1, 4.1" L

2шт.

3

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 1/2" tube

4шт.

4

T39583

TUBE - 1/2" O.D. x 31.6" 0.5" OD x 31.6, 5.1" L

1шт.

5

T39582

TUBE - 1/2" O.D. x 30.6"

1шт.

6

T39586

BRACKET - pivot

1шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

195-108

WASHER,5/8"

- plain, Z.P. 5/8"

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

7

A55210

PIN - steering cylinder

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

195-2125

WASHER,1 5/16" x 2" x .109"

- 1-5/16" I.D. x 2" O.D. x #12 ga.

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

8

T39584

BRACKET - clamp

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

9

49838

CLAMP

- tubes

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

195-104

WASHER,3/8"

- plain .44 I.D. x 1" O.D. x 14 ga. Z.P.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hoses

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

195-104

WASHER,3/8"

- plain .44 I.D. x 1" O.D. x #14 ga. Z.P.

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

T38939

HOSES - R.H., Serial Range: cylinder-tubes

2шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hoses to cylinder

2шт.

13

A44898

CYLINDER

- hyd. R.H. (Replaces T38951) (See Figure 134)

1шт.

13

T38951

CYLINDER ASSY.

CYLINDER - hyd. R.H. (Order A44898) (See Figure 135A)

1шт.

14

T38954

END

- socket assy. cylinder rod (Repairs Figure 134)

1шт.

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - (7/8" N.F. hex., slotted) (Plated) (Replaced 25-2314)

1шт.

132-104

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), 3/16" x 3"

1шт.

15

T39734

ROD - indicator

1шт.

16

D38296

JOINT

BALL JOINT - indicator rod

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

T39591

ARM - R.H. rear steering

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.
