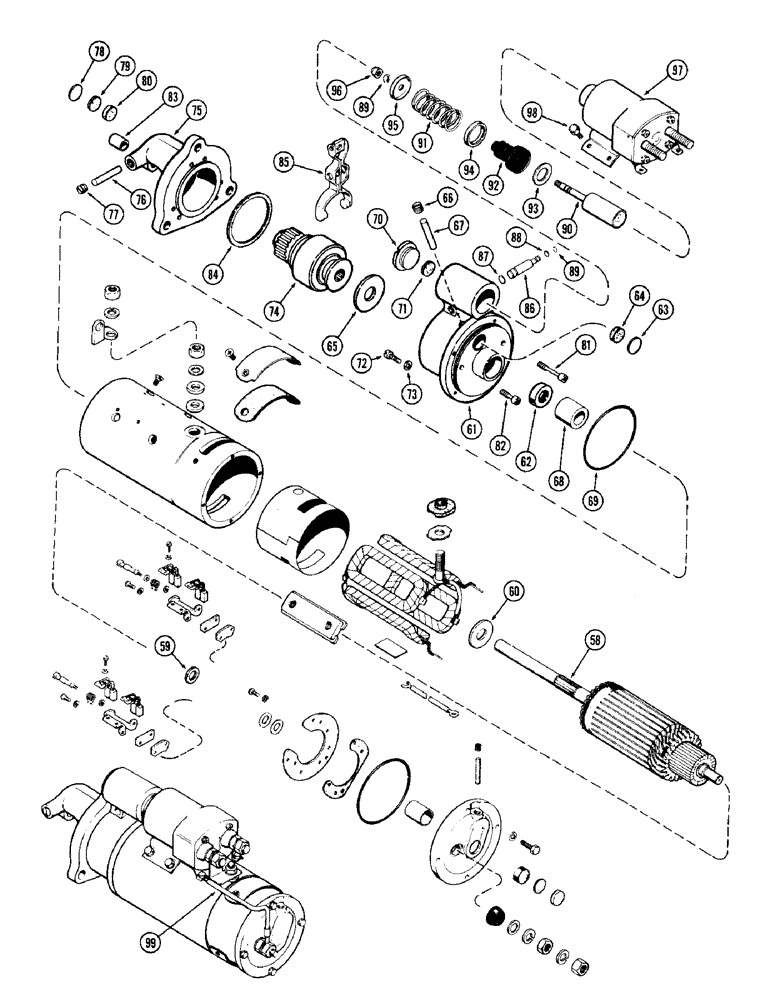

Запчасти Case IH 1470 (054) - STARTING MOTOR (04) - ELECTRICAL SYSTEMS

D42964

X

STARTER ASSY. - , Includes: Ref. 58 - 99 and 2 - 53 on Figure 52

1шт.

58

A41458

ARMATURE

- starter

1шт.

59

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature (At commutator end)

1шт.

60

A40892

WASHER

- armature spacer

1шт.

61

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 62 - 67

1шт.

62

R21582

OIL SEAL

- oil, lever housing

1шт.

63

41-57

PLUG,Exp, 1 1/32"

- expansion

1шт.

64

A41923

PLUG

- housing

1шт.

65

R15145

DISC

WASHER - brake

1шт.

66

221-1041

PLUG

- pipe

1шт.

67

R15023

WICK

- oil, lever housing

1шт.

68

R21580

BUSHING

- lever housing

1шт.

69

D41391

O-RING

"O" RING - shift lever housing

1шт.

70

R21587

PLUG

- shift lever housing

1шт.

71

A41973

GASKET

- plug

1шт.

72

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

73

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

74

A42397

DRIVE

ASSY. - starter

1шт.

75

A40283

HOUSING

ASSY. - drive end, Includes: Ref. 76 - 80

1шт.

76

R15023

WICK

- oil, drive housing

1шт.

77

221-1041

PLUG

- wick, drive housing

1шт.

78

41-57

PLUG,Exp, 1 1/32"

- expansion, drive housing

1шт.

79

A41973

GASKET

- plug

1шт.

80

A41923

PLUG

- reservoir, felt

1шт.

81

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - attaching, drive end (1-1/2" long)

1шт.

82

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - attaching, drive end (7/8" long)

1шт.

83

A40893

BUSHING

- starting drive end, 5/8 x 3/4 x 25/32"

1шт.

84

R21562

GASKET

- drive end housing

1шт.

85

D32547

LEVER

ASSY. - shifter

1шт.

86

A42199

PIN

STUD - starter shifter lever

1шт.

87

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud, 23/64 x 1/2 x 1/16"

1шт.

88

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud, 15/64 x 3/8 x 1/16"

1шт.

89

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud & plunger retaining #37, Ext

2шт.

90

R21568

PLUNGER

- starter solenoid switch

1шт.

91

A41242

SPRING

- starter plunger

1шт.

92

A42308

BOOT

- starter solenoid switch

1шт.

93

A41922

WASHER

SEAT - boot

1шт.

94

R21572

RETAINER

SEAT - spring (At solenoid end)

1шт.

95

R21571

RETAINER

SEAT - spring (At lever end)

1шт.

96

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger spring retaining

1шт.

97

A15358

SOLENOID

SWITCH ASSY. - starter solenoid (See Figure 056)

1шт.

98

R15139

WASHER

SCREW - solenoid mounting

4шт.

99

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: terminal-switch

1шт.
