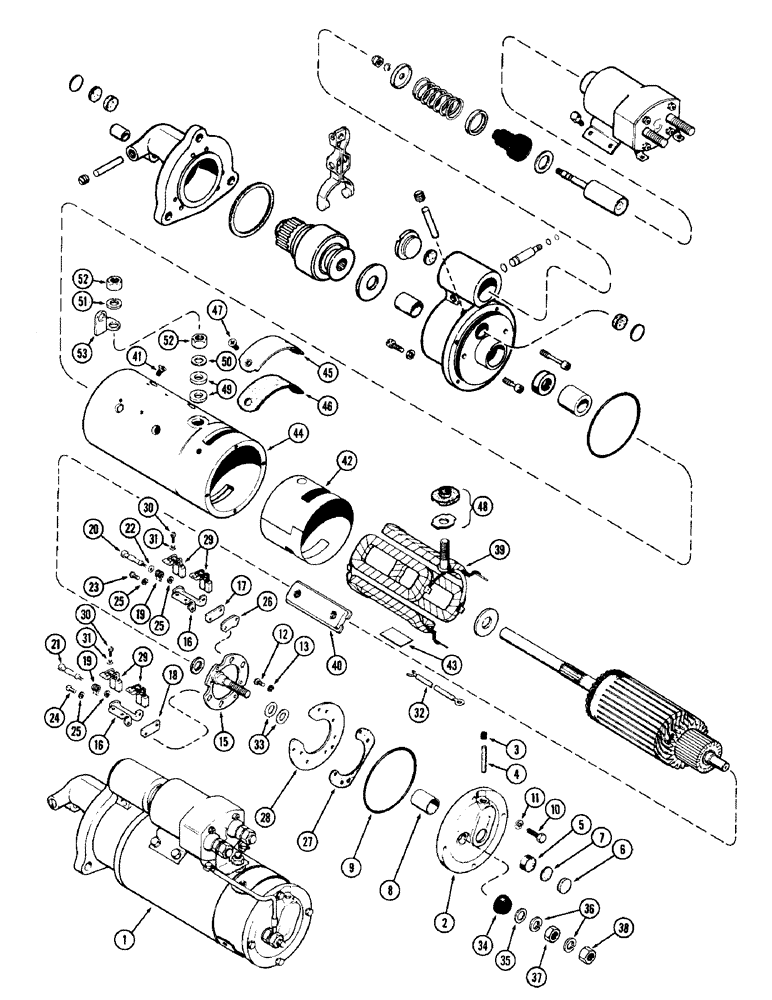

Запчасти Case IH 1470 (052) - STARTING MOTOR (04) - ELECTRICAL SYSTEMS

1

D42964

X

STARTER ASSY. - (Delco-Remy #1113949), Includes: Ref. 2 - 53 and Ref. 58 - 99 on Figure 54

1шт.

2

A42314

GASKET

FRAME ASSY. - commutator end, Includes: Ref. 3 - 6

1шт.

3

221-1041

PLUG

- oil wick hole

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir, felt

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (Expansion)

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

A25336

BUSHING

- commutator end

1шт.

9

D41391

O-RING

"O" RING - commutator end frame

1шт.

10

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end to coil housing Hex, 1/4"-28 x 1", G5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Commutator end housing bolt 1/4"

4шт.

12

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

BOLT - spacer mounting ring

3шт.

13

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Spacer bolt #8

3шт.

A41461

PLATE

ASSY. - starter brush (Less brushes), Includes: Ref. 15 - 28

1шт.

15

A41921

PLATE

RING - brush mounting

1шт.

16

A25826

HOLDER

- starter brush, grounded & insulated

4шт.

17

A41454

SPACER - starter insulated holder

2шт.

18

A41455

SPACER

- starter grounded holder

2шт.

19

A25393

SPRING

- starter brush

8шт.

20

A41915

STUD - brush spring carrier (For insulated brush)

2шт.

21

A41972

SCREW,#10 - 32 x 1.36, 0.4"

STUD - brush spring carrier (For grounded brush)

2шт.

22

A41916

WASHER

- insulated (For insulated brush)

4шт.

23

A41974

SCREW,#10 - 32 x 5/8"

- brush holder (For insulated brush)

2шт.

24

A41959

SCREW,#10 - 32 x 3/8"

- brush holder (For grounded brush)

2шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

26

A40674

NOZZLE HOLDER

PLATE - connector (For insulated brush)

1шт.

27

A41914

SUPPORT

TERMINAL & PLATE ASSY. - ground brush

1шт.

28

A41457

INSULATOR

- starter brush plate

1шт.

29

A41456

BRUSH, COMMUTATOR

BRUSHES - starter

8шт.

30

173-273

SCREW - brush retaining

8шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Brush screw #8

8шт.

32

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: brush-field

1шт.

33

A41971

WASHER

- terminal stud

2шт.

34

A41918

INSULATOR

- terminal stud

1шт.

35

D30006

WASHER

- terminal stud, flat

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Terminal stud 1/2"

2шт.

37

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal stud Jam, 1/2"-13, G5

1шт.

38

D30009

NUT

- terminal stud

1шт.

39

A41590

COIL

ASSY. - starter field

1шт.

40

R15115

SHOE

- starter pole

4шт.

41

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes

8шт.

42

A41920

INSULATOR

- field coil

1шт.

43

A41977

RUBBER INSULATOR

INSULATOR - jumper wire junction

2шт.

44

NSS

NOT SOLD SEPARAT

FRAME - field (Order D42964)

1шт.

45

A41957

PLATE

COVER - brush inspection

2шт.

46

A41849

GASKET

- inspection cover

2шт.

47

171-207

SCREW,Flat Hd, 1/4" x 1/2"

- inspection cover retaining

4шт.

48

A41925

BUSHING

INSULATOR - field terminal stud, inner

1шт.

49

D30005

INSULATOR

- field terminal stud, outer

2шт.

50

D30006

WASHER

- field terminal stud, flat

1шт.

51

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Field terminal stud 1/2"

1шт.

52

129-145

JAM NUT,Jam, 1/2"-13, G5

Field terminal stud Jam, 1/2"-13, G5

2шт.

53

A40894

CONNECTOR, ELEC

CONNECTOR - starter, Serial Range: terminal-switch

1шт.
