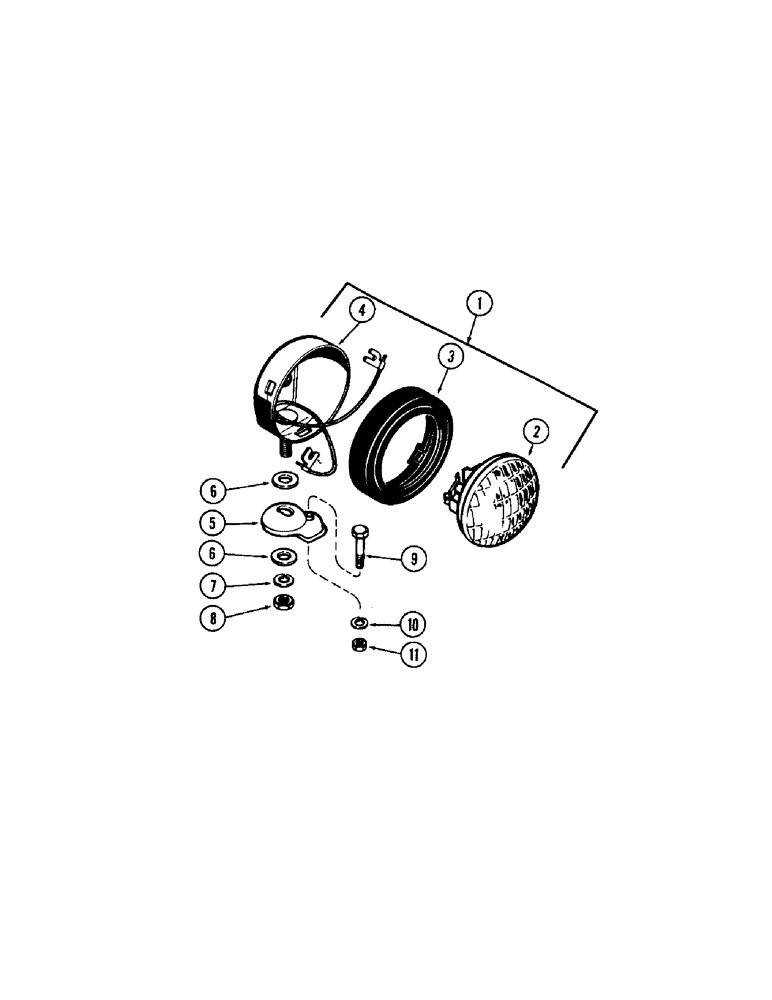

Запчасти Case IH 1470 (046) - REAR WORKING FLOOD LIGHTS (04) - ELECTRICAL SYSTEMS

1

A55702

LIGHT

ASSY. - rear working flood, Includes: Ref. 2 - 4

2шт.

2

A25212

LAMP

- sealed unit

1шт.

3

A25213

RETAINER

- sealed unit (Rubber)

1шт.

4

A25214

LIGHT

BODY ASSEMBLY

1шт.

5

A34046

BRACKET

- mounting

2шт.

6

10923

WASHER

- concave, Serial Range: light-bracket

4шт.

7

192-12

WASHER - lock, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

Light mounting 1/2"-13, G5

2шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket Hex, 3/8"-16 x 1 1/2", G5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

- bracket bolt, 3/8" N.C. hex.

2шт.
