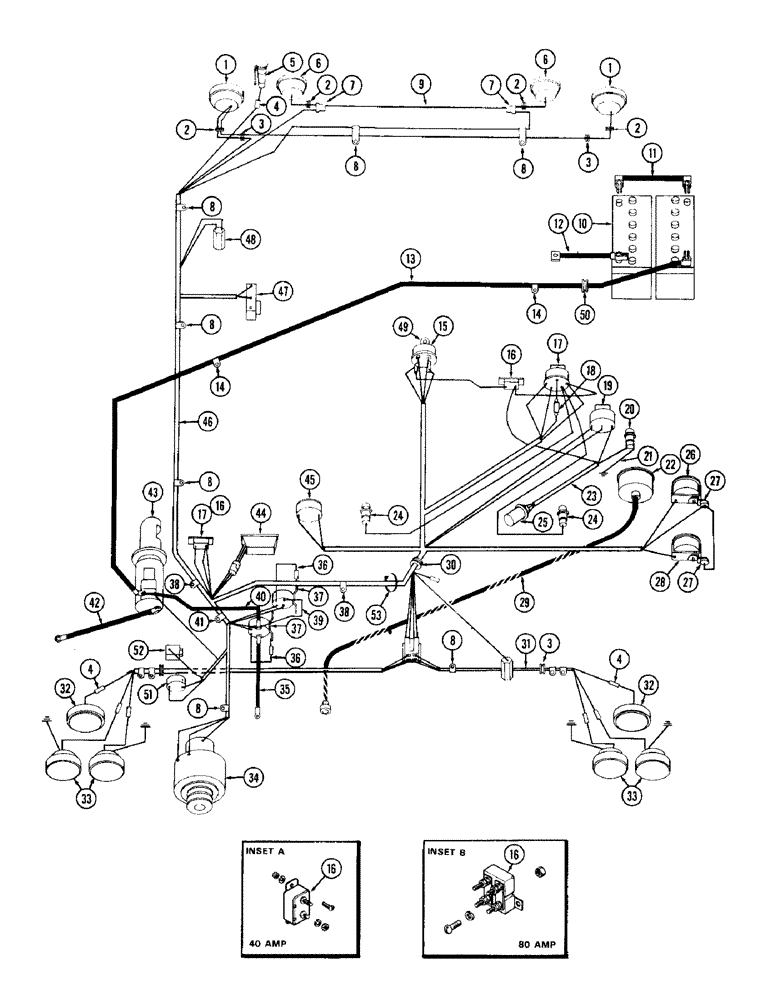

Запчасти Case IH 1470 (038) - ELECTRICAL WIRING, (504B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A55702

LIGHT

LAMP - flood, rear working (Repairs Figure 046)

2шт.

2

A31076

GROMMET

- rear leads at sheet metal

4шт.

3

49560

BAR

- wire leads at side sheet

4шт.

4

A27213

CONNECTOR - wire accessory lead

8шт.

5

A8170

SOCKET

- auxiliary outlet (Repairs Figure 048)

1шт.

6

L11000

INTERIOR LIGHT

LAMP - combination tail and stop (Repairs Figure 046[1] )

2шт.

7

A8210

CONNECTOR, ELEC

SOCKET - auxiliary outlet

2шт.

8

49845

CLAMP

CLIP - wire

11шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

- 3/8" N.C. hex. Z.P.

1шт.

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- truss head, Mach. 1/4" x 3/4" Z.P.

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

9

A19882

WIRE - connecting, Serial Range: lamp-lamp

1шт.

10

A38411

DRY BATTERY

- 12 volt, Prestolite #30H-A7Y

2шт.

11

T38548

CABLE

- battery, Serial Range: positive-negative

1шт.

12

A27069

CABLE

-, Serial Range: battery-ground

1шт.

13

A31077

CABLE - battery, Serial Range: positive-starter

1шт.

14

49836

CLAMP

CLIP - battery cable

2шт.

15

A24510

SWITCH

ASSY - starting (Diesel) (Includes key Ref 49)

1шт.

16

A22877

BREAKER,40A

- circuit (40 amp) (See Inset A) (See Figure 042)

1шт.

16

A59704

BREAKER

- circuit (60 amp) (See Inset B) (See Figure 042)

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach. #10 x 1/2" rd. hd. Z.P.

4шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. Z.P.

2шт.

129-37

NUT,#10-32

4шт.

17

A56307

SWITCH

- light, 24 volt (Repairs Figure 042)

1шт.

18

A14900

RESISTOR

- light switch

1шт.

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- machine #8 x 3/8" rd. hd. Z.P.

1шт.

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

129-16

NUT,#8-32

1шт.

19

L10376

SWITCH

ASSEMBLY - warning lights (Repairs Figure 042)

1шт.

20

T38540

LAMP

- pilot flasher (Repairs Figure 042)

1шт.

21

A19364

WIRE - ground, pilot lamp

1шт.

22

A55972

TACHOMETER

- (Repairs Figure 042)

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

173-240

SCREW - mach. #10 - 32 x 3/4" rd. hd. Z.P.

2шт.

23

T38551

WIRE - harness, flasher

1шт.

24

A55704

LIGHT - panel (Repairs Figure 042)

1шт.

25

A55994

FLASHER UNIT

FLASHER - warning lamp (Replaces T38539)

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach. #10 x 1/2" rd. hd. Z.P.

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. Z.P.

1шт.

26

A19346

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

27

A19349

RESISTOR

- gauges

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

129-37

NUT,#10-32

2шт.

28

A19347

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

29

A55973

CABLE

- tachometer

1шт.

30

A7808

GROMMET

- rubber

1шт.

31

T38550

WIRE HARNESS - lights

1шт.

32

T38557

LAMP - warning (Repairs Figure 044)

2шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

129-125

NUT,1/2"-20, G5

2шт.

33

T38897

LAMP - front flood (Repairs Figure 044)

4шт.

34

D41375

X

ALTERNATOR - with pulley, 34 volt - 35 amp (Repairs page 50) (For repairs use alternator A41360 and pulley A41361)

1шт.

35

A21483

CABLE

- solenoid, Serial Range: switch-manifold

1шт.

36

T38544

WIRE - ground - solenoid switch

2шт.

37

D31479

SOLENOID SWITCH

SWITCH - solenoid

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

195-103

WASHER,5/16"

- plain Z.P. 5/16"

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

38

49838

CLAMP

CLIP - wire

2шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

195-102

WASHER,1/4"

- plain Z.P. 1/4"

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

39

T39547

WIRE -, Serial Range: solenoid-solenoid

1шт.

40

T38543

CABLE - starter to solenoid switch

1шт.

41

49774

CLAMP

CLIP - wire

1шт.

42

T38538

CABLE - ground, starter

1шт.

43

D42964

X

STARTER - elec. motor (Repairs Figures 052 & 054)

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex.

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

2шт.

44

A75072

REGULATOR

- alternator (24 volt) (Replaces D41431)

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

173-207

X

SCREW - 1/4" x 5/8" Z.P.

3шт.

45

A55699

ELECTRICAL GAUGE

AMMETER - 60 amp.

1шт.

46

T39546

WIRE HARNESS - main

1шт.

47

A19513

SWITCH

- neutral start

1шт.

48

A12492

SWITCH - brake light

1шт.

49

A24509

KEY

S - ignition for A24510 switch (Set of 2)

1шт.

50

A7808

GROMMET

- rubber

1шт.

51

D28796

SWITCH

- pressure, oil

1шт.

52

A35031

SENDER UNIT

UNIT - sending, oil pressure

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie

3шт.
