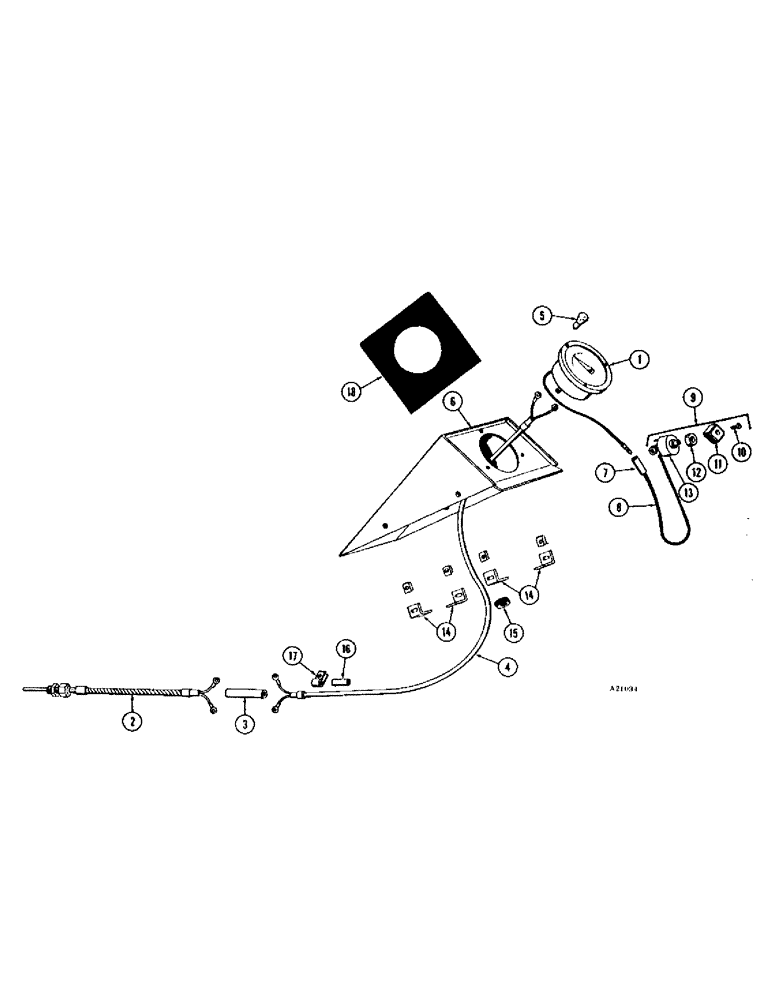

Запчасти Case IH 1470 (036) - PYROMETER, ENGINE EXHAUST, (504B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A76278

ELECTRICAL GAUGE

PYROMETER - engine exhaust (Replaces T39216) (1st used trac. ser. no. 8712091) (W/black bezel)

1шт.

1

T39216

KIT

PYROMETER - engine exhaust (Order A76278) (1st used prior to trac. ser. no. 8712091)

1шт.

2

T39217

ELECTRICAL WIRE

THERMOCOUPLE - pyrometer

1шт.

3

T39219

BOOT

CONNECTOR - boot, pyrometer

1шт.

4

T39218

HARNESS

- pyrometer

1шт.

173-249

SCREW

- #6-32 x 3/4" rd. hd.

3шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

195-15

WASHER,#12

- 1/4 x 1/2 x 1/16"

2шт.

129-502

NUT,1/4"-28, Brass

2шт.

175-57

SCREW,Sl Truss Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" truss hd.

2шт.

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

2шт.

5

T39215

BULB

- 24 volt

1шт.

6

T39210

PANEL - pyrometer

1шт.

7

L10051

TERMINAL CONNECTOR,Male

TERMINAL - wire, pyrometer

1шт.

8

L11641

WIRE - lamp lead

1шт.

9

A56307

SWITCH

ASSEMBLY - light (24 volt), Includes: Ref. 10 - 13

1шт.

10

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- light switch knob

1шт.

11

A20465

KNOB

- light switch

1шт.

12

A20467

NUT

- lock, light switch

1шт.

13

NSS

NOT SOLD SEPARAT

CONTROL ASSY. - light switch (Order Ref. 9)

1шт.

14

A17270

CLIP - panel mounting

4шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

131-135

SPRING NUT,Tinn, U, 1/4"-20

4шт.

15

NLS

NO LONGER SERVICED

1шт.

16

A12458

SLEEVE

2шт.

17

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- pyrometer lead (Replaces A27814)

2шт.

18

321-1290

DECAL - pyrometer

1шт.
