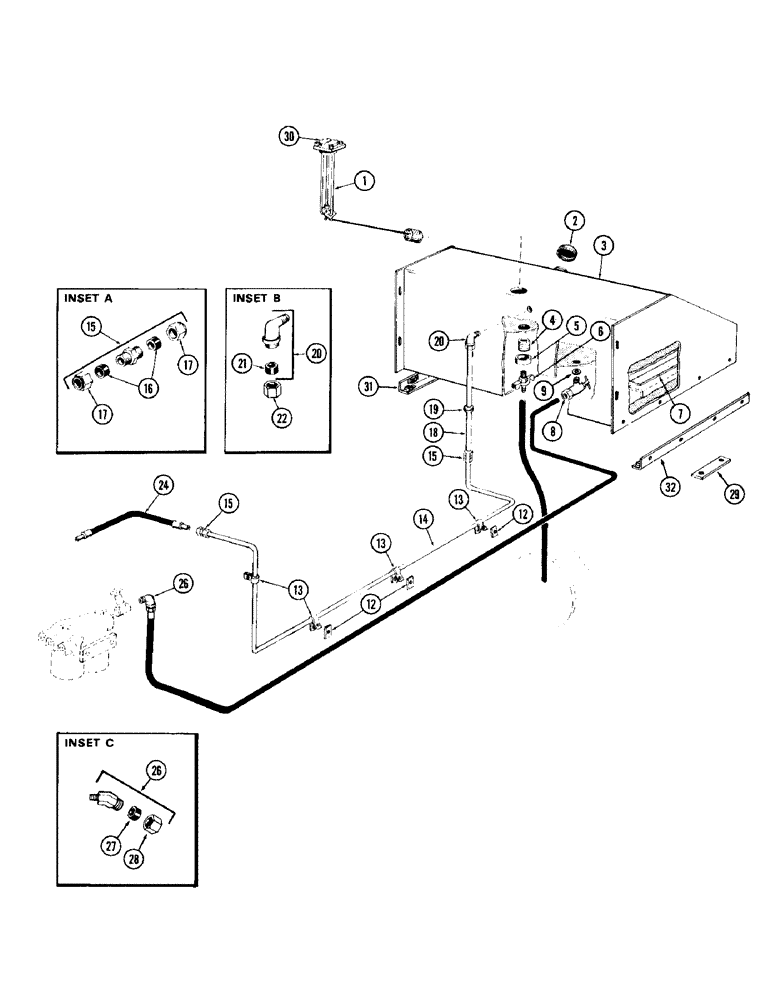

Запчасти Case IH 1470 (032) - FUEL TANK, (504BDT) DIESEL ENGINE, WITH NYLON FUEL LINE (03) - FUEL SYSTEM

1

T38598

GAUGE - fuel

1шт.

2

A33558

CAP

- filler

1шт.

3

T39729

TANK - fuel

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

22шт.

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

22шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

4

T38751

SUN VISOR

NIPPLE - 3/8" P.T. x 3"

1шт.

5

T38591

COVER

CAP - 3/8" P.T.

1шт.

6

217-107

VALVE

- water drain

1шт.

7

T39599

PAD - fuel tank mounting

2шт.

8

217-278

FITTING

VALVE - fuel shut-off

1шт.

9

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - shut off valve to fuel tank

1шт.

10

A75053

TUBE - tank to pump (Nylon)

1шт.

11

L11537

HOSE - water tap drain

1шт.

12

A16769

WASHER

SPACER - clip

3шт.

13

49832

CLAMP

CLIP - tube

4шт.

14

T38907

TUBE - long, fuel tank return (5/16") 0.312" OD

1шт.

15

222-4

FITTING,9/16"-24, Flex Tube

UNION ASSY. - 5/16" tube (See Inset A), Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

2шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

2шт.

18

T38592

TUBE - short, fuel tank return (5/16")

1шт.

19

NLS

NO LONGER SERVICED

- 5/16" tube, rear platform

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube (See Inset B), Includes: Ref. 21 and 22

1шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

24

L10042

HOSE - injector overflow

1шт.

26

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 3/8" tube, 9/16 P.T. x 45 degrees (See Inset C), Includes: Ref. 27 and 28

1шт.

27

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

28

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

29

T38590

STIFFENER - fuel tank mounting

2шт.

30

T39600

DIAL

- fuel gauge

1шт.

31

T38596

SUPPORT - tank, R.H.

1шт.

32

T38597

SUPPORT - tank, L.H.

1шт.
