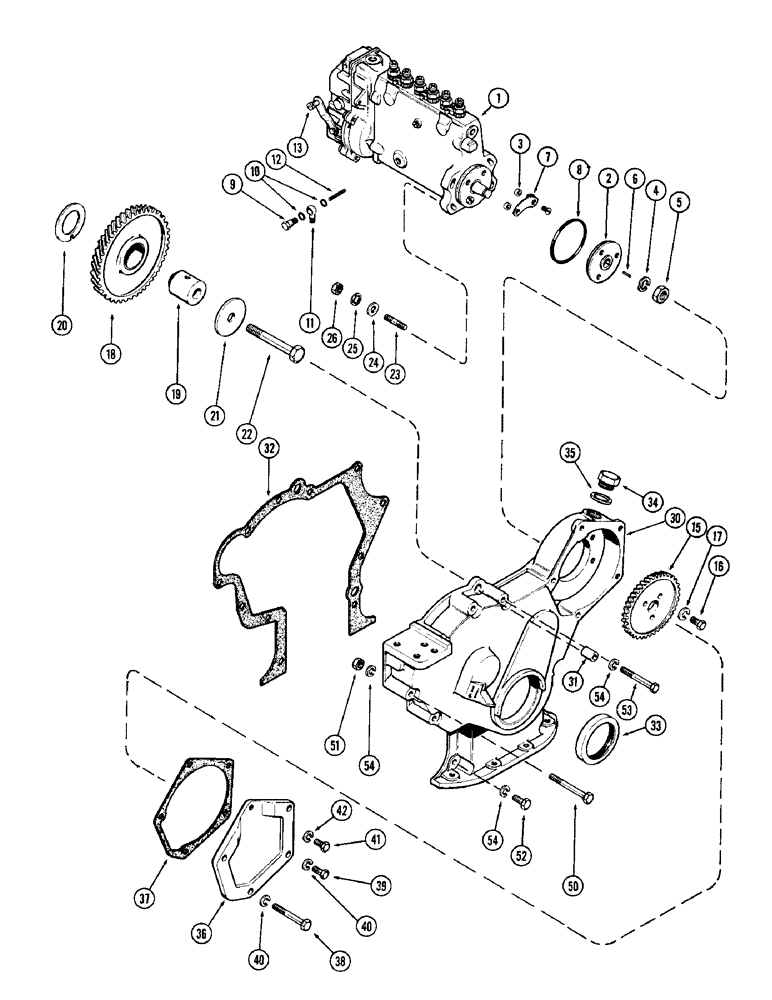

Запчасти Case IH 1470 (031A) - FUEL INJECTION PUMP AND DRIVE, (504BDT) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

1

A58539

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2000 RPM) (Bosch Pump No. PES6A95C420 LS 3007) (Bosch Governor No. EP/RSV 300-1000 AZB 515R), Includes: Ref. 2 - 12

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - timing pointer

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube banjo fitting

1шт.

10

A22381

WASHER

- tube banjo fitting (Copper)

2шт.

11

A25191

FITTING

- oil tube (Banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A59101

PIVOT

- injection pump lever stop control

1шт.

15

A58693

GEAR

- injection pump, w/o hub

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

A62542

GEAR

ASSY. - idler w/bushing (Replaced A58686)

1шт.

19

A58690

SHAFT

- idler gear

1шт.

20

A58691

WASHER

- idler gear shaft thrust

1шт.

21

A58692

PLATE

- idler gear shaft thrust

1шт.

22

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler gear Hex, 1/2"-13 x 4 1/4", G5

1шт.

23

A58689

STUD

- injection pump mounting

4шт.

24

A57470

WASHER

- 13/32 x 11/16 x 1/16"

4шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

30

A58609

COVER

ASSY. - timing gear, Includes: Ref. 31

1шт.

31

A58611

PIN

- timing gear cover dowel

2шт.

32

A58612

GASKET

- timing gear cover

1шт.

33

A57342

SEAL

- oil, crankshaft, front, 2-5/8 x 7/16"

1шт.

34

A21140

PLUG

- timing window

1шт.

35

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

36

A61053

COVER

- inj. pump gear (Aluminum) (Replaces A58614)

1шт.

37

A58615

GASKET

- inj. pump cover

1шт.

38

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

2шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

4шт.

41

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

50

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

51

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

53

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

3шт.

54

92-6

LOCK WASHER,3/8"

9шт.
