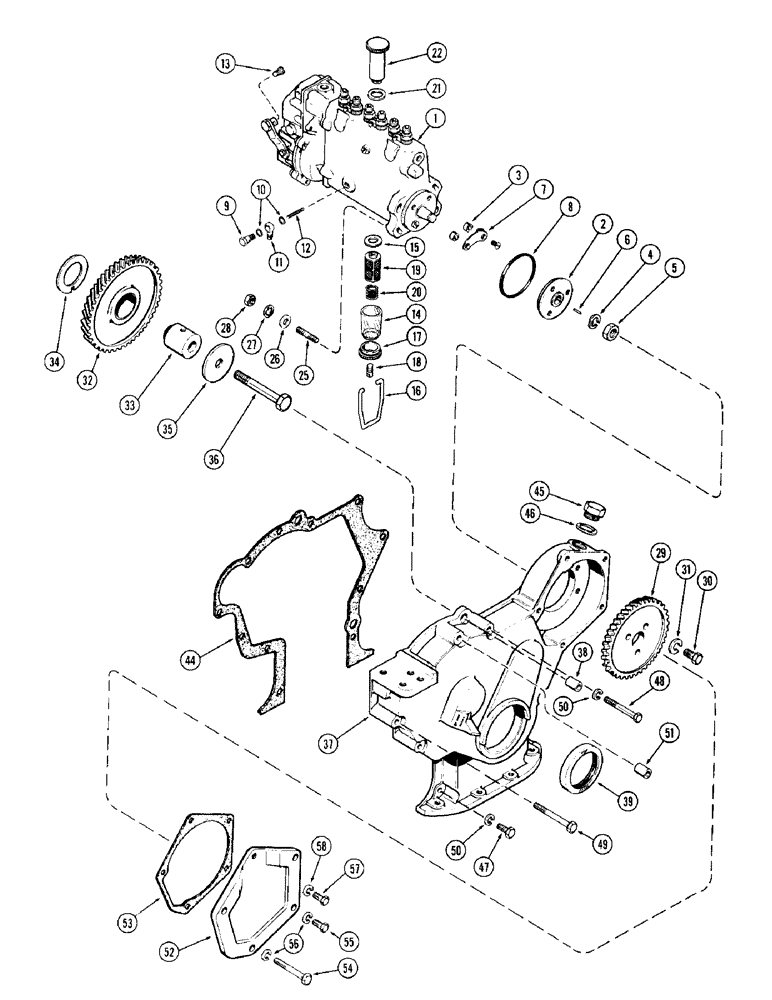

Запчасти Case IH 1470 (030) - FUEL INJECTION PUMP AND DRIVE, (504BDT) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

1

A62334

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2000 RPM), Includes: Ref. 2 - 22

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - timing pointer

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - sealing (2-21/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

banjo, lube oil tube

1шт.

12

A25190

SPRING

- lube oil fitting

1шт.

13

A44259

SCREW

- pump stop cable

1шт.

14

A43347

BOWL

- filter, transfer pump

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

GASKET - copper, primer & port

2шт.

22

A43343

CARTRIDGE

PRIMER - fuel, hand

1шт.

25

A58689

STUD

- pump mounting (3/8" N.C. x 1-7/8")

4шт.

26

A57470

WASHER

- stud (13/32 x 11/16" x 16 ga.)

4шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

29

A58693

GEAR

- drive, injection pump

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

A62542

GEAR

ASSY. - idler, w/bushing, pump drive (Replaced A58686)

1шт.

33

A58690

SHAFT

- idler gear

1шт.

34

A58691

WASHER

- thrust, idler shaft

1шт.

35

A58692

PLATE

thrust, idler shaft

1шт.

36

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2 x 4-1/2" N.C. hex.

1шт.

37

A58609

COVER

ASSY. - timing gear, Includes: Ref. 38

1шт.

38

A58611

PIN

- dowel

1шт.

39

A62049

OIL SEAL

- oil, crankshaft front

1шт.

44

A58612

GASKET

-, Serial Range: cover-block

1шт.

45

A21140

PLUG

- timing window

1шт.

46

A58613

SEALING WASHER

GASKET - plug, timing window

1шт.

47

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

48

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

2шт.

49

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex

3шт.

50

92-6

LOCK WASHER,3/8"

9шт.

51

A19774

BUSHING

SPACER - alternator pry point

1шт.

52

A61053

COVER

- pump drive

1шт.

53

A58615

GASKET

- cover, pump drive

1шт.

54

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

2шт.

55

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

56

92-6

LOCK WASHER,3/8"

4шт.

57

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

58

92-5

LOCK WASHER,5/16"

1шт.
