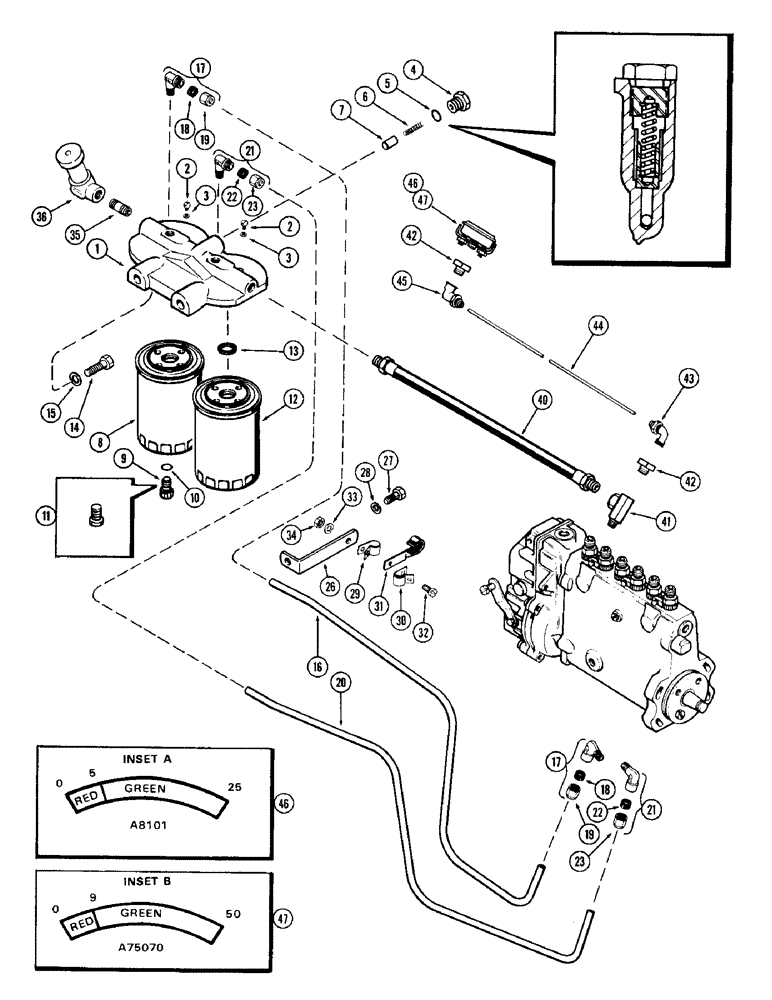

Запчасти Case IH 1470 (029A) - FUEL INJ. FILTER SYSTEM, RECIRCULATING TYPE, 504BDT, DIESEL ENGINE, FIRST USED ENG. S/N 23230001 (03) - FUEL SYSTEM

A58719

FILTER

ASSY. - primary (1st and 2nd stage), Includes: Ref. 1 - 7

1шт.

1

A58711

FILTER

HEAD - filter

1шт.

2

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

3

A20662

GASKET

WASHER - bleed screw

2шт.

4

A24916

PLUG

- relief valve

1шт.

5

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug, 1/2 x 11/16 x 3/32"

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A24917

PLUNGER

- relief valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin-on filters, Includes: Ref. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - 1st stage filter, Includes: Ref. 9 - 11

1шт.

9

G49080

PLUG

- filter drain (Nylon) (3/8" N.F.), Includes: Ref. 10 and 11

1шт.

10

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - (3/32 x 7/16 x 5/8")

1шт.

11

221-1661

PLUG

- metal, 1/8" P.T. hex.

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - 2nd stage filter, Includes: Ref. 13

1шт.

13

A42315

GASKET

- 2nd stage

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

A58714

TUBE

- 1st stage filter to pump (3/8" O.D. tube)

1шт.

17

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes: Ref. 18 and 19

2шт.

18

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

19

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

20

A58715

TUBE

- pump to 2nd stage filter (5/16" O.D. tube)

1шт.

21

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line, Includes: Ref. 22 and 23

2шт.

22

222-103

SLEEVE,5/16" Tube

1шт.

23

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

26

A58718

BRACKET

- filter, Serial Range: tubes-block

1шт.

27

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

49352

SPARE PART

CLIP - filter tube to bracket (5/16" tube)

1шт.

30

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - filter tube to bracket (3/8" tube)

1шт.

31

A59112

CLIP - hose

1шт.

32

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

25-104

NUT,1/4"-20, G5

1шт.

35

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - pipe, 1/4" x 1"

1шт.

36

A60042

PUMP

- hand primer

1шт.

36

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

36

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

40

A58716

HOSE

- 2nd stage, Serial Range: filter-pump

1шт.

41

A20539

FITTING

UNION - (In pump)

1шт.

42

A28061

FITTING

SNUBBER - fuel oil pressure gauge

2шт.

43

T39541

ELBOW

- male, pressure to, Serial Range: line-snubber

1шт.

44

T39542

TUBE - pressure gauge 0.125" OD x 53" L

1шт.

45

D35895

FITTING

ELBOW - female, pressure, Serial Range: line-snubber

1шт.

D27177

SLEEVE - for 1/8" tube

1шт.

D37178

NUT

- for 1/8" tube

1шт.

46

A8101

GAUGE

- fuel oil pressure (0 to 25 PSI) (See Inset A)

1шт.

47

A75070

GAUGE - fuel oil pressure (0 to 50 PSI) (See Inset B)

1шт.
