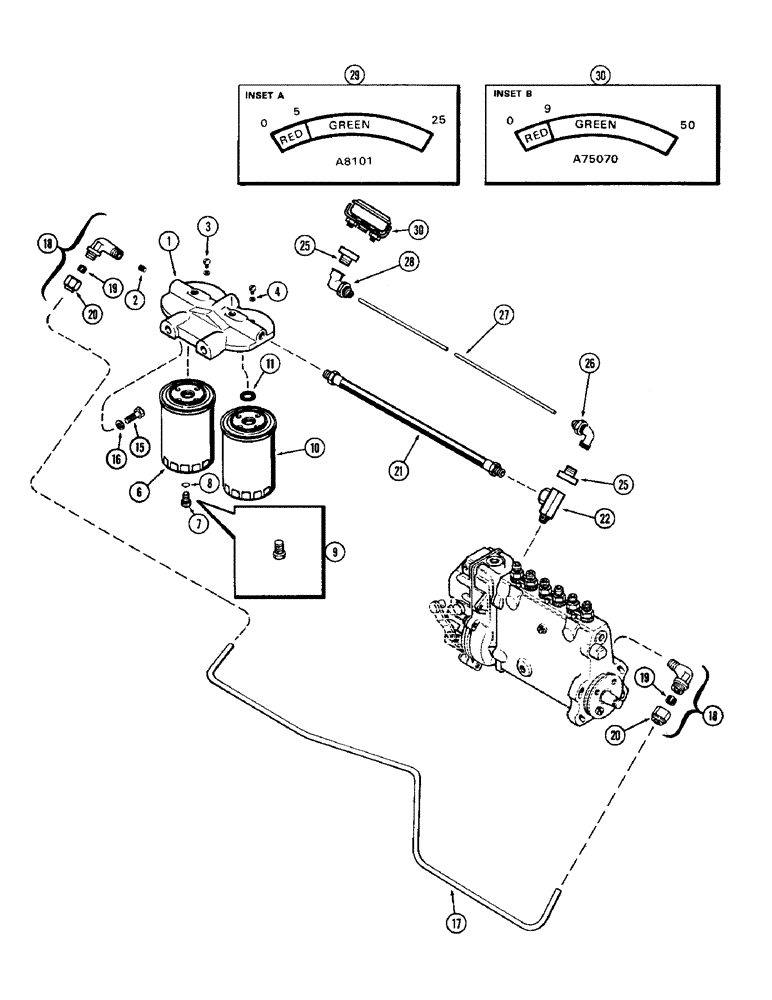

Запчасти Case IH 1470 (028) - FUEL INJECTION FILTER SYSTEM, (504BDT) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2323001 (03) - FUEL SYSTEM

A62347

FILTER

ASSY. - fuel, Includes: Ref. 1 - 11

1шт.

1

A62339

HEAD

ASSY. - filter mounting, Includes: Ref. 2

1шт.

2

221-1041

PLUG

- pipe, 1/8" hex. socket

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A20662

GASKET

WASHER - bleeder screw

2шт.

CASA41745

FUEL FILTER

ELEMENT KIT - fuel filter, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage, Includes: Ref. 7 - 9

1шт.

7

G49080

PLUG

- filter drain (Nylon) (3/8" N.F.)

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - (3/32 x 7/16 x 5/8")

1шт.

9

221-1661

PLUG

- metal, 1/8" P.T. hex.

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage, Includes: Ref. 11

1шт.

11

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube x 1/4" P.T., Includes: Ref. 19 and 20

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

21

A58716

HOSE

- filter to pump (17")

1шт.

22

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

25

A28061

FITTING

SNUBBER - fuel oil pressure tube & gauge

2шт.

26

T39541

ELBOW

- pressure tube

1шт.

27

T39542

TUBE - pressure gauge 0.125" OD x 53" L

1шт.

28

D35895

FITTING

ELBOW - pressure, Serial Range: tube-gauge

1шт.

29

A8101

GAUGE

- fuel pressure (0 to 25 PSI) (See Inset A)

1шт.

30

A75070

GAUGE - fuel pressure (0 to 50 PSI) (See Inset B)

1шт.
