(026) - FUEL INJECTION SYSTEM, (504BDT) DIESEL ENGINE

Запчасти Case IH 1470 (026) - FUEL INJECTION SYSTEM, (504BDT) DIESEL ENGINE (03) - FUEL SYSTEM

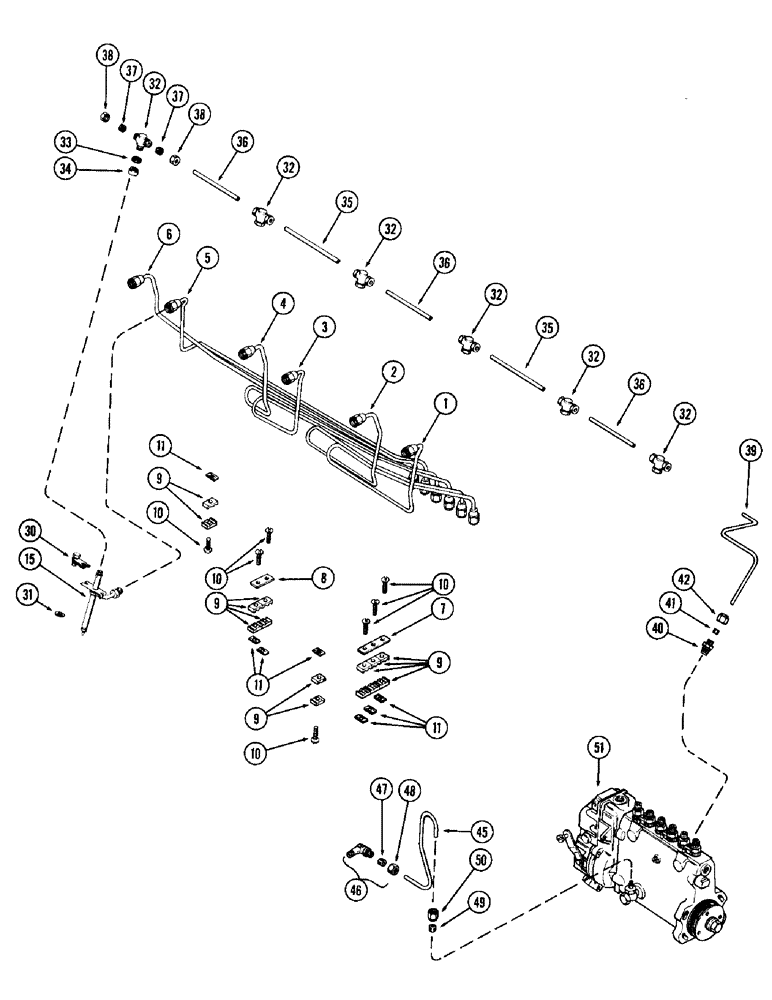

Схема запчастей Case IH 1470 - (026) - FUEL INJECTION SYSTEM, (504BDT) DIESEL ENGINE (03) - FUEL SYSTEM
33
38
31
4
7
50
35
9
51
35
10
45
36
32
3
32
36
32
8
40
34
37
30
9
39
32
38
32
6
9
47
15
32
41
11
10
1
9
49
42
11
48
37
10
10
2
5
36
11
46
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A58702

TUBE

Fuel injection, #1 cylinder (Replaces A59141)

1шт.

2

A58703

TUBE

Fuel injection, #2 cylinder (Replaces A59142)

1шт.

3

A58704

TUBE

Fuel injection, #3 cylinder (Replaces A59143)

1шт.

4

A58705

TUBE

Fuel injection, #4 cylinder (Replaces A59144)

1шт.

5

A58706

TUBE

Fuel injection, #5 cylinder (Replaces A59145)

1шт.

6

A58707

TUBE

Fuel injection, #6 cyliner (Replaces A59146)

1шт.

7

A58708

PLATE

Injection tube bracket (6 line)

1шт.

8

A58710

PLATE

Injection tube bracket (4 line)

1шт.

9

A58709

BRACKET

Injection tube

14шт.

10

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

Mach.

7шт.

11

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY, fuel injection (See Figure 027A)

6шт.

30

A58695

CLAMP

ASSY - injection nozzle

6шт.

31

A58696

SPACER

SPACER - nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

Nozzle, leak-off tee

6шт.

34

A58961

NUT

Leak-off, Serial Range: tee-nozzle

6шт.

35

A58964

TUBE

Leak-off (5-5/8" long)

2шт.

36

A58965

TUBE

Leak-off (4-5/8" long)

3шт.

37

222-102

SLEEVE,1/4" Tube

Nozzle cap

12шт.

38

87017024

TUBE NUT,1/2"-24

Nozzle cap

12шт.

39

A58963

TUBE

Leak-off, #1, Serial Range: nozzle-pump

1шт.

40

A28098

VALVE

Check (In inj. pump), Includes Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

2шт.

42

87017024

TUBE NUT,1/2"-24

For 1/4" tube

2шт.

45

A58717

TUBE

Oil, Serial Range: gallery-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4 x 1/8" P.T., Includes Ref. 47 and 48

2шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

For 1/8" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

For 1/8" tube

1шт.

51

A62334

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY - Injection (Repairs page 30) (1st used eng. S/N 2323001)

1шт.

51

A58539

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY - Injection (Repairs 31A) (Used prior to eng. S/N 2323001)

1шт.
