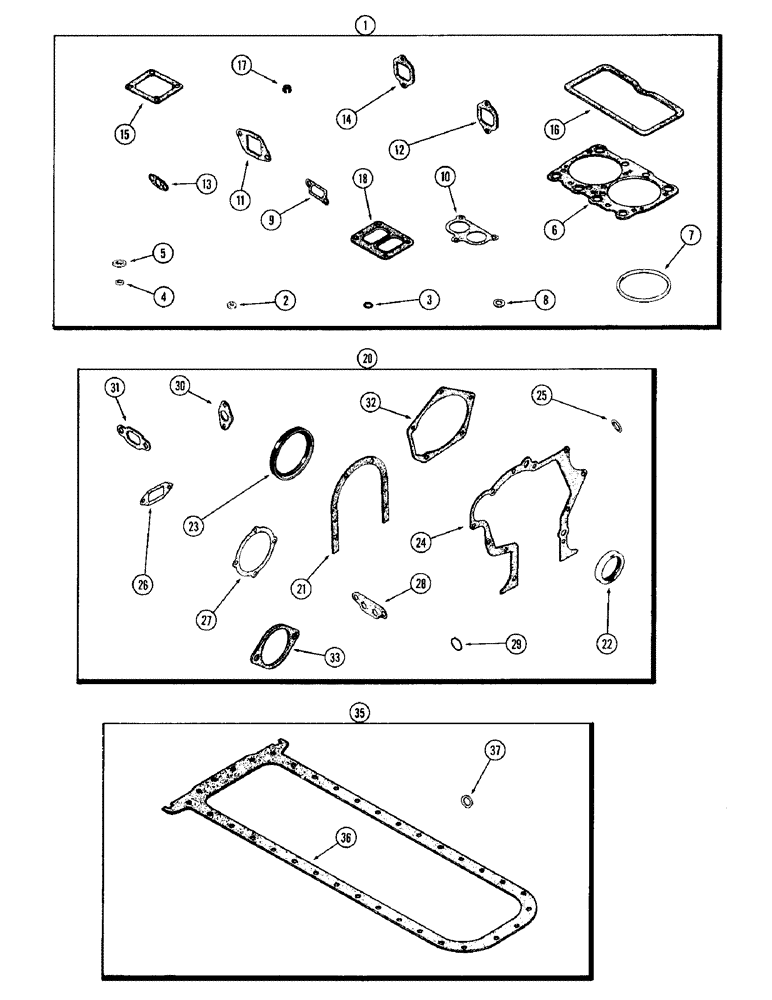

Запчасти Case IH 1470 (025A) - ENGINE GASKET KITS, (504BDT) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2511310 (02) - ENGINE

1

A41769

GASKET

VALVE GRIND GASKET KIT - (Order A43192), Includes: Ref. 2 - 18

1шт.

For complete engine overhaul order 1-A43192, 1-A42096 & 1-A41761

1шт.

2

A23684

GASKET

GASKET - valve cover stud, 15/32 x 7/8 x 1/8" rubber

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube, 3/16 x 5/16 x 1/16"

3шт.

4

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

SEAT - carbon nozzle tip

6шт.

5

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

6шт.

6

A59121

CYLINDER HEAD GASKET

- cylinder head

3шт.

7

A58622

RING

- cylinder head fire, std.

6шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube to cover, 11/16 x 1-1/4 x 1/4"

3шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

13

A58892

GASKET,1.59mm Thk

- oil drain tube, turbo-charger

1шт.

14

A58895

GASKET

- exhaust manifold, turbo-charger

6шт.

15

A58910

GASKET

- air intake tube

1шт.

16

A58928

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

17

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake valve stem

12шт.

18

A58899

GASKET,0.45mm Thk

- turbo-charger

1шт.

20

A42096

GASKET

CYLINDER BLOCK GASKET KIT - , Includes: Ref. 21 - 33

1шт.

For complete engine overhaul order 1-A43192, 1-A42096 & 1-A41761

1шт.

21

A32830

GASKET

- rear seal retainer

1шт.

22

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 7/16"

1шт.

23

A62050

OIL SEAL

- oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2"

1шт.

24

A58612

GASKET

- timing gear cover

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

26

A58646

GASKET

- water pump body

1шт.

27

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

28

A58756

OIL PAN GASKET SET

- oil filter base (Not applicable)

1шт.

30

A58680

OIL PAN GASKET SET

- oil cooler tube

1шт.

31

A58670

GASKET

- heat exchanger head

1шт.

32

A58615

GASKET

- pump drive cover

1шт.

33

A58617

GASKET

- auxiliary drive opening

1шт.

35

A41761

GASKET

OIL PAN GASKET KIT -, Includes: Ref. 36 and 37

1шт.

For complete engine overhaul order 1-A43192, 1-A42096 & 1-A41761

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 35)

1шт.

37

A58933

OIL PAN GASKET SET

- oil pan, drain plug

1шт.
