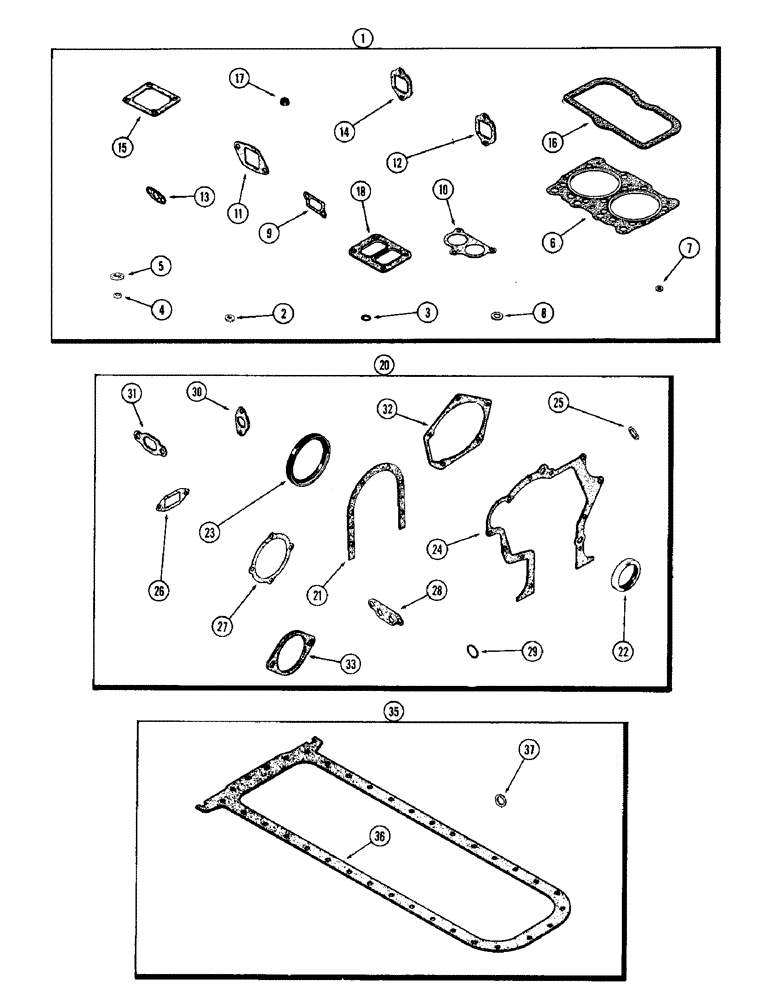

Запчасти Case IH 1470 (024) - ENGINE GASKET KITS, (504BDT) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2511310 (02) - ENGINE

1

A43192

GASKET

KIT - valve grind, Includes: Ref. 2 - 18

1шт.

For complete engine overhaul order 1-A43192, 1-A42096 & 1-A41761

1шт.

2

A23684

GASKET

GASKET - valve cover stud

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube

3шт.

4

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

SEAT - carbon nozzle tip

6шт.

5

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

6шт.

6

A64113

CYLINDER HEAD GASKET

- cylinder head

3шт.

7

A34133

GASKET

- breather screw

3шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

13

A58892

GASKET,1.59mm Thk

- oil drain tube, turbocharger

1шт.

14

A58895

GASKET

- exhaust manifold, turbocharger

6шт.

15

A58910

GASKET

- air intake tube

1шт.

16

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

17

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake valve stem

12шт.

18

A58899

GASKET,0.45mm Thk

- turbocharger

1шт.

20

A42096

GASKET

KIT - cylinder block, Includes: Ref. 21 - 33

1шт.

For complete engine overhaul order 1-A43192, 1-A42096 & 1-A41761

1шт.

21

A32830

GASKET

- rear seal retainer

1шт.

22

A62049

OIL SEAL

- oil, crankshaft front

1шт.

23

A62050

OIL SEAL

. oil, crankshaft, rear

1шт.

24

A58612

GASKET

- timing gear cover

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

26

A58649

GASKET

- water pump body

1шт.

27

A58646

GASKET

- water pump, Serial Range: body-block

1шт.

28

A58756

OIL PAN GASKET SET

- oil filter base (Not applicable)

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil filter base (Replaces A58602)

3шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil filter base, 15/16 x 1-1/8 x 3/32"

3шт.

30

A58680

OIL PAN GASKET SET

- oil cooler tube

1шт.

31

A58670

GASKET

- heat exchanger head

1шт.

32

A58615

GASKET

- pump drive cover

1шт.

33

A58617

GASKET

- auxiliary drive opening

1шт.

35

A41761

GASKET

KIT - oil pan, Includes: Ref. 36 and 37

1шт.

For complete engine overhaul order 1-A43192, 1-A42096 & 1-A41761

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order Ref. 35)

1шт.

37

A58933

OIL PAN GASKET SET

- oil pan drain plug

1шт.
