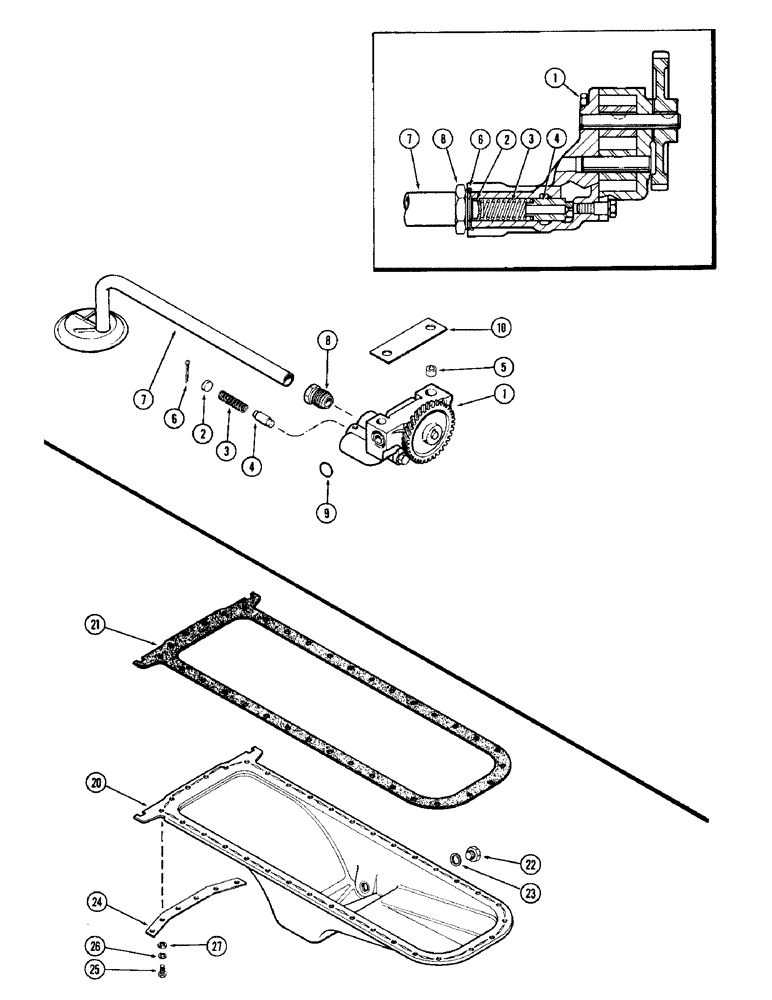

Запчасти Case IH 1470 (022) - OIL PUMP, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A61809

PUMP

ASSY. - oil, Includes: Ref. 2 - 6

1шт.

2

41-1011

PLUG,Cup, 11/16"

- relief valve, 45/64" cup type

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A34992

PISTON

VALVE - relief

1шт.

5

A58915

SLEEVE

- pump to bearing cap

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A62033

SCREEN

TUBE - oil suction, w/screen

1шт.

8

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

9

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - pump to block, 15/16 x 1-1/8 x 3/32"

1шт.

10

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

20

A62410

PAN

- oil

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 24)

1шт.

22

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

23

A58933

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

24

A58932

STRAP

- reinforcing, oil pan

1шт.

25

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Pan to block, oil Hex, 3/8"-16 x 7/8", G5, Full Thd

32шт.

26

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.

27

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", oil pan

32шт.
