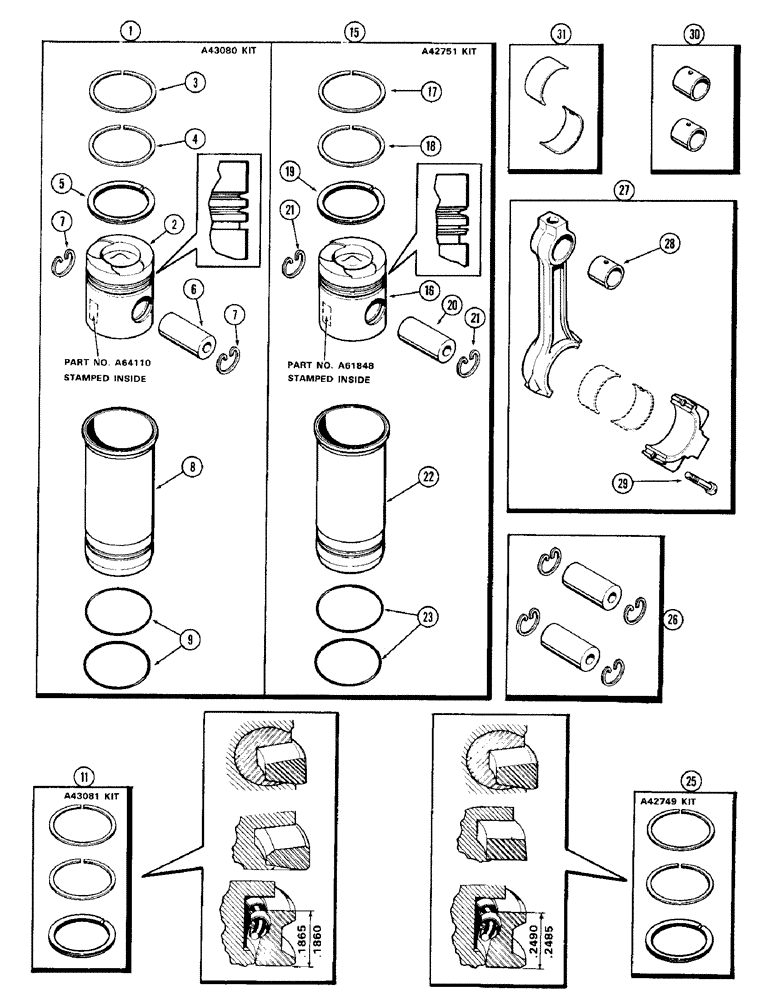

Запчасти Case IH 1470 (020) - PISTON ASSEMBLY AND CONNECTING RODS, (504BDT) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2501934 (02) - ENGINE

1

A43080

SLEEVE

PISTON & SLEEVE KIT - (Set of 2), Includes: Ref. 2 - 4

3шт.

2

A64110

PISTON

PISTON - (4-5/8" bore) (Part No. A64110 stamped on casting, inside of piston)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove) (Order Ref. 11), Includes: Ref. 6 - 9

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 26)

2шт.

7

A58585

RING, SNAP

RING SNAP RING - snap, piston pin retaining

4шт.

8

A58570

SLEEVE

SLEEVE - piston (Cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

A43082

SET OF RINGS

RING KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A43081

RING

RING KIT - re-ring (Set of 1)

6шт.

15

A42751

SPARE PART PISTON & SLEEVE KIT - (Set of 2) (Order A43080 kit), used prior to eng s/n 2501934, Includes: Ref. 16 - 23

3шт.

16

A61848

PISTON

PISTON - (4-5/8" bore) (Part No. A61848 stamped on casting, inside of piston)

2шт.

17

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 25), used prior to eng s/n 2501934

2шт.

18

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref. 25), used prior to eng s/n 2501934

2шт.

19

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove) (Order Ref. 25), used prior to eng s/n 2501934

2шт.

20

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 26), used prior to eng s/n 2501934

2шт.

21

A58585

RING, SNAP

RING SNAP RING - snap, piston pin retaining, used prior to eng s/n 2501934

4шт.

22

A58570

SLEEVE

SLEEVE - piston (Cylinder liner), used prior to eng s/n 2501934

2шт.

23

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing, used prior to eng s/n 2501934

4шт.

A42748

RING

RING KIT - re-ring (Set of 6), used prior to eng s/n 2501934, Includes: Ref. 25

1шт.

25

A42749

RING

RING KIT - re-ring (Set of 1), used prior to eng s/n 2501934

6шт.

26

A41750

PIN

PIN KIT - (set of 2 pins w/4 rings), used prior to eng s/n 2501934

3шт.

27

A58578

ROD

ROD ASSY. - connecting, used prior to eng s/n 2501934, Includes: Ref. 28 and 29

6шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 30), used prior to eng s/n 2501934

1шт.

29

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap (Replaces A62184), used prior to eng s/n 2501934

2шт.

30

A41756

BUSHING

BUSHING KIT - piston pin (Set of 2), used prior to eng s/n 2501934

3шт.

31

A41758

BEARING LINER

INSERT KIT - connecting rod brg. (std.) (Set of 2), used prior to eng s/n 2501934

6шт.

31

A41899

BEARING LINER

INSERT KIT - connecting rod brg. (-.002") (Set of 2), used prior to eng s/n 2501934

6шт.

31

A41900

BEARING LINER

INSERT KIT - connecting rod brg. (-.010") (Set of 2), used prior to eng s/n 2501934

6шт.

31

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

31

AC65032

CORE-ROD CONNECTING

Return Part Number Core-Connecting Rod

6шт.

31

A41901

BEARING LINER

INSERT KIT - connecting rod brg. (-.020") (Set of 2), used prior to eng s/n 2501934

6шт.

31

A41902

BEARING LINER

INSERT KIT - connecting rod brg. (-.030") (Set of 2), used prior to eng s/n 2501934

6шт.
