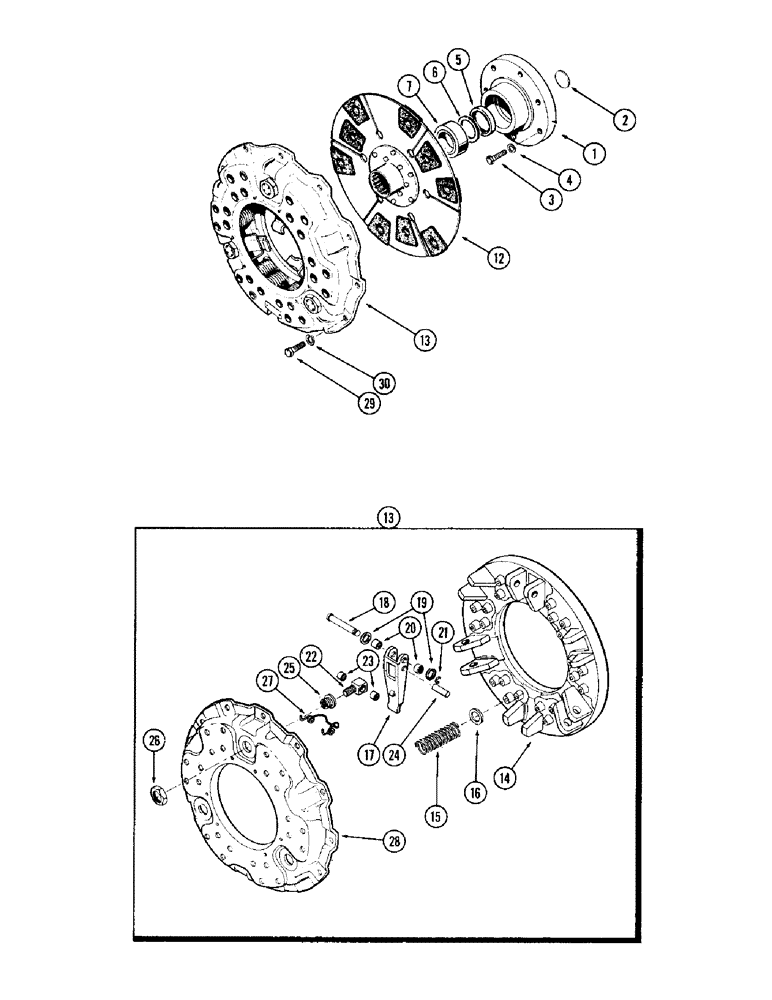

Запчасти Case IH 1470 (019A) - P.T.O. ADAPTER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

T39147

ADAPTER ASSY. - P.T.O. drive, Includes: Ref. 2

1шт.

2

41-24

PLUG

- 1-1/2" expansion

1шт.

3

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

4

92-7

LOCK WASHER,7/16"

8шт.

5

A56626

OIL SEAL

- oil, adapter (Also order Ref. 6)

1шт.

6

A56627

WASHER

- adapter seal (Also order Ref. 5)

1шт.

7

A55664

BALL BEARING

BEARING - P.T.O. adapter

1шт.

12

A151116

DISC

. ASSY. - clutch

1шт.

13

A151115

COVER

ASSY. - clutch, Includes: Ref. 14 - 18

1шт.

14

A55912

PLATE - pressure, clutch

1шт.

15

A55917

SPRING

- pressure plate, clutch

21шт.

It is recommended that a complete set of springs be installed when clutch is repaired.

1шт.

16

A55924

INSULATOR

- pressure spring, clutch

21шт.

17

A55927

LEVER

- clutch release

3шт.

18

A55925

PIN - lever pivot, clutch

3шт.

19

195-29

WASHER,7/16"

- pivot pin, 15/32 x 59/64 x 1/16", clutch, Includes: Ref. 20 - 29

6шт.

20

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

BEARING - needle, pivot pin, clutch

6шт.

21

A55926

RING

"E" RING - pivot pin retaining, clutch

3шт.

22

A55918

EYEBOLT ASSY., clutch, Includes: Ref. 23

3шт.

23

NSS

NOT SOLD SEPARAT

BEARING - needle, eyebolt, clutch

2шт.

24

A55921

PIN - eyebolt, clutch

3шт.

25

A55923

NUT - adjusting, clutch

3шт.

26

A55920

NUT - lock, eyebolt, clutch

3шт.

27

A55922

SPRING - anti-rattle, clutch

3шт.

29

A55914

COVER

- clutch

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clutch plate to flywheel Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

30

92-6

LOCK WASHER,3/8"

12шт.
