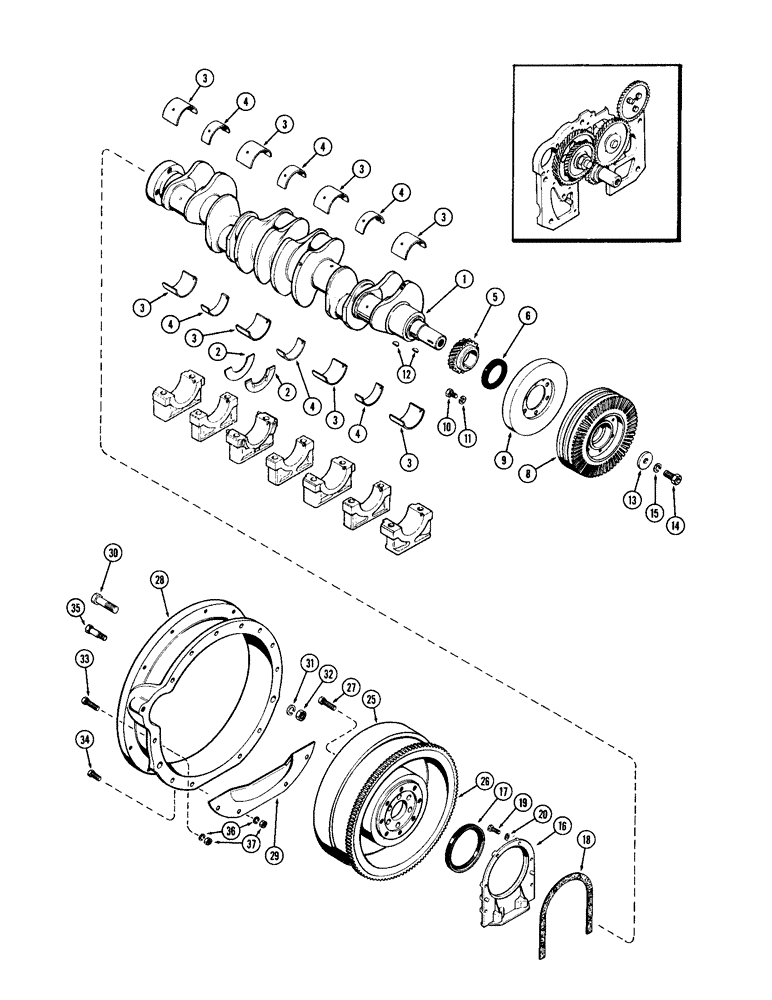

Запчасти Case IH 1470 (018) - CRANKSHAFT, FLYWHEEL AND HOUSING, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A65097

CRANKSHAFT - (Replaces A58572)

1шт.

2

A58565

WASHER

- thrust (Standard)

2шт.

2

A42447

WASHER

- thrust (.006" oversize)

2шт.

3

A43090

BEARING LINER

INSERT KIT - main brg. (Wide) (Std.) (Replaces A41752)

4шт.

3

A43124

LINING

INSERT KIT - main brg. (Wide) (-.002") (Replaces A41907)

4шт.

3

A43125

CRANKSHAFT BEARING

INSERT KIT - main brg. (Wide) (-.010") (Replaces A41908)

4шт.

3

A43126

LINING

INSERT KIT - main brg. (Wide) (-.020") (Replaces A41909)

4шт.

3

A43127

LINING

INSERT KIT - main brg. (Wide) (-.030") (Replaces A41910)

4шт.

4

A43089

BEARING LINER

INSERT KIT - main brg. (Narrow) (Std.) (Replaces A41759)

3шт.

4

A43120

LINING

INSERT KIT - main brg. (Narrow) (-.002") (Replaces A41903)

3шт.

4

A43121

SET OF CONN ROD BRGS STD

INSERT KIT - main brg. (Narrow) (-.010") (Replaces A41904)

3шт.

4

A43122

LINING

INSERT KIT - main brg. (Narrow) (-.020") (Replaces A41905)

3шт.

4

A43123

SET OF CONN ROD BRGS STD

INSERT KIT - main brg. (Narrow) (-.030") (Replaces A41906)

3шт.

5

A58573

GEAR

- crankshaft timing

1шт.

6

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 7/16"

1шт.

8

A58828

PULLEY

1шт.

9

A58900

DAMPER

- viscous, Includes: Ref. 10 and 11

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley & gear #C, 5/16" x 1 1/8", HT

2шт.

13

A27903

WASHER

- pulley, 21/32 x 2-1/8 x 1/4"

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley, 5/8 x 1-1/2" N.F. spec.

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

A57457

RETAINER

- rear oil seal

1шт.

17

A62050

OIL SEAL

- oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2"

1шт.

18

A32830

GASKET

- rear oil seal retainer

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

20

92-6

LOCK WASHER,3/8"

6шт.

25

A58913

FLYWHEEL

ASSY., Includes: Ref. 26

1шт.

26

A27920

GEAR

- ring, starter

1шт.

27

114-621

BOLT

- 5/8 x 1-3/4" N.F. spec.

6шт.

28

A57846

HOUSING - flywheel

1шт.

29

A58931

GUARD

SHIELD - dust, flywheel housing

1шт.

30

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 3/4 x 3" N.C., 12 pt. sckt, hd.

2шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

32

25-1012

NUT,3/4"-10, G5

2шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

33

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

3шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

35

A61040

STEP BOLT

BOLT - 1/2 x 3" N.C. hex., shoulder

1шт.

35

A61041

STEP BOLT

BOLT - 1/2 x 2-3/8" N.C. hex., shoulder

1шт.

36

92-8

LOCK WASHER,1/2"

12шт.

37

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

9шт.
