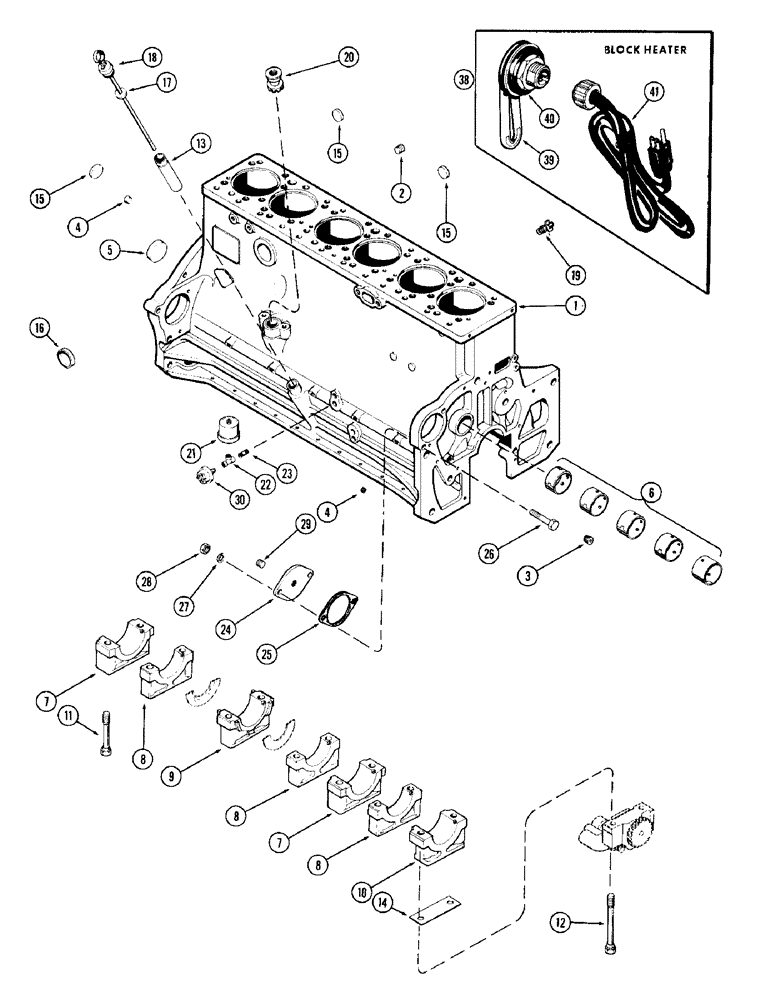

Запчасти Case IH 1470 (016) - CYLINDER BLOCK ASSEMBLY, (504BDT) DIESEL ENGINE (02) - ENGINE

A42763

BLOCK ASSY. - cylinder, short (Not illust.) (Incl. stripped block, camshaft & brgs., crankshaft & brgs., timing gears, piston assy., connection rods & brgs.) (Order A43079), Includes: Ref. 1 - 16

1шт.

1

A41765

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A58515), Includes: Ref. 2 - 14

1шт.

A151233

CRANKCASE

Engine Short Block, Tier 0

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC151233

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

2

221-845

PLUG,Hex Soc, 3/4"-14

- turbo drain hole (Discard)

1шт.

3

221-1843

PLUG

- oil gallery, 3/8" P.T. hex. sckt. hd.

3шт.

4

221-41

PLUG

- oil gallery, 1/8" P.T. sltd, hdless.

6шт.

5

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

6

A23544

BUSHING

SET - camshaft

1шт.

7

A58562

CAP

- main bearing (2-27/64" wide)

2шт.

8

A58563

CAP

- main bearing (1-27/64" wide)

3шт.

9

A58564

CAP

- main bearing, thrust (2-7/16" wide)

1шт.

10

A58561

CAP

- main bearing, front (2-7/16" wide)

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap, 5/8 x 4-1/2" N.C. spec.

12шт.

12

A58567

STEP BOLT

BOLT - front bearing cap & oil pump, 5/8 x 6-13/16" N.C. spec

2шт.

13

A34540

TUBE

- oil gauge socket

1шт.

14

A58859

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type

3шт.

16

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup type

1шт.

17

A65051

DIPSTICK

GAUGE ASSY. - oil level (Dipstick) (Full mark 2-9/32" from tip) (1st used eng. ser. no. 2503651), Includes: Ref. 18

1шт.

18

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - 3/4 x 1 x 1/8"

2шт.

17

A57049

DIPSTICK

GAUGE ASSY. - oil level (Dipstick) (Full mark 1-3/4" from tip) (Used prior to eng. ser. no. 2503651), Includes: Ref. 18

1шт.

18

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - dipstick, 3/4 x 1 x 1/8"

2шт.

19

A23656

COCK, DRAIN

COCK - drain, cylinder block

1шт.

20

A34266

DRIVE

ASSY. - tachometer

1шт.

21

A35031

SENDER UNIT

UNIT - sending, engine oil pressure

1шт.

22

221-421

TEE,1/8" NPT

- 1/8" pipe

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8 x 3/4" pipe

1шт.

24

A58891

COVER

- pump mounting

1шт.

25

A58617

GASKET

- cover

1шт.

26

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

29

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. hex. sckt. hd.

1шт.

30

D28798

SWITCH

- alternator pressure, w/ground wire

1шт.

38

A42279

HEATER

ASSY. - block, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT ASSY. - heater, block

1шт.

40

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater (1-3/4 x 2 x 1/8"), block

1шт.

41

A42297

LAMP

CORD ASSY. - heater, w/plugs, block

1шт.
