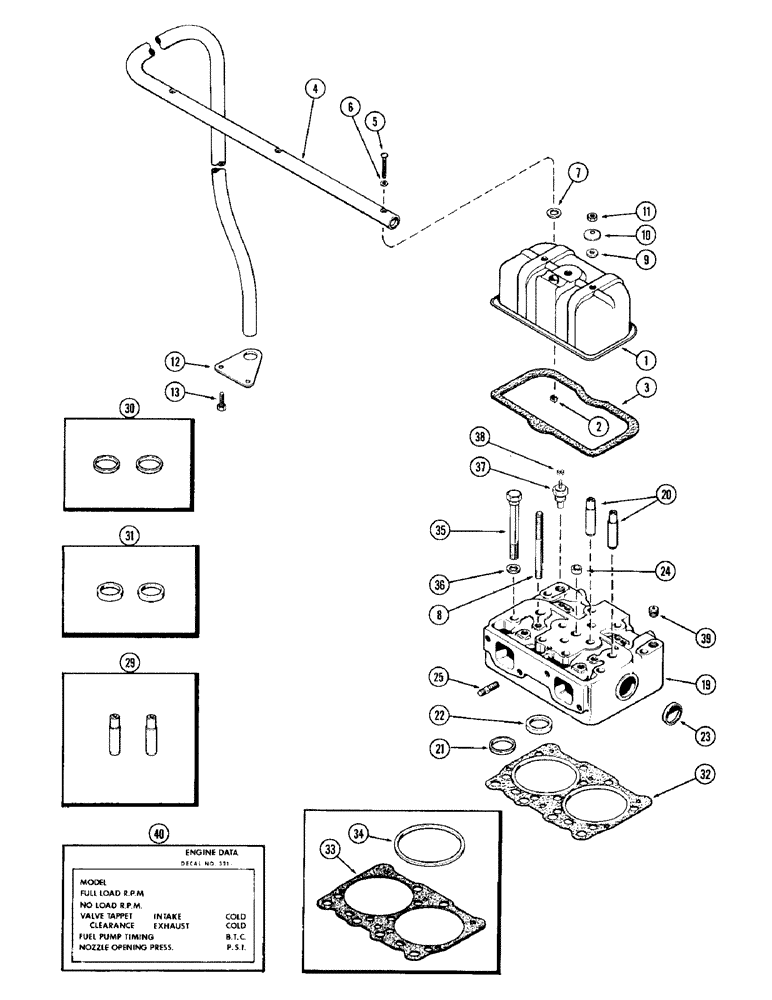

Запчасти Case IH 1470 (012) - CYLINDER HEAD AND COVER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSY. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube, 1/4" N.C. cage

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover (Replaces A58928)

3шт.

4

A62516

TUBE

TUBE - breather (Replaces A58839)

1шт.

5

75-440

SCREW

SCREW - breather tube, 1/4 x 2-1/2" N.C. rd. hd.

3шт.

6

A34133

GASKET

GASKET - tube, upper, 9/32 x 1/2 x 3/4" fiber

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower, 11/16 x 1-1/4 x 1/4"

3шт.

8

A60885

STUD

STUD - rocket arm brkt. & cyl. head cover (7/16" N.C. x 5-7/8")

6шт.

9

A23684

GASKET

GASKET - cover stud, 15/32 x 7/8 x 1/8" rubber

6шт.

10

A23683

WASHER

WASHER - cover stud, 15/32 x 1-25/32 x 1/16" dished

6шт.

11

25-107

NUT,7/16"-14, G5

NUT - cover retaining, 7/16" N.C. hex.

6шт.

12

A58734

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. Sems

2шт.

19

A60558

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A60559), Includes: Ref. 20 - 24

3шт.

19

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

19

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - intake & exhaust (Order Ref. 29)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat (Order Ref. 30)

2шт.

22

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 31)

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-41/64" cup type

2шт.

24

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" cup type

1шт.

25

A59077

STUD

STUD - manifold mounting, 3/8" N.C. x 1-13/16"

24шт.

29

A41781

GUIDE

GUIDE KIT - intake & exhaust valve (Set of 2)

6шт.

30

A42259

INSERT

INSERT KIT - intake valve seat (Set of 2)

3шт.

31

A44576

INSERT

INSERT KIT - exhaust valve seat (Set of 2) (Repl. A41757)

3шт.

32

A64113

CYLINDER HEAD GASKET

GASKET - cylinder head (1st used eng. ser. no. 2511310)

3шт.

33

A59121

CYLINDER HEAD GASKET

GASKET - cylinder head (Used prior to eng. ser. no. 2511310)

3шт.

34

A58622

RING

RING - fire, cylinder head (Std.) (Used w/A59121)

6шт.

34

NLS

NO LONGER SERVICED

RING - fire, cylinder head (Oversize)

6шт.

35

A62732

STEP BOLT

BOLT - cylinder head, 5/8 x 5-41/64" N.C. spec.

30шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt, 21/32 x 1 x 1/8"

30шт.

37

F13156

SENDER UNIT

- temperature sending (In rear head)

1шт.

38

129-661

NUT

NUT - sending nut, #10 N.F. hex. brass

1шт.

39

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - sending unit hole, 3/8" P.T. sckt. hd.

5шт.

40

321-2307

DECAL - engine data

1шт.
