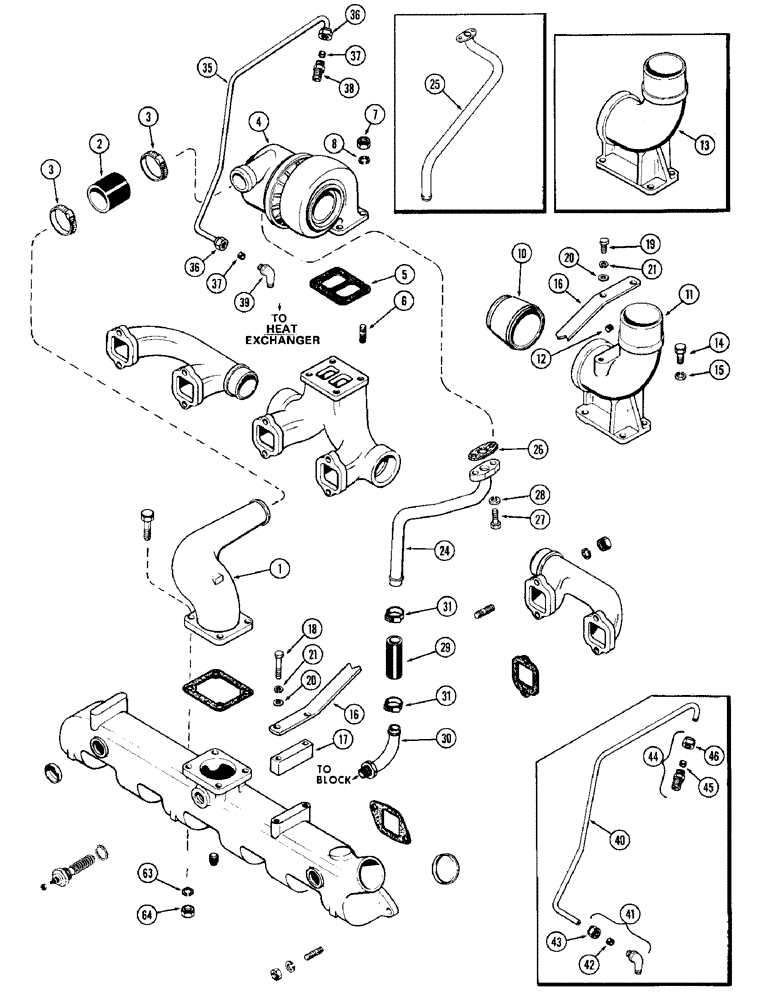

Запчасти Case IH 1470 (011A) - TURBO-CHARGER, (504BDT) DIESEL ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

1470

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A58903

ELBOW UNION

Union Elbow ELBOW - manifold, Serial Range: intake-turbo-charger

1шт.

2

A58894

HOSE

HOSE - air intake elbow (2" I.D. x 2-3/8")

1шт.

3

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

4

A41956

TURBOCHARGER

TURBO-CHARGER - (Original equipment)

1шт.

4

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

4

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

4

A42052

CORE-TURBOCHARGER

Return Part Number, Turbo-Charger - do not use this part no. for ordering this part no. is to be used only in requesting return authority on used Garret Turbo-Charger which you wish to return for credit

1шт.

5

A58899

GASKET,0.45mm Thk

GASKET - turbo-charger to exhaust manifold

1шт.

6

A29356

STUD

STUD - 3/8" N.C. x 1-1/2"

4шт.

7

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

4шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

A58896

SLEEVE

CONNECTOR - exhaust elbow, turbo-charger

1шт.

11

A61941

ELBOW

ELBOW - exhaust, turbo-charger (w/pad for A61944 brace) (1st used eng. SN 2313822)

1шт.

12

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - elbow (1/4" P.T., sq. hd.)

1шт.

13

A58904

ELBOW

ELBOW - exhaust, turbo-charger (w/out brace pad) (Used prior to eng. SN 2313822)

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

16

A61944

BRACE

BRACE - elbow to intake manifold (Used eng. SN 2313822 & after)

1шт.

17

A61945

SPACER

SPACER - intake manifold (Used eng. SN 2313822 & after)

1шт.

18

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - brace to manifold (3/8 x 2-1/2" N.C. hex.)

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Brace to elbow (3/8 x 2-1/2" N.C. hex.)

2шт.

20

95-6

WASHER,3/8"

WASHER - (7/16 x 1 x 5/64")

4шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

24

A62518

TUBE

TUBE - oil drain, turbo-charger (1st used eng. SN 2330155) (Replaced A61666)

1шт.

25

A61666

TUBE

TUBE ASSY. - oil drain, turbo-charger (Replaces A58902) (Used prior to eng. SN 2330155) (Order A62518)

1шт.

26

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube (See gasket kits, Figure 24)

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

29

A58893

HOSE

HOSE - drain to fitting, turbo-charger

1шт.

30

A58897

FITTING

FITTING - drain, turbo-charger (To block)

1шт.

31

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, drain, 1-3/16" to 1-3/4"

2шт.

35

A62479

TUBE

TUBE ASSY. - oil supply, turbo-charger, 1st used eng s/n 2326347, Includes: Ref. 36 and 37

1шт.

36

222-114

NUT,5/8"-24

NUT - for 3/8" tube, 1st used eng s/n 2326347

2шт.

37

222-154

SLEEVE,3/8" Tube

SLEEVE - for (Coded with red stripes), 1st used eng s/n 2326347 3/8" Tube

2шт.

38

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8" tube x 1/4" P.T., 1st used eng s/n 2326347

1шт.

39

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - 3/8" tube x 3/8" P.T., 90 degrees, 1st used eng s/n 2326347

1шт.

40

A58905

TUBE

TUBE - oil supply, turbo-charger (Order A62479), used prior to eng s/n 2326347

1шт.

41

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ELBOW ASSY. - 3/8" P.T., for 3/8" tube (To heat exchangers), used prior to eng s/n 2326347, Includes: Ref. 42 and 43

1шт.

42

222-104

SLEEVE,3/8" Tube

SLEEVE - for (Coded with green stripe), used prior to eng s/n 2326347 3/8" Tube

1шт.

43

222-114

NUT,5/8"-24

NUT - for 3/8" tube, used prior to eng s/n 2326347

1шт.

44

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" P.T., for 3/8" tube, used prior to eng s/n 2326347, Includes: Ref. 45 and 46

1шт.

45

222-104

SLEEVE,3/8" Tube

SLEEVE - for (Coded with green stripe), used prior to eng s/n 2326347 3/8" Tube

1шт.

46

222-114

NUT,5/8"-24

NUT - for 3/8" tube, used prior to eng s/n 2326347

1шт.
