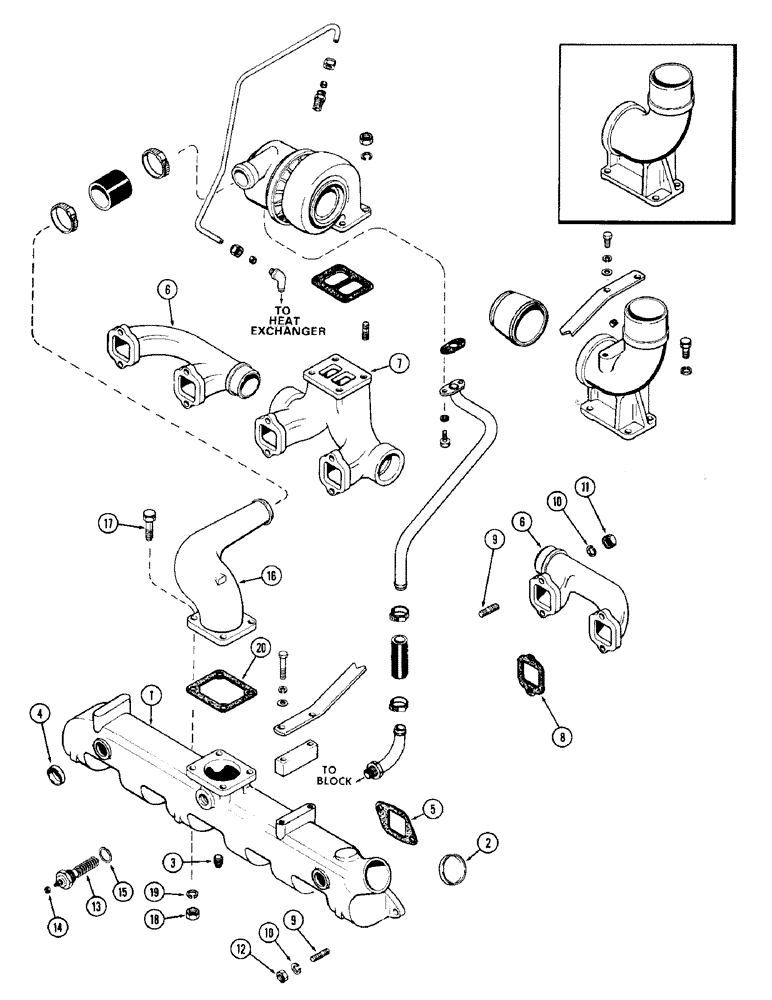

Запчасти Case IH 1470 (010) - MANIFOLD, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A62845

MANIFOLD

ASSY. - intake (Replaced A58660), Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type

1шт.

3

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - intake manifold (1/8" P.T. sq. hd.)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup

2шт.

5

A58662

MANIFOLD GASKET

- intake manifold (See gasket kits, Figure 24)

6шт.

6

A65917

MANIFOLD

- exhaust, ends (Replaces A58907)

2шт.

7

A76322

MANIFOLD

- exhaust, center (Replaces A58606)

1шт.

8

A58895

GASKET

- exhaust manifold (See gasket kits, Figure 24)

6шт.

9

A59077

STUD

- intake & exhaust manifold, 3/8" N.C. x 1-3/4"

16шт.

9

A35175

STUD

- exhaust manifold, 3/8" N.C. x 2-7/16"

8шт.

10

92-6

LOCK WASHER,3/8"

24шт.

11

131-903

NUT,3/8"-16

NUT - exhaust manifold (3/8" N.C., Seez-Proof)

12шт.

12

25-106

NUT,3/8"-16, G5

- intake manifold (3/8" N.C. hex.)

12шт.

13

A34278

HEATER

ASSY. - intake manifold (24V), Includes: Ref. 14

1шт.

14

129-503

NUT,1/4"-20, Brass

1шт.

15

A20916

MANIFOLD GASKET

GASKET - intake manifold heater

1шт.

16

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

18

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A58910

GASKET

- air intake elbow (See gasket kits, Figure 24)

1шт.
