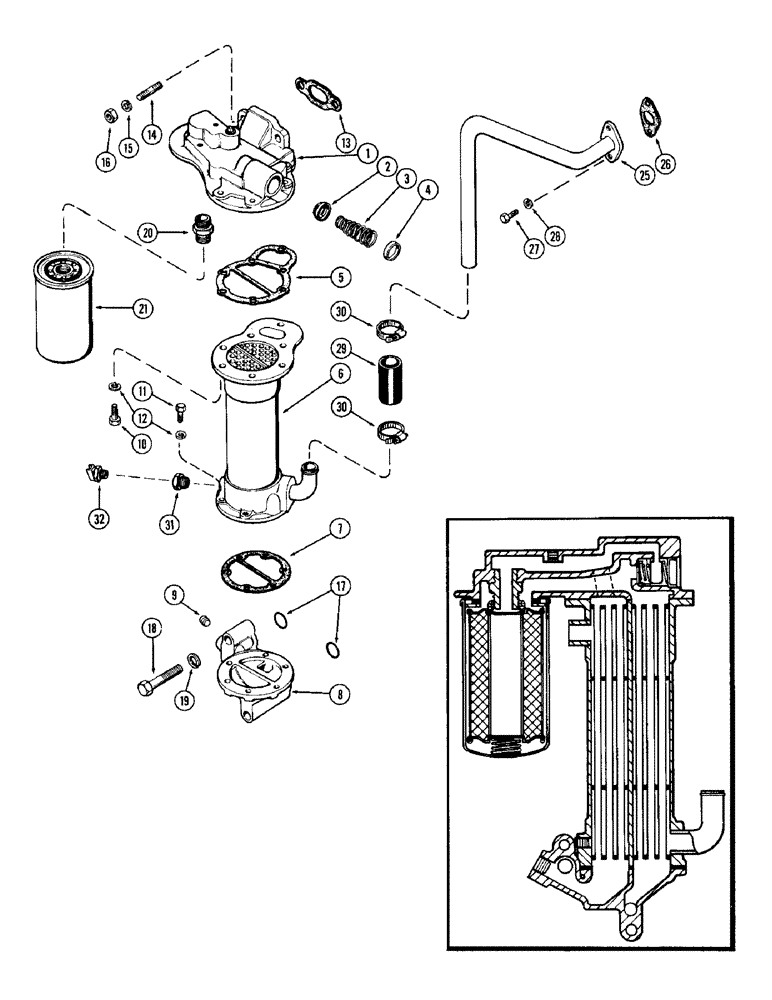

Запчасти Case IH 1470 (008) - OIL FILTER AND HEAT EXCHANGER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A58667

HEAD

HEAT ASSY. - heat exchanger & filter (Replaces A58912), Includes: Ref. 2 - 4

1шт.

2

A21090

VALVE

- oil filter relief

1шт.

3

A58669

SPRING

- relief valve (2-13/16" free length) (1st used eng. ser. no. 2306382)

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve (2-15/32" free length) (Used prior to eng. ser. no. 2306382)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-1/4" cup type

1шт.

5

A58676

GASKET

- head

1шт.

6

A58674

COOLER

EXCHANGER - heat unit

1шт.

7

A58675

GASKET

- base

1шт.

8

A64409

BASE

ASSY. - heat exchanger (Replaced A58673), Includes: Ref. 9

1шт.

9

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. socket head)

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

11

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- base, 3/8 x 1-3/8" N.C. hex.

5шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- base, 3/8 x 2-1/2" N.C. hex.

1шт.

12

92-6

LOCK WASHER,3/8"

13шт.

13

A58670

GASKET

-, Serial Range: head-block

1шт.

14

A50241

STUD

-, Serial Range: head-block

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

17

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - base to block (15/16 x 1-1/8 x 3/32")

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base to block, 1/2 x 3" N.C. hex.

1шт.

18

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Base to block Hex, 1/2"-13 x 4 1/2", G5

1шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

A59109

ADAPTER

ADAPTOR - oil filter to head (7/8" - 16 thread at filter end)

1шт.

21

A62423

FILTER, ENGINE OIL

FILTER - oil (7/8" - 16 thread) (Replaces A59110)

1шт.

25

A58677

TUBE

TUBZE - to water pump body

1шт.

26

A58680

OIL PAN GASKET SET

- tube to water pump body

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tube to pump Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

A58681

HOSE

- heat, Serial Range: exchanger-tube

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

31

221-53

BUSHING

- reducer, 3/8 x 1/4" P.T. (Use when needed on early production)

1шт.

32

A23656

COCK, DRAIN

VALVE - drain

1шт.
