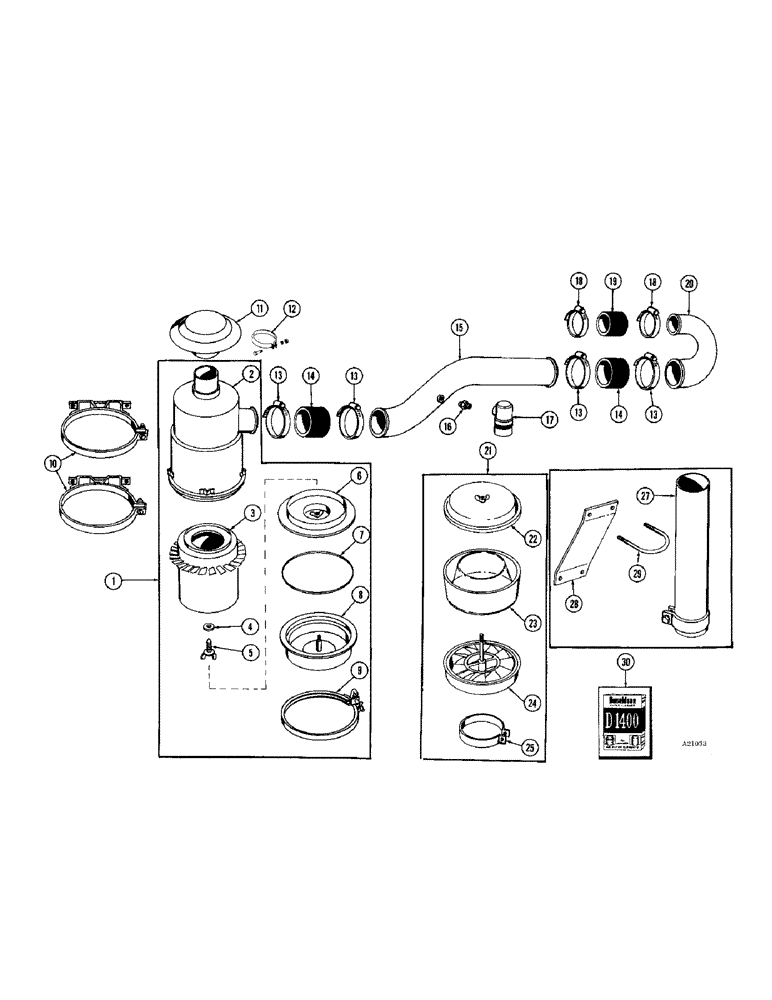

Запчасти Case IH 1470 (006) - DRY TYPE AIR CLEANER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

L13534

CLEANER ASSEMBLY - air, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

L30937

FILTER

ELEMENT ASSEMBLY - with gasket

1шт.

4

30942

GASKET - thumb screw

1шт.

5

L30941

SCREW ASSEMBLY - thumb, element retaining

1шт.

6

L30938

BAFFLE ASSEMBLY - cup

1шт.

7

L30943

GASKET

- cup

1шт.

8

L30939

COVER

CUP - air cleaner

1шт.

9

L30936

CLAMP

ASSEMBLY - cup retaining

1шт.

10

T38663

BAND ASSY. - air cleaner mounting

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

4шт.

11

L10659

CAP

- air cleaner, Includes: Ref. 12

1шт.

12

A25263

CLAMP ASSEMBLY - air cleaner cap

1шт.

13

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, 3-9/16" to 4-1/2"

4шт.

14

A56093

HOSE

- air cleaner tube (4" I.D. x 3-1/2")

2шт.

15

T38846

TUBE - air intake

1шт.

16

D36264

FITTING

- safety filter

1шт.

17

A17652

ELECTRICAL GAUGE

INDICATOR - air filter restriction

1шт.

18

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4")

2шт.

19

A23802

HOSE

- (3" I.D. x 3")

1шт.

20

T2172

TUBE - turbo charger inlet 3-4" OD x 8, 1.9" L

1шт.

21

L11824

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSEMBLY - air, Includes: Ref. 22 - 24

1шт.

22

L30669

COVER

- pre-cleaner

1шт.

23

L30671

HOUSING

BOWL - pre-cleaner (Clear plastic)

1шт.

24

L30672

SLEEVE

BAFFLE - pre-cleaner base

1шт.

25

A25263

CLAMP ASSEMBLY - (Includes bolt, L.W. & nut), pre-cleaner

1шт.

27

T39022

AIR STACK extension

1шт.

28

T39023

EXTENSION - air stack

1шт.

29

T31659

"U" BOLT - air stack extension

1шт.

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

LOCKNUT - 3/8" - 16 N.C., air stack extension

2шт.

30

A40910

CLEANER

- filter element, air stack extension

1шт.
