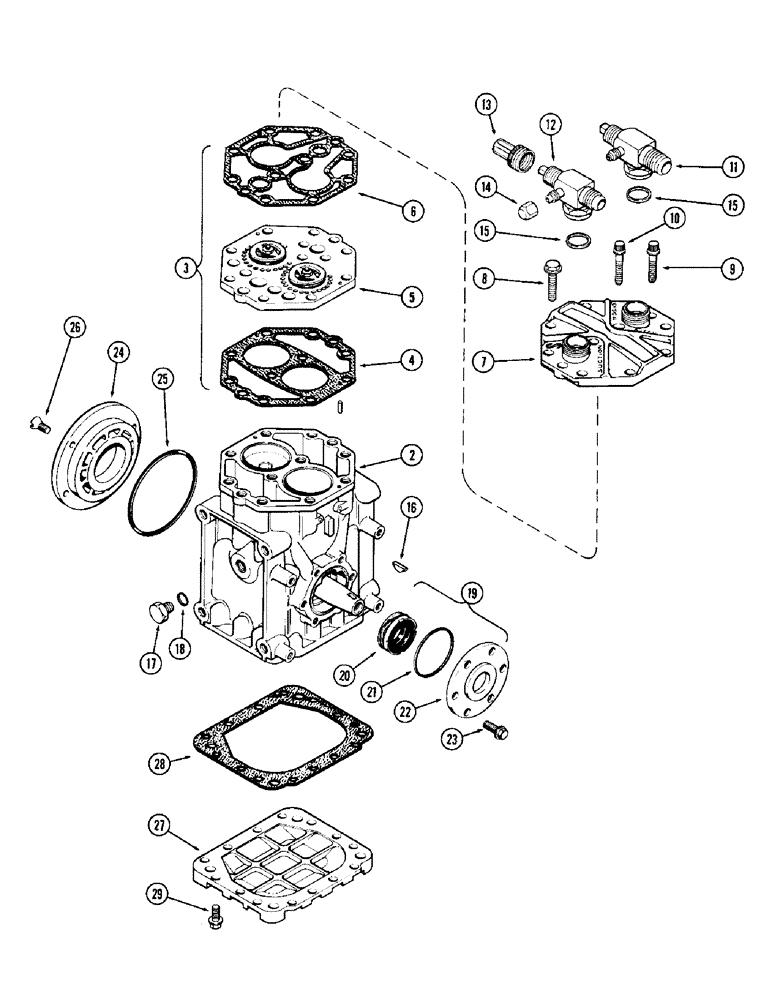

Запчасти Case IH 1470 (189G) - YORK COMPRESSOR (09) - CHASSIS

A42954

COMPRESSOR ASSY. - (York #R210-16979) (Order A64810), Includes: Ref. 2 - 29

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42945

SPARE PART VALVE PLATE KIT - (Order A42963), Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET plate to crankcase, see P/N A42964

1шт.

Part of Gasket Kit P/N A42950

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET plate to head, see P/N A42964

1шт.

Part of Gasket Kit P/N A42950

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT -, Serial Range: head-crankcase

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - cap, cyl. head outer (5/16 x 1-3/8" N.C. pt. Ferry hd.)

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - cap, cyl. head inner (5/16 x 1-17/32" N.C. 12 pt. Ferry hd.)

2шт.

11

A42936

VALVE

VALVE ASSY. - discharge (1/2" port)

1шт.

12

A42937

VALVE

VALVE ASSY. - suction (5/8" port)

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

221-981

CAP - valve stem

1шт.

15

A42938

GASKET

GASKET - roto-lock to cyl. head

2шт.

16

A42939

KEY

KEY - crankshaft (#6 Non-Rok)

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - oil plug, 3/8 x 1/2" N.C. hex.

2шт.

18

NSS

NOT SOLD SEPARAT

"O" RING oil plug, see P/N A42964

2шт.

Part of Gasket Kit P/N A42950

1шт.

19

A42946

KIT

SEAL KIT - front, crankshaft, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

"O" RING - (See A42964)

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42951

FLANGE BOLT

BOLT - seal plate (1/4 x 11/16" N.C. hex.)

6шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - rear, crankcase

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET rear housing, see P/N A42964

1шт.

Part of Gasket Kit P/N A42950

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - rear housing

6шт.

27

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET base plate, see P/N A42964

1шт.

Part of Gasket Kit P/N A42950

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

A42950

GASKET

GASKET KIT - complete overhaul, order A42964, Includes: Ref. 4, 6, 18, 25 and 28

1шт.
