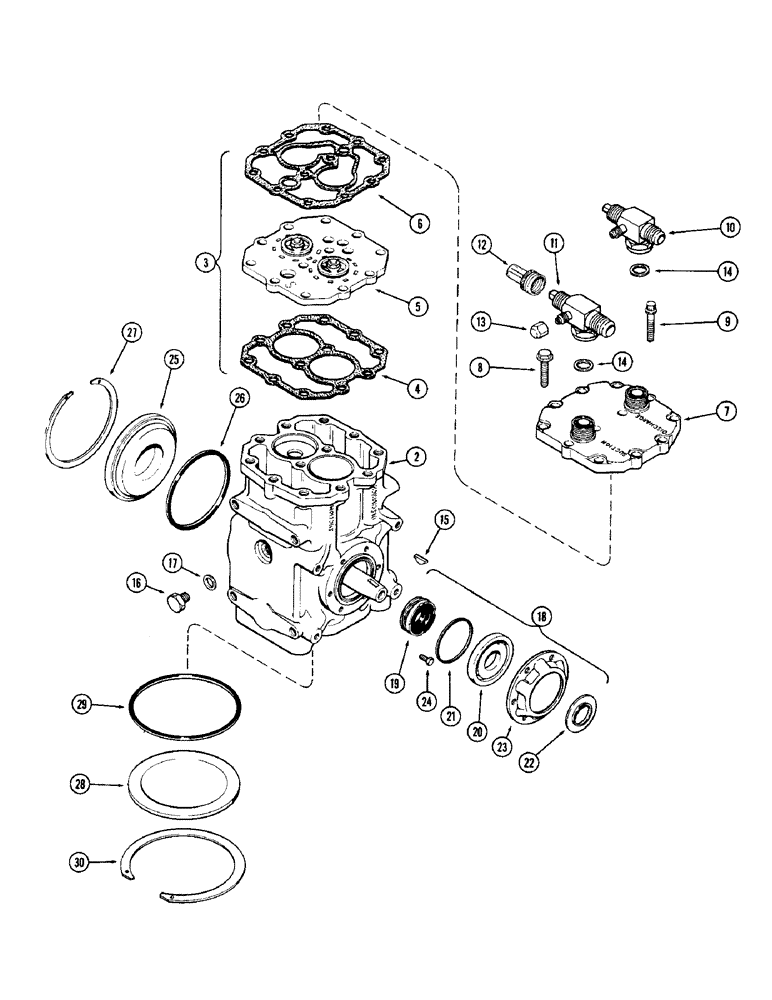

Запчасти Case IH 1470 (189E) - TECUMSEH COMPRESSOR (09) - CHASSIS

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh #HG1000) (Order A64810), Includes: Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42935

PLATE

VALVE PLATE KIT, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET plate to crankcase, see P/N A42943

1шт.

Part of Gasket Kit P/N A42943.

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET plate to cyl. head, see A42943

1шт.

Part of Gasket Kit P/N A42943.

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

114-125

BOLT - head to crankcase, 5/16 x 1-3/8" N.F. hex.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - cap, 12 pt. (5/16 x 1-3/8" N.C.)

4шт.

10

A42936

VALVE

VALVE ASSY. - discharge (1/2") port, Includes: Ref. 12 and 13

1шт.

11

A42937

VALVE

VALVE ASSY. - suction (5/8" port), Includes: Ref. 12 and 13

1шт.

12

A42944

CAP

CAP - sleeve, valve stem

1шт.

13

221-981

CAP - valve stem

1шт.

14

A42938

GASKET

GASKET - roto, Serial Range: lock-head

1шт.

15

A42939

KEY

KEY - crankshaft (#6 Non Rok)

1шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

BOLT - plug, filler & level, 3/8 x 1/2" N.F. hex.

2шт.

17

NSS

NOT SOLD SEPARAT

GASKET - plug (A42943)

2шт.

18

A42934

SEAL

SEAL KIT - frong crankshaft, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - outer seal

1шт.

21

NSS

NOT SOLD SEPARAT

"O" RING, see A42943

1шт.

Part of Gasket Kit P/N A42943.

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - inner seal

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - crankshaft seal

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - seal, Serial Range: plate-crankcase

6шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

26

NSS

NOT SOLD SEPARAT

"O" RING rear bearing, see A42943

1шт.

Part of Gasket Kit P/N A42943.

1шт.

27

NSS

NOT SOLD SEPARAT

RING - snap, rear bearing housing

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

29

NSS

NOT SOLD SEPARAT

"O" RING bottom plate, see P/N A42943

1шт.

Part of Gasket Kit P/N A42943.

1шт.

30

NSS

NOT SOLD SEPARAT

RING - snap, bottom plate

1шт.

A42943

SPARE PART complete overhaul, Includes: Ref. 4, 6, 21, 26 and 29

1шт.
