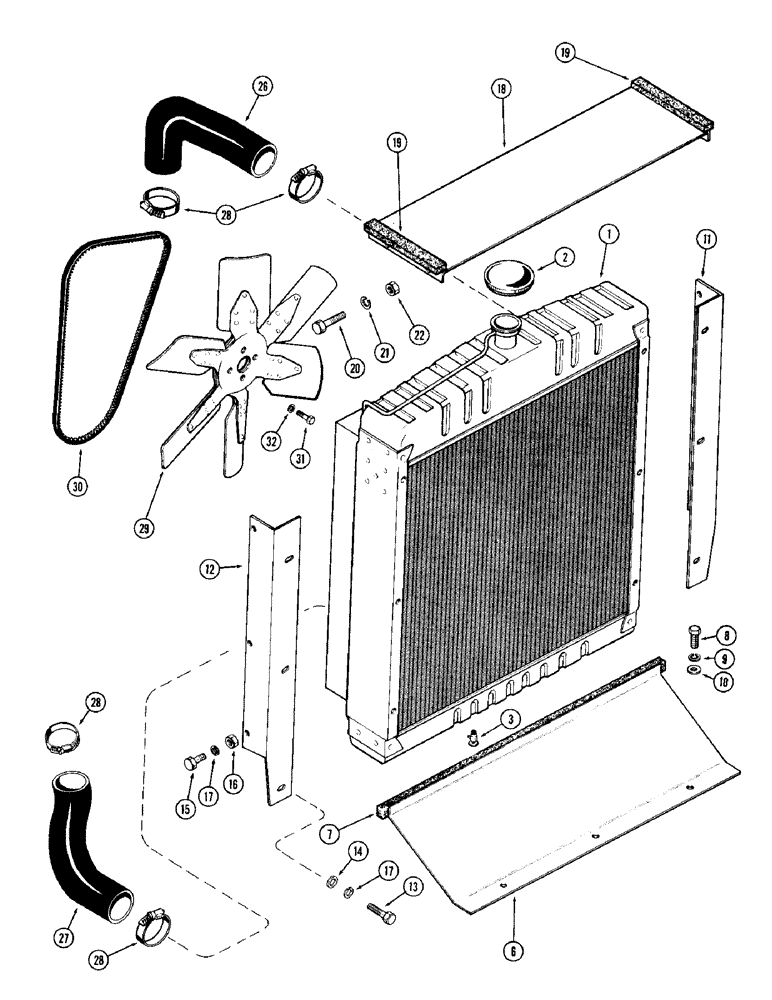

Запчасти Case IH 1470 (005A) - RADIATOR AND ATTACHING PARTS, (504BDT) DIESEL ENGINE (02) - ENGINE

1

T38657

PULLEY

RADIATOR - engine cooling

1шт.

2

D25826

CAP

- radiator filler (7 lb.)

1шт.

3

A23655

VALVE

DRAIN - radiator

1шт.

6

T38885

BAFFLE ASSY. - radiator, lower, Includes: Ref. 7

1шт.

7

T38886

SEAL - radiator baffle (Use adhesive)

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Baffle to rad. Hex, 5/16"-18 x 5/8", G5, Full Thd

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

10

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

3шт.

11

T38892

BRACKET - radiator, left hand

1шт.

12

T38893

BRACKET - radiator, right hand

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- brkt. to rad., 3/8 x 1-1/2" N.C. hex.

6шт.

14

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

6шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- brkt., side, 3/8 x 3/4" N.C. hex.

6шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

18

T38888

BAFFLE ASSY. - radiator, upper, Includes: Ref. 19

1шт.

19

T38887

SEAL - radiator (Use adhesive)

2шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Baffle to rad. Hex, 3/8"-16 x 1 1/2", G5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

T38641

RADIATOR HOSE,2.50" ID x 10.70", SAE 20R4 CLASS SC

2.50" mm ID X 10.70", SAE 20R4 CLASS SC, Upper

1шт.

27

T38630

RADIATOR HOSE,2.62" ID x 9.20", SAE 20R4 CLASS SC

2.62" mm ID X 9.20", SAE 20R4 CLASS SC, Lower

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

radiator #36, 1.81/2.75 Type F Worm

4шт.

29

A56087

FAN

- radiator, suction type

1шт.

30

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt, Fan pulley, Matched set of 2 0.69" W x 65.75" L

1шт.

31

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
