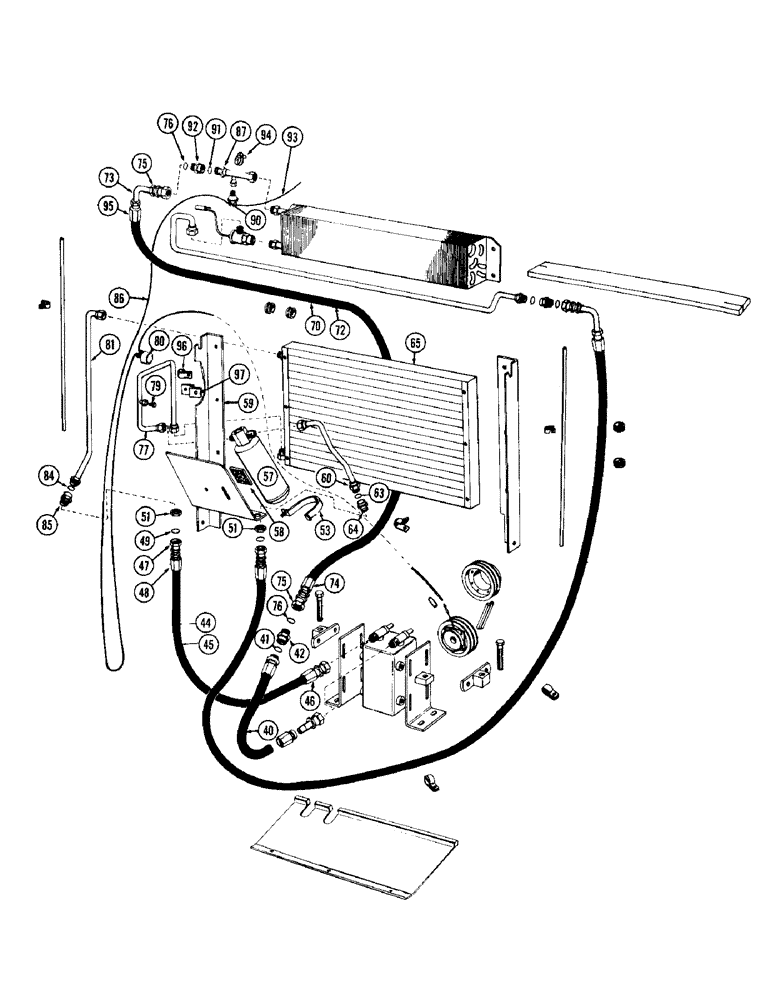

Запчасти Case IH 1470 (189C) - AIR CONDITIONER ASSEMBLY (09) - CHASSIS

40

T50177

HOSE - 13-1/4" (Continued from Figure 189A)

1шт.

41

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

1шт.

42

T39846

COUPLING HALF - male

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

44

T39868

HOSE ASSEMBLY - discharge, Includes: Ref. 44 - 49

1шт.

45

T39870

HOSE - 25"

1шт.

46

T39869

HOSE END - compressor

1шт.

47

T39884

COUPLING, BREAK AWAY

COUPLING HALF - female

1шт.

48

T5024

HOSE END

1шт.

49

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

1шт.

NSS

NOT SOLD SEPARAT

PLUG - dust

1шт.

51

T39851

NUT - special jam

2шт.

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

2шт.

53

T39840

STRAP

1шт.

195-518

WASHER,1/4", SAE

- plain, 1/4" Z.P.

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

57

T39837

FILTER

1шт.

58

T39866

GASKET - filter

1шт.

59

T39838

ANGLE - mounting, R.H.

1шт.

60

T39849

TUBE GROUP ASSEMBLY, Includes: Ref. 63 and 64

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

TUBE

1шт.

63

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

1шт.

64

T39846

COUPLING HALF - male

1шт.

65

T39836

CONDENSER CORE

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

6шт.

195-518

WASHER,1/4", SAE

- plain, 1/4" Z.P.

6шт.

195-105

WASHER,7/16"

- plain, Z.P. 7/16"

6шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

70

T39882

HOSE GROUP ASSEMBLY - suction, Includes: Ref. 72 - 76

1шт.

NSS

NOT SOLD SEPARAT

PLUG

2шт.

72

T39885

HOSE - 175-1/2"

1шт.

73

T39886

ELBOW ASSEMBLY

1шт.

74

T39883

HOSE END

1шт.

75

T39884

COUPLING, BREAK AWAY

COUPLING HALF - female

2шт.

76

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

2шт.

77

T39841

TUBE GROUP ASSEMBLY, Includes: Ref. 79

1шт.

NSS

NOT SOLD SEPARAT

TUBE

1шт.

79

T39843

FUSABLE PLUG

1шт.

80

T39844

THERMOSTAT - overheat

1шт.

81

T39845

TUBE GROUP ASSEMBLY, Includes: Ref. 84 and 85 16.44, 2.96" L

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

TUBE

1шт.

84

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

1шт.

85

T39846

COUPLING HALF - male

1шт.

86

T39877

WIRE ASSEMBLY - 200" freon, Serial Range: switch-thermostat

1шт.

87

T39856

TUBE GROUP ASSEMBLY, Includes: Ref. 90 - 92

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

TUBE

1шт.

90

A75086

SWITCH

- pressure freon loss (Replaces T39857)

1шт.

91

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

1шт.

92

T39846

COUPLING HALF - male

1шт.

93

T39876

BEARING ASSY

WIRE ASSY. - freon loss switch to thermostat 24"

1шт.

94

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - tube

1шт.

95

T50246

HOSE END

1шт.

96

T51491

BRACKET - clamp

1шт.

187-834

SCREW - #10 x 1/2" self-tapping, pan head

1шт.
