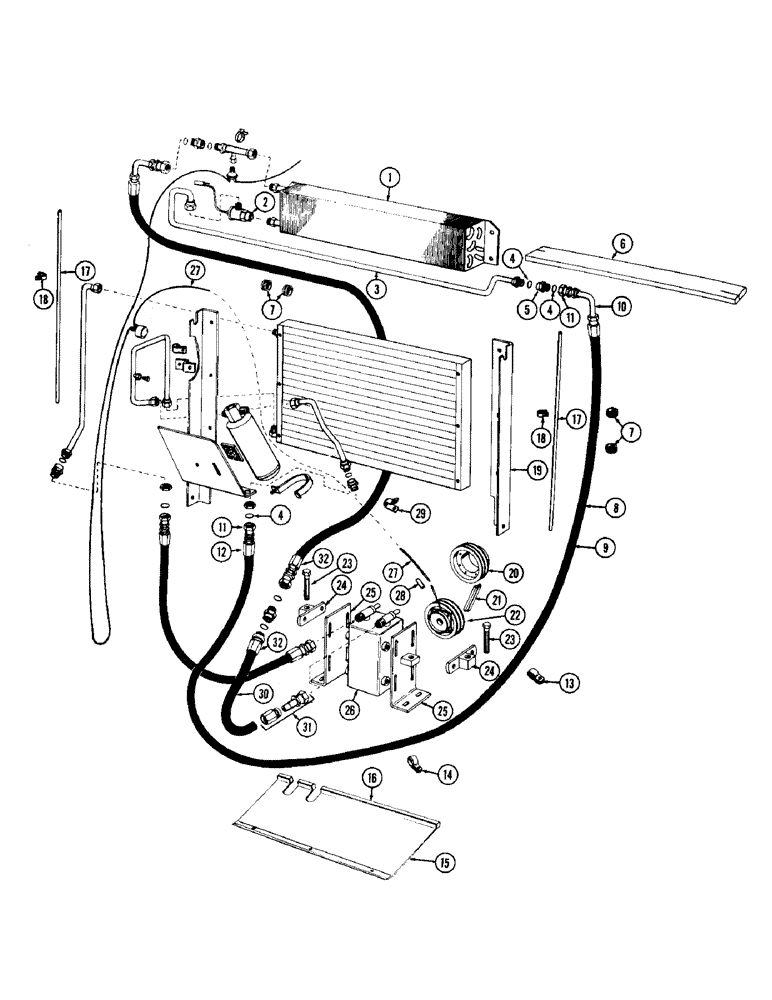

Запчасти Case IH 1470 (189A) - AIR CONDITIONER ASSEMBLY (09) - CHASSIS

1

T39854

SPARE PART EVAPORATOR

1шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

4шт.

195-518

WASHER,1/4", SAE

WASHER - 1/4" Z.P.

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

4шт.

2

T39855

VALVE

VALVE - expansion

1шт.

3

T39859

SPARE PART TUBE GROUP ASSEMBLY, Includes: Ref. 4 and 5

1шт.

NSS

NOT SOLD SEPARAT

TUBE

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

4

T39847

O-RING,1.78mm Thk x 17mm ID

"O" RING

1шт.

5

T39846

SPARE PART COUPLING HALF - male

1шт.

6

T39887

SPARE PART FOAM - drip pan

1шт.

7

T30339

SPARE PART GROMMET

4шт.

8

T39878

SPARE PART HOSE GROUP ASSEMBLY, Includes: Ref. 9 - 12

1шт.

9

T39879

SPARE PART HOSE - 193-3/4"

1шт.

10

T39881

SPARE PART ELBOW

1шт.

11

T39884

COUPLING, BREAK AWAY

COUPLING HALF - female

2шт.

12

T39880

SPARE PART HOSE - end

1шт.

NSS

NOT SOLD SEPARAT

PLUG

2шт.

13

T50103

CLAMP

CLAMP - hose

1шт.

14

T50104

CLAMP

CLAMP - hose

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

T38885

SPARE PART BAFFLE ASSEMBLY - radiator, lower, Includes: Ref. 16

1шт.

16

T38886

SEAL - radiator baffle (Use adhesive)

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT, , Baffle to rod Hex, 5/16"-18 x 5/8", G5, Full Thd

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

195-103

WASHER,5/16"

WASHER - 3/8" x 7/8" x 3/32"

3шт.

17

T39888

SPARE PART HOSE - clear vinyl

2шт.

18

A28019

SPARE PART CLAMP - vinyl hose

2шт.

187-1011

SPARE PART SCREW - 1/4" x 3/8" pan head mach. Z.P.

2шт.

19

T39839

SPARE PART ANGLE - mounting, L.H.

1шт.

20

T39994

PULLEY

PULLEY - compressor drive

1шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

21

T39995

SET OF 2 BELTS,0.50" W x 40.10" L

SPARE PART V- Belt, A38 matched set

1шт.

22

T39862

SPARE PART CLUTCH - magnetic (24 volt)

1шт.

23

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

BOLT - 1/2" x 4" N.C. hex. w/3-1/2" thread Z.P.

2шт.

24

T39999

SPARE PART STRAP - tightener

2шт.

25

T39996

SPARE PART BRACKET - mounting, compressor

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

195-106

WASHER,1/2"

WASHER - plain, Z.P. 1/2"

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

195-104

WASHER,3/8"

WASHER - plain, Z.P. 3/8"

4шт.

26

A64810

AIRCOND. COMPRESSOR

COMPRESSOR - (Repairs Figure 189I) (Replaced A64870)

1шт.

26

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

26

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

26

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

26

A61148

COMPRESSOR

COMPRESSOR - (Repairs Figures 189E & 189G) (Order A64810)

1шт.

27

T39863

SPARE PART WIRE ASSEMBLY - thermostat to magnetic clutch

1шт.

28

T39874

CONNECTOR - wire

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLAMP - hose (Hardware same as Ref. 14)

1шт.

30

T39864

SPARE PART HOSE GROUP ASSEMBLY, Includes: Ref. 31 - 42

1шт.

31

T39865

SPARE PART HOSE END

1шт.

32

T39883

HOSE END

1шт.
