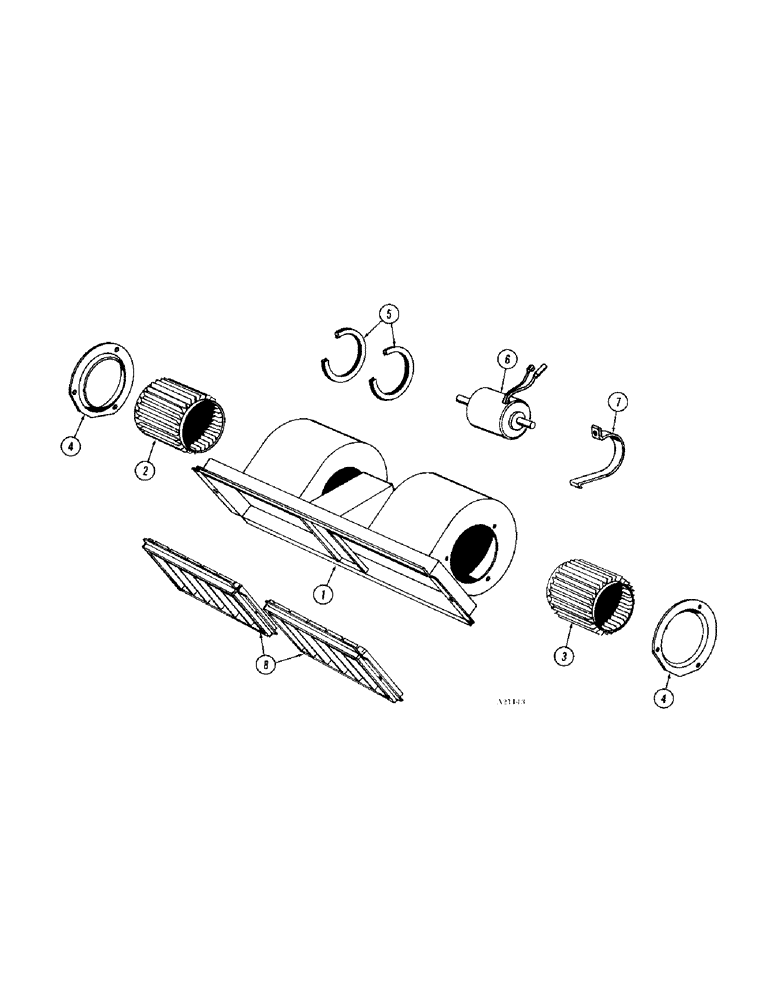

Запчасти Case IH 1470 (186) - BLOWER GROUP ASSEMBLY, CAB (09) - CHASSIS

T39513

BLOWER GROUP ASSY., Includes: Ref. 1 - 7

1шт.

1

T39512

BLOWER HOUSING

1шт.

175-410

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- machine, 5/16"-18 x 3/4"

2шт.

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

2

T39469

WHEEL - L.H.

1шт.

3

T39470

WHEEL - R.H.

1шт.

4

T39461

RING - inlet

2шт.

187-812

SCREW - #6 sheet metal

6шт.

5

T39488

GASKET

2шт.

6

A44302

MOTOR - 24 volt (Replaces T39478)

1шт.

7

T39468

STRAP - motor mounting

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - #10 sheet metal

1шт.

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

8

T39471

DEFLECTOR - air

2шт.
