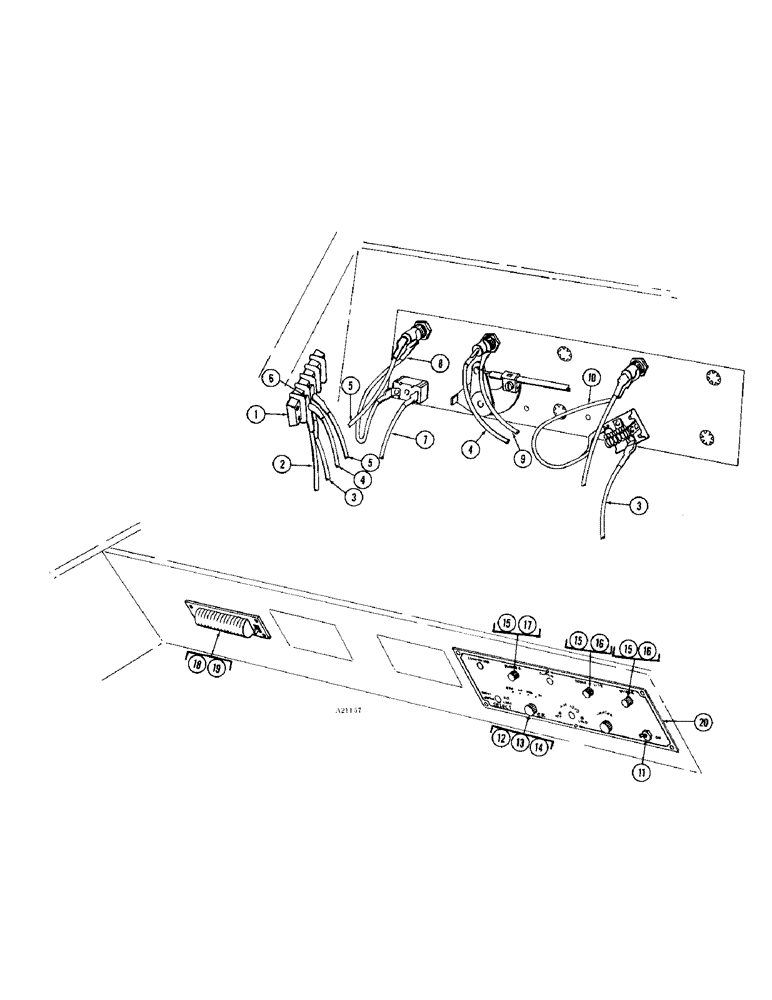

Запчасти Case IH 1470 (184) - CONTROL PANEL, CAB (09) - CHASSIS

1

T39485

TERMINAL BLOCK - panel assembly

1шт.

187-825

SCREW - sheet metal #8 x 1/2" pan hd.

2шт.

2

T39529

WIRE ASSEMBLY - main lead, (Brown)

1шт.

3

T39482

WIRE ASSEMBLY - terminal block to blower switch, (Brown)

1шт.

4

T39531

CYLINDER END CAP

WIRE ASSY. - terminal block to dome light fuse (White)

1шт.

5

T39530

WIRE ASSY. - terminal block to wiper fuse (Yellow)

1шт.

6

T39486

JUMPER - terminal block

2шт.

7

T39491

WIRE ASSY. - wiper switch to wiper (Yellow)

1шт.

8

T39537

JUMPER WIRE ASSY. - fuse to wiper switch (Yellow)

1шт.

9

T39532

WIRE ASSY. - dome light fuse to dome light (White)

1шт.

10

T39538

JUMPER WIRE ASSY. - fuse to blower switch (Dark blue)

1шт.

11

T39477

SWITCH

- toggle, wiper

1шт.

12

A43485

SWITCH

- resistor, blower

1шт.

13

A42578

KNOB

- resistor switch (Replaced T39313)

1шт.

14

T39314

NUTS - jam

2шт.

15

A22874

HOLDER

FUSE HOLDER - wiper, blower and dome light

3шт.

16

223-6

FUSE,6 Amp, Type 3AG

- wiper and dome light (6 amp)

2шт.

17

223-10

FUSE,10 Amp, Type 3AG

- blower (10 amp)

1шт.

18

T39464

DOME LIGHT ASSY., Includes: Ref. 19

1шт.

19

T39535

BULB

- dome light (24 volt) GE1251

1шт.

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

- mach., #6-32 x 1/2" flat head

4шт.

195-507

WASHER,#6

- flat, #6

4шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

129-15

NUT,#6-32

4шт.

20

T39521

PLATE - control panel, cab

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - sheet metal, #10 x 1/2" flat head

6шт.
