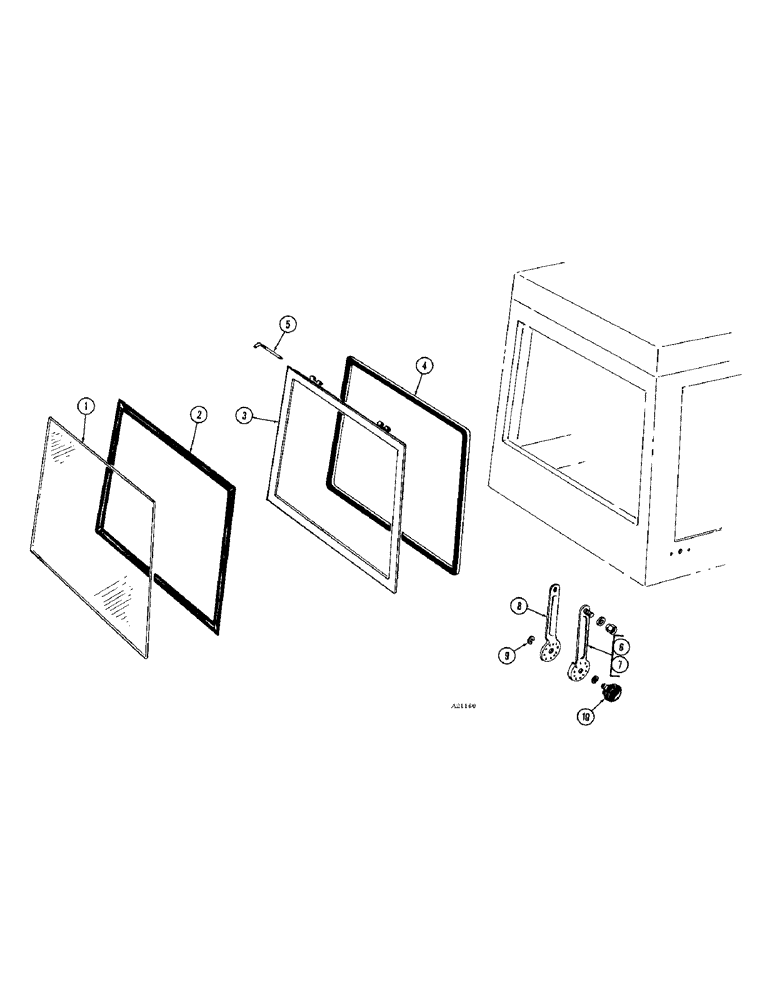

Запчасти Case IH 1470 (182) - REAR SWING OUT WINDOW (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB ASSEMBLY - complete, Includes: Ref. 1 - 10

1шт.

T39460

WINDOW - rear, cpt., Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

GLASS - safety, rear window, tinted (Refer to Figure 190 for glass dimension)

1шт.

2

T39454

WEATHER STRIP - rear window (13.4 ft.), Serial Range: (Cut-size)

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME - rear window

1шт.

4

T39456

GASKET - rear window frame (14 ft.), Serial Range: (Cut-size)

1шт.

5

T39533

PIN - hinge, knurled, rear window

2шт.

NSS

NOT SOLD SEPARAT

ARM ASSEMBLY - L.H., Includes: Ref. 6 - 10

1шт.

6

L30140

ARM - L.H. female

1шт.

8

T39517

ARM - L.H. & R.H. male

1шт.

9

T39518

SNAP RING,#25, Ext

RING - lock

1шт.

10

T39484

KNOB

- 3/8 - 16 stud

1шт.

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16"

1шт.

195-104

WASHER,3/8"

- 7/16 x 1 x 9/64"

1шт.

131-52

NUT,3/8"-16, GC

LOCKNUT - 3/8" - 16

1шт.

T39505

ARM ASSEMBLY - R.H., Includes: Ref. 7 - 10

1шт.

7

L30142

ARM - R.H. female

1шт.

8

T39517

ARM - R.H. and L.H. male

1шт.

9

T39518

SNAP RING,#25, Ext

RING - lock

1шт.

10

T39484

KNOB

- 3/8-16 stud

1шт.

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16"

1шт.

195-104

WASHER,3/8"

- 7/16 x 1 x 9/64"

1шт.

131-52

NUT,3/8"-16, GC

LOCKNUT - 3/8 - 16

1шт.

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- machine, 1/4-20 x 1/2" truss head

2шт.
