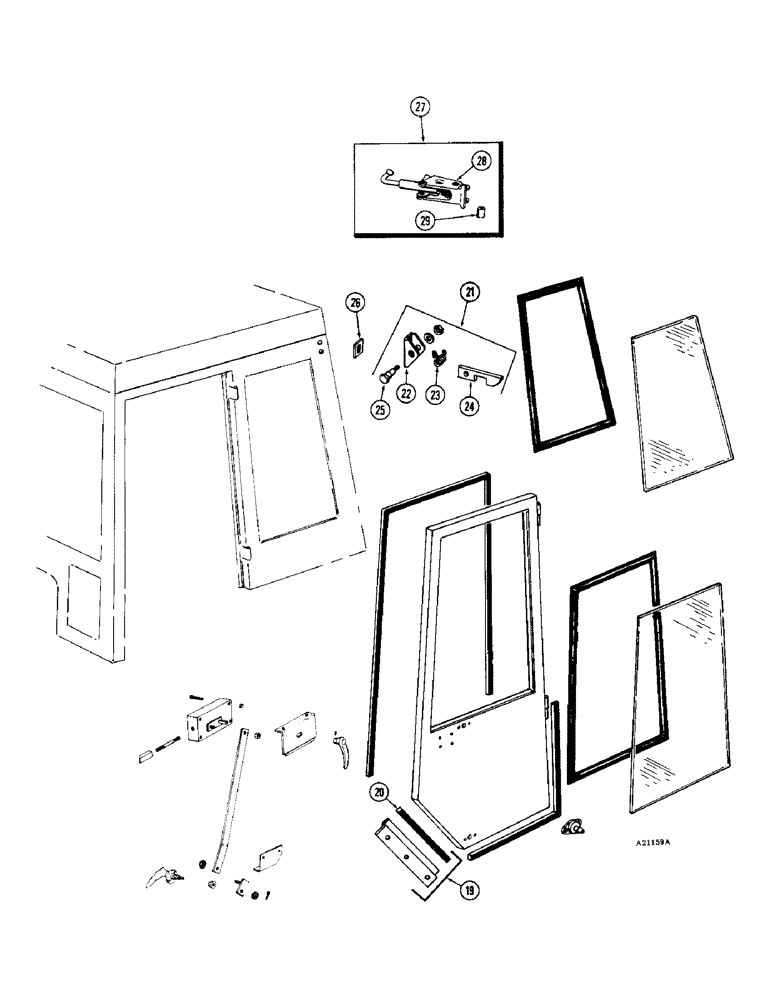

Запчасти Case IH 1470 (181A) - CAB ASSEMBLY, LEFT HAND SIDE (09) - CHASSIS

19

T39497

ANGLE - door sealing, L.H., Includes: Ref. 20

1шт.

20

T39519

GASKET - (1.2 ft.), Serial Range: (Cut-size)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Includes: Ref. 21 - 25 3/8"-16, G5

3шт.

21

T51488

LATCH - door assembly, Includes: Ref. 22 - 25

1шт.

22

L30098

BRACKET - mounting

1шт.

23

L30101

SPRING - latch

1шт.

24

T51487

STRAP - latch

1шт.

25

L30100

PIN - latch

1шт.

195-518

WASHER,1/4", SAE

- plain, 1/4"

1шт.

131-506

NUT,1/4-20

LOCKNUT - 1/4" N.C. hex.

1шт.

26

T51486

PLATE - adjustment

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- machine, 1/4" x 1/2" N.C. hex. rd. hd. Z.P.

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-518

WASHER,1/4", SAE

- plain, 1/4" Z.P.

2шт.

27

T63036

KIT - door latch, extra, for adverse conditions, Includes: Ref. 28 and 29

1шт.

28

L10473

LATCH

- tension

2шт.

187-1117

SCREW - #10-24 x 3/8" self-tapping

2шт.

29

A29371

SPACER - fender mounting only

1шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

195-524

WASHER,5/16"

- plain

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

192-102

WASHER

NUT - 5/16" N.C. hex.

2шт.
