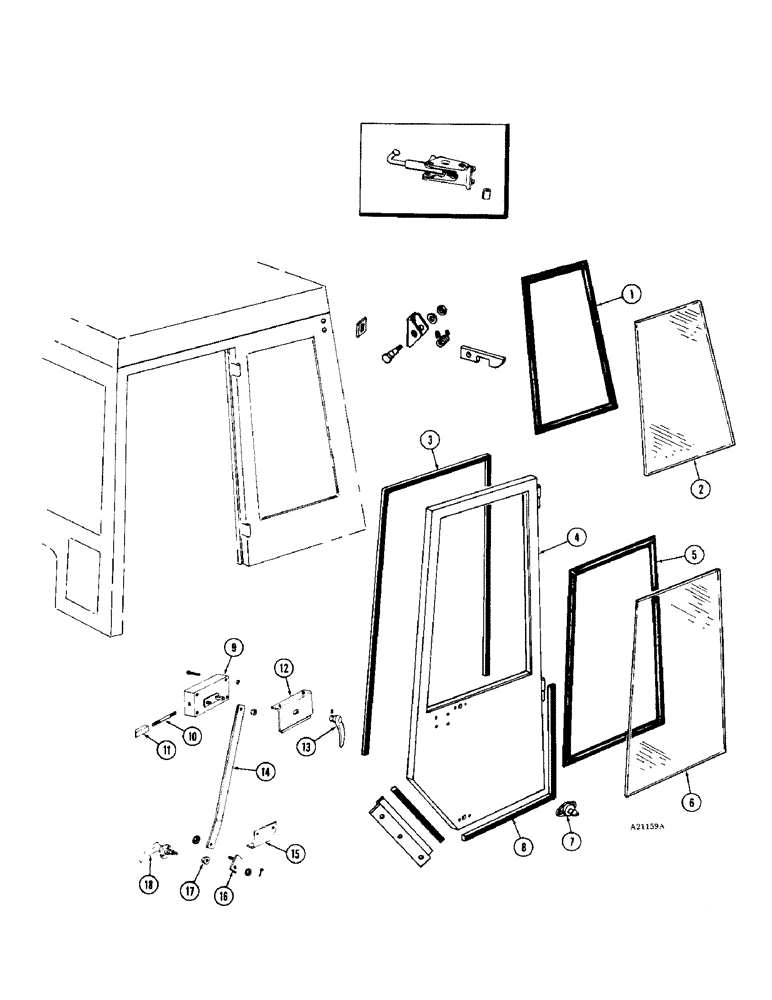

Запчасти Case IH 1470 (180) - CAB ASSEMBLY (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB ASSEMBLY - complete, Includes: Ref. 1 - 18

1шт.

1

T39459

WEATHER STRIP - side glass panel (11 ft.), Serial Range: (Cut-size)

1шт.

2

NSS

NOT SOLD SEPARAT

GLASS - safety, side panel, tinted (Refer to Figure 190 for glass dimension)

1шт.

3

T39520

GASKET - door (20.5 ft.), Serial Range: (Cut-size)

1шт.

T39514

DOOR ASSEMBLY - cpt. L.H., Includes: Ref. 4 - 18

1шт.

4

NSS

NOT SOLD SEPARAT

DOOR FRAME

1шт.

5

T39459

WEATHER STRIP - door glass (11ft.), Serial Range: (Cut-size)

1шт.

6

NSS

NOT SOLD SEPARAT

GLASS - safety, door, tinted (Refer to Figure 190 for glass dimension)

1шт.

7

T39455

PLUNGER

- door

1шт.

171-211

X

SCREW - machine, 1/4-20 x 1/2" Z.P.

2шт.

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

8

T39475

GASKET - door, lower (4.0 ft.), Serial Range: (Cut-size)

1шт.

9

T39451

LATCH ASSY.

- door handle

1шт.

174-215

SCREW,Sl Rnd Hd, #10 - 32 x 1"

- latch assy., #10-32 x 1" U.N.F. Z.P.

4шт.

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - latch assy., #10-32 U.N.F. Z.P.

4шт.

131-52

NUT,3/8"-16, GC

LOCKNUT - 3/8"-16

1шт.

10

T39487

ROD

- door latch

1шт.

11

T39467

STRIKER BOLT - door latch

1шт.

12

T39494

COVER - door latch

1шт.

187-328

SCREW - sheet metal, #10-12 x .38

2шт.

13

T39483

HANDLE - door, top

1шт.

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

- headless, #10-24 x 1/4" U.N.C.

1шт.

L35471

KEY - door

1шт.

14

T39495

STRAP - connecting

1шт.

15

T39458

COVER - handle, lower

1шт.

187-328

SCREW - sheet metal, #10-12 x .38

2шт.

16

T39450

STRAP - handle assy., lower

1шт.

131-52

NUT,3/8"-16, GC

LOCKNUT - 3/8"-16

1шт.

17

T39479

BUSHING - door handle, lower

1шт.

18

T39489

HANDLE ASSY. - lower

1шт.

195-103

WASHER,5/16"

- plain, 3/8" I.D. x 7/8" O.D.

1шт.

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
