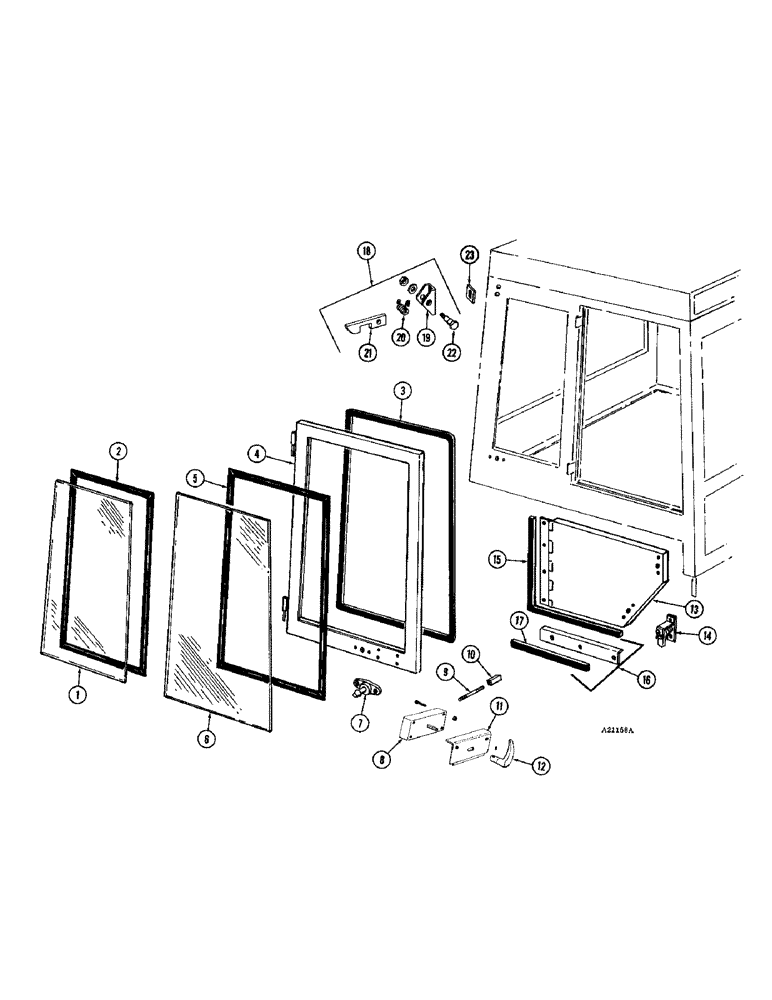

Запчасти Case IH 1470 (178) - CAB ASSEMBLY, RIGHT HAND SIDE (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB ASSEMBLY - complete, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

GLASS - safety & side panel, tinted (Refer to Figure 190 for glass dimension)

1шт.

2

T39459

WEATHER STRIP - side glass panel (11 ft.), Serial Range: (Cut-size)

1шт.

3

T39520

GASKET - door (20.5 ft.), Serial Range: (Cut-size)

1шт.

T39510

DOOR ASSEMBLY - cpt. R.H., Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

DOOR FRAME

1шт.

5

T39459

WEATHER STRIP - door glass (11ft.), Serial Range: (Cut-size)

1шт.

6

NSS

NOT SOLD SEPARAT

GLASS - safety door, tinted (Refer to figure 190 for glass dimension)

1шт.

7

T39455

PLUNGER

- door

1шт.

171-211

X

SCREW - machine, 1/4 - 20 x 1/2" Z.P.

2шт.

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

8

T39493

LATCH ASSEMBLY - door

1шт.

174-215

SCREW,Sl Rnd Hd, #10 - 32 x 1"

- latch assembly, #10-32 x 1" UNF. Z.P.

1шт.

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - latch assembly screw #10-32 UNF. Z.P.

4шт.

9

T39487

ROD

- door latch

1шт.

10

T39467

STRIKER BOLT - door latch

1шт.

11

T39539

COVER - door latch

1шт.

187-328

SCREW - sheet metal #10-12 x .38

2шт.

12

T39483

HANDLE - door

1шт.

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

- headless #10-24 x 1/4" U.N.C.

1шт.

T39473

PANEL - lower closure, cpt., Includes: Ref. 13 - 15

1шт.

13

T39474

PANEL & HINGE ASSEMBLY

1шт.

14

T39476

FASTENER - lower panel

2шт.

175-417

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

- machine, 1/4"-20 x 1" U.N.C. Z.P.

4шт.

195-102

WASHER,1/4"

- 5/16" I.D. x 3/4" O.D.

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

29-101

IGNITION SWITCH

NUT - 1/4" N.C. hex. Z.P.

4шт.

15

T39475

WEATHER STRIP - lower panel (3.7 ft.), Serial Range: (Cut-size)

1шт.

187-1011

SCREW - machine, 1/4" x 3/8" pan hd. Z.P.

4шт.

16

T39496

ANGLE - door sealing R.H., Includes: Ref. 17

1шт.

17

T39519

GASKET - (1.2 ft.), Serial Range: (Cut-size)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Includes: Ref. 18 - 23 3/8"-16, G5

3шт.

18

T51488

LATCH - door assembly, Includes: Ref. 19 - 22

1шт.

19

L30098

BRACKET - mounting

1шт.

20

L30101

SPRING - latch

1шт.

21

T51487

STRAP - latch

1шт.

22

L30100

PIN - latch

1шт.

195-518

WASHER,1/4", SAE

- plain, 1/4"

1шт.

131-506

NUT,1/4-20

LOCKNUT - 1/4" N.C. hex.

1шт.

23

T51486

PLATE - adjustment

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- machine, 1/4" x 1/2" N.C. hex. rd. hd. Z.P.

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-518

WASHER,1/4", SAE

- plain, 1/4" Z.P.

2шт.
