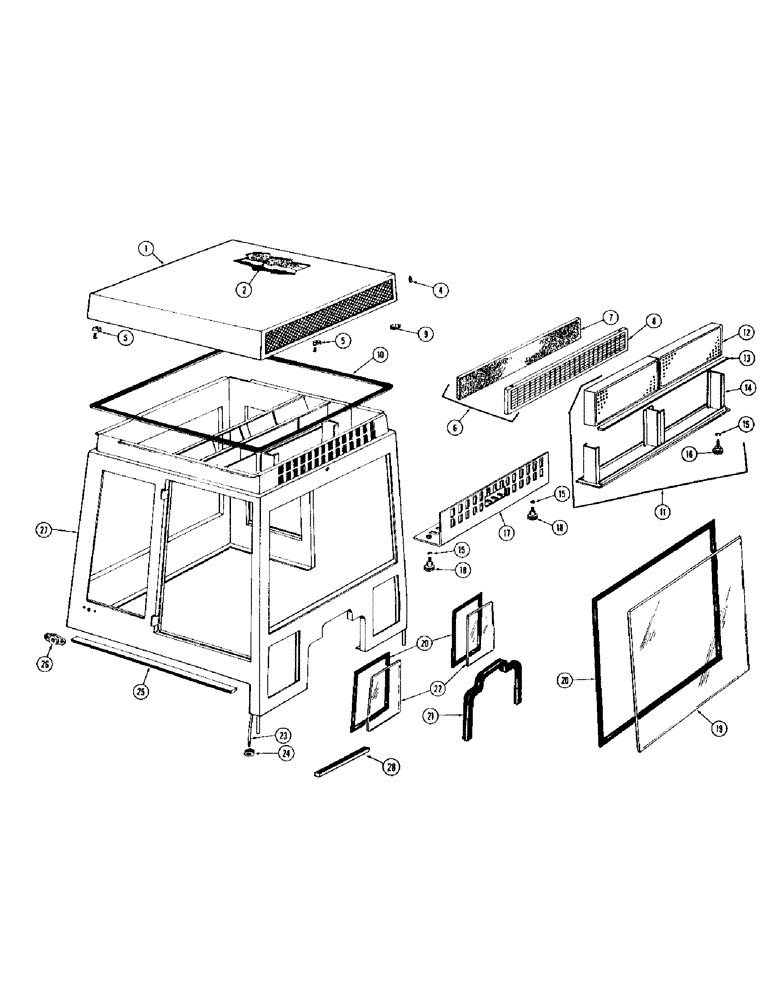

Запчасти Case IH 1470 (176) - CAB FRAME AND SUB-ASSEMBLIES (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
CAB ASSEMBLY - complete, Includes: Ref. 1 - 27
1шт.
T39511
ROOF GROUP ASSY., Includes: Ref. 1 - 8
1шт.
1
NSS
NOT SOLD SEPARAT
ROOF
1шт.
2
T39446
HEADLINER - roof
1шт.
4
T39755
SLIP PIN - retainer
2шт.
5
T39516
NUT - cage
4шт.
6
T39504
GRILLE
GROUP ASSY., Includes: Ref. 7 and 8
1шт.
7
T39447
FOAM
- grille
1шт.
8
T39503
GRILLE
1шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
9
205-48
PLUG
BUTTON - plug
4шт.
10
T39453
GASKET - roof
1шт.
11
T39507
TRAY GROUP ASSY. - filter, Includes: Ref. 12 - 16
1шт.
12
T39515
FILTER
2шт.
13
T39457
GASLET - (4 ft.), Serial Range: (Cut-size)
1шт.
14
T39509
TRAY - filter
1шт.
15
T39465
RING - snap
2шт.
16
T39492
KNOB
2шт.
17
T39490
PANEL - sliding, air select
1шт.
15
T39465
RING - snap, sliding panel
2шт.
18
T39466
KNOB - sliding panel
2шт.
19
NSS
NOT SOLD SEPARAT
GLASS - safety, windshield, tinter (Ref. to Figure 190 for glass dimension)
1шт.
20
T39459
WEATHERSTRIP - windshield (11 ft.), Serial Range: (Cut-size)
2шт.
21
T39452
GASKET - cowl (4 ft.), Serial Range: (Cut-size)
1шт.
22
NSS
NOT SOLD SEPARAT
GLASS - safety, lower front, tinted (Ref. to Figure 190 for glass dimension)
2шт.
23
T39529
WIRE ASSY. - main lead, cab control panel
1шт.
24
A31076
GROMMET
- wire assy., main lead
1шт.
25
T39271
GASKET - base, cab (15 ft. roll), Serial Range: (Cut-size)
1шт.
26
T39480
SOCKET - door plunger
2шт.
73-416
BOLT (MACHINE),Flat, 1/4"
SCREW - machine, 1/4" x 1" flat head
4шт.
193-52
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, LOCK, Ext Csk Tooth, 1/4"
4шт.
27
NSS
NOT SOLD SEPARAT
FRAME - cab
1шт.
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
6шт.
195-106
WASHER,1/2"
- 9/16 x 1-3/8 x 7/64"
14шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
6шт.
28
A75054
STRIP - floor seal (Black neoprene sponge)
2шт.
Выбрано товаров: 38
